Measurement¤

Introduction¤

Any data ingested in or processed by Paricia takes de form of either Measurement or Report objects. Contrary to other elements of Paricia, these are not meant to be created manually via de Admin pages, but rather in the background when importing or when validating data.

Do not edit measurements in the Admin

Directly editing measurements in the Admin pages is discouraged since it can result in inconsistencies between raw, validated and reported data. Use the validation tools instead. See the validation section

In both cases, they represent a single data point in a time series, corresponding to a specific Variable at a specific Station. Only data corresponding to public stations will be available for checking in the case of anonymous users, whereas registered users could also check data from internal stations.

For the case of Reports, the data point is a post-processed magnitude averaged (or accumulated) over hourly, daily and monthly periods of time. Only data that has been validated is used when calculating the reports. Report data is what is used in the report view to generate plots, and can be downloaded. It is typically what most people will be interested in checking.

The Measurement represent an input data point loaded from a file, with all its properties and metadata. Most of its properties can be edited during the validation process, but the original raw data is always preserved and can be recovered when/if needed.

Both type objects derive from a MeasurementBase abstract class that contains the common elements, which in turns derives from TimescaleModel. This top parent class is the one that enables all the efficient time series management of the data in Paricia.

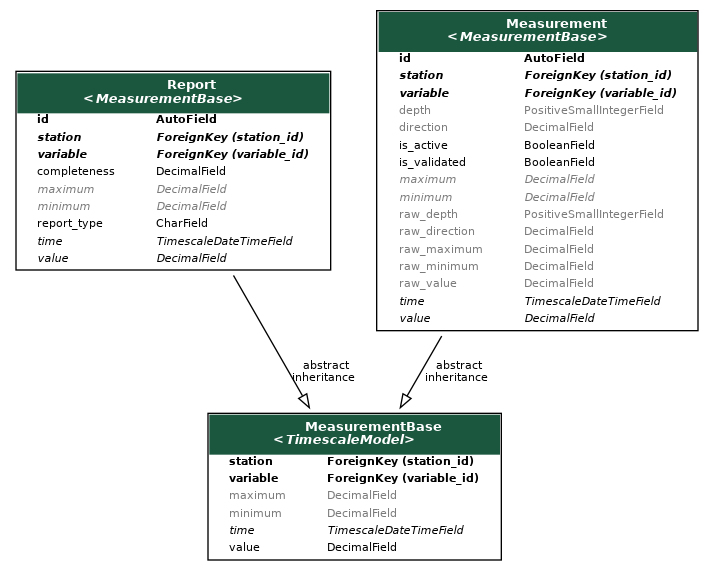

UML diagram of the Measurement app models.
Figure 1: UML diagram of the Measurement app models.

Components¤

::: measurement.models.MeasurementBase options: heading_level: 3 show_bases: True members: null show_root_full_path: False

::: measurement.models.Measurement options: heading_level: 3 show_bases: False members: null show_root_full_path: False

::: measurement.models.Report options: heading_level: 3 show_bases: False members: null show_root_full_path: False
