Research Python Patterns: Solving Common Pain Points in Research Software Development

This exemplar explores software design patterns, tools, and Python packages that make code development easier and more maintainable. Since not all design patterns translate well to a research context, the focus here is on patterns that are practical and beneficial for research workflows, including concepts such as coupling and cohesion, dependency injection, linting, and Model-View-Controller (MVC) architecture. To demonstrate these concepts in action, we use Conway's Game of Life as our working example, a well-defined yet rich problem.

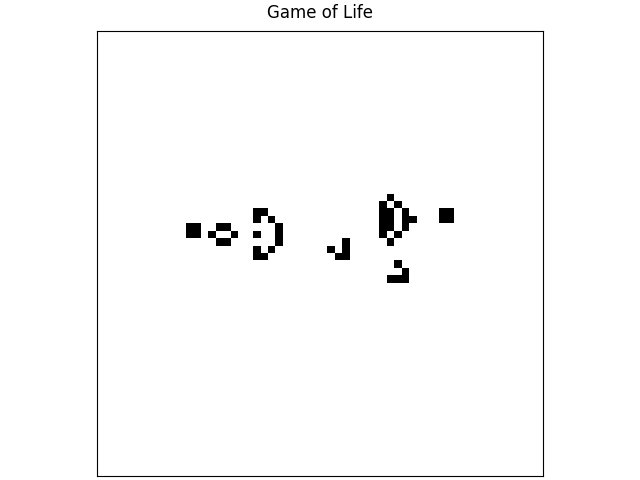

The Game of Life is a simulation of an array of pixels which can be "alive" or "dead". Each generation, the state of the pixel is determined by the state of pixels around it in the previous generation. This leads to a complex and interesting system from a simple set of rules. This is a gif of the Gosper glider gun pattern which creates cells that glide across the screen.

This exemplar was developed at Imperial College London by Hui Ling Wong in collaboration with Alex Dewar from Research Software Engineering and Chris Cooling from Research Computing & Data Science at the Early Career Researcher Institute.

Learning Outcomes 🎓

Software development comes with common pain points. After completing this exemplar, students will:

• Understand how linters can catch and prevent common code quality issues.
• Understand the pain points that design patterns solve and how to apply them in a research context.
• Understand why unvalidated user input can cause problems and how packages such as pydantic and typer can help, with an introduction to dependency injection and type checking.
• Understand how type hinting in Python reduces ambiguity and makes code easier to maintain.
• Understand how tooling such as pre-commit and type checkers can catch errors before they become problems.
• Understand how to build a Python command line tool to make your code more accessible and reusable.

Target Audience 🎯

Anyone working with Python or interested in learning about software architecture/design patterns that apply to any language.

Prerequisites ✅

Academic 📚

• Foundational understanding of the Python programming language
• Familiarity with installing software and packages.

System 💻

• Ability to install new software on the machine

Getting Started 🚀

1. Install uv by following the instructions here.
2. Create a clone of the repository using,

   $ git clone https://github.com/ImperialCollegeLondon/ReCoDE-research-python-patterns.git


3. Move into the root directory of the project. On linux, this would be,

   $ cd ReCoDE-research-python-patterns


4. In the root directory of the project, create a virtual environment with uv using

   $ uv venv


5. Activate the Python environment based on the instructions that appeared from running uv venv
6. Install the Game of Life Python package in the virtual environment using,

   $ uv sync


7. Run the game of life in the command line using,

   $ game-of-life cli basic-config.yaml


   This runs the game of life in the terminal rather than creating an output file. This runs indefinitely to stop it press ctrl+c. Note: the basic-config.yaml file is the root of the repository.

Disciplinary Background 🔬

One of the most common challenges in research software development is knowing how to structure code in a way that is maintainable, readable, and reusable. After all, the most frequent user of your own code is yourself, and past you and future you need to be able to communicate clearly through it. Alongside this, there is a wealth of tooling available that can make developing research software significantly easier, yet much of it remains unknown to most researchers. This exemplar was born out of the pain points encountered first-hand when writing research software, and aims to address those challenges in a practical and accessible way. As these are fundamentally generic software development issues, this exemplar is relevant and useful across all research disciplines.

Software Tools 🛠️

Programming language: Python

Tools:

1. uv - for package and environment management
2. ruff - for linting and formatting
3. prek or pre-commit - for git hook script to check code quality before committing to git
4. ty or pyright - for Python static type checking

Libraries:

1. numpy for working with arrays
2. pytest for testing code
3. matplotlib for creating plots
4. pydantic for handling input from users
5. pyyaml for loading configuration files from yaml file format
6. typer for building a command line tool

All dependencies for this project can be found in the pyproject.toml file

Project Structure 🗂️

.
├── LICENSE.md
├── README.md
├── docs
│   ├── assets
│   │   ├── favicon.ico
│   │   ├── ...
│   │   └── gosper-glider-gun.gif
│   ├── content.md
│   └── index.md
├── mkdocs.yml
├── pyproject.toml
├── ruff.toml
├── src/game_of_life
│   ├── __init__.py
│   ├── main.py
│   ├── ...
│   └── view
├── tests
│   ├── __init__.py
│   ├── ...
│   └── test_view.py
└── uv.lock

Code is organised into logical components:

• docs for documentation
• assets for static files like images that are used in the documentation
• src for core code, potentially divided into further modules
• test for testing scripts

Best Practice Notes 📝

• Code testing and/or test examples with pytest and docstring tests
• Use of continuous integration
• Use of conventional commits for commit messages
• Use of design patterns, dependency injection, static type checking, linting and pre-commit

Estimated Time ⏳

The exemplar has three main parts to it. For the first two, you're welcome to read them as standalone topics. For the final one, you'll need to work through all parts if you're not already familiar with the first two topics.

1. Python tooling to aid software development
2. Python type hinting
3. Software design patterns which makes code more maintainable. This starts with an introduction to the Model-View-Controller architecture

Section	Time (minutes)
Tooling	14
Type Hinting	17
Software Design Patterns	58

Additional Resources 🔗

• Book: Conway's Game of Life - Mathematics and Construction by Nathaniel Johnston and Dave Greene. DOI: 10.5281/zenodo.6097284
• Webpage: Game of Life Patterns

Licence 📄

This project is licensed under the BSD-3-Clause license.
