This module contain all the necessary subroutines to deal with FE-wise equations and fields. Assembling and solving of the momentum equation and associated fields such as capillary pressure, hydrostatic pressure solver, and stabilisation techniques. Also includes the assembly and solving of a Laplacian system (for zeta potential mainly) More...

Functions/Subroutines
subroutine, public	intenerge_assem_solve (state, packed_state, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, Mdisopt, Mmat, upwnd, tracer, velocity, density, multi_absorp, DT, SUF_SIG_DIAGTEN_BC, VOLFRA_PORE, IGOT_T2, igot_theta_flux, GET_THETA_FLUX, USE_THETA_FLUX, THETA_GDIFF, eles_with_pipe, pipes_aux, option_path, mass_ele_transp, thermal, THETA_FLUX, ONE_M_THETA_FLUX, THETA_FLUX_J, ONE_M_THETA_FLUX_J, icomp, saturation, Permeability_tensor_field, nonlinear_iteration)
	Calls to generate the transport equation for the transport of energy/temperature and to solve the transport of components. More...

subroutine	force_min_max_principle (Mdims, entrance, tracer, nonlinear_iteration, totally_min_max)
	: To help the stability of the system,if there are no sources/sinks it is known that the temperature must fulfill the min max principle, therefore here values outside this rank are capped. More...

subroutine, public	tracer_assemble_solve (Tracer_name, state, packed_state, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, Mdisopt, Mmat, upwnd, tracer, velocity, density, multi_absorp, DT, SUF_SIG_DIAGTEN_BC, VOLFRA_PORE, IGOT_T2, igot_theta_flux, GET_THETA_FLUX, USE_THETA_FLUX, THETA_GDIFF, eles_with_pipe, pipes_aux, mass_ele_transp, THETA_FLUX, ONE_M_THETA_FLUX, THETA_FLUX_J, ONE_M_THETA_FLUX_J, icomp, saturation, Permeability_tensor_field, nonlinear_iteration)
	Calls to generate and solve the transport equation for n passive tracers defined in diamond as Passive_Tracer_N Where N is an integer which is continuous starting from 1. More...

subroutine, public	volumefraction_assemble_solve (state, packed_state, multicomponent_state, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, Mdisopt, Mmat, multi_absorp, upwnd, eles_with_pipe, pipes_aux, DT, SUF_SIG_DIAGTEN_BC, V_SOURCE, VOLFRA_PORE, igot_theta_flux, mass_ele_transp, nonlinear_iteration, time_step, SFPI_taken, SFPI_its, Courant_number, THETA_FLUX, ONE_M_THETA_FLUX, THETA_FLUX_J, ONE_M_THETA_FLUX_J)
	Calls to generate the transport equation for the saturation. Embeded an FPI with backtracking method is uncluded. More...

subroutine	compositional_assemble_solve (state, packed_state, multicomponent_state, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, Mdisopt, Mmat, upwnd, multi_absorp, DT, SUF_SIG_DIAGTEN_BC, GET_THETA_FLUX, USE_THETA_FLUX, THETA_GDIFF, eles_with_pipe, pipes_aux, mass_ele, sum_theta_flux, sum_one_m_theta_flux, sum_theta_flux_j, sum_one_m_theta_flux_j)
	:In this subroutine the components are solved for all the phases. Systems for each component are assembled and solved by calling INTENERGE_ASSEM_SOLVE More...

subroutine, public	force_bal_cty_assem_solve (state, packed_state, Mdims, CV_GIdims, FE_GIdims, CV_funs, FE_funs, Mspars, ndgln, Mdisopt, Mmat, multi_absorp, upwnd, eles_with_pipe, pipes_aux, velocity, pressure, DT, SUF_SIG_DIAGTEN_BC, V_SOURCE, VOLFRA_PORE, IGOT_THETA_FLUX, THETA_FLUX, ONE_M_THETA_FLUX, THETA_FLUX_J, ONE_M_THETA_FLUX_J, calculate_mass_delta, outfluxes, pres_its_taken, nonlinear_its, Courant_number)
	Calls to generate the Gradient Matrix, the divergence matrix, the momentum matrix and the mass matrix Once these matrices (and corresponding RHSs) are generated the system of equations is solved using the projection method. More...

subroutine	dg_visc_lin (S_INV_NNX_MAT12, NNX_MAT, NNX_MAT2, NN_MAT, NN_MAT2, U_SNLOC, U_NLOC, SBUFEN_REVERSED, SDETWE, SBCVNGI, SNORMXN_ALL, NDIM, U_SLOC2LOC, U_OTHER_LOC, U_NLOC_EXT, ON_BOUNDARY)
	:<FOR INERTIA ONLY> This sub calculates S_INV_NNX_MAT12 which contains NDIM matricies that are used to form the inter element coupling for the viscocity discretization. NNX_MAT, NNX_MAT2 contain matricies of first derivative times basis function for current element and neightbouring element. Similarly NN_MAT, NN_MAT2, contain the element-wise mass matrices. Only call this sub if element not next to the boundary... More...

subroutine	viscocity_tensor_les_calc (LES_UDIFFUSION, LES_UDIFFUSION_VOL, DUX_ELE_ALL, NDIM, NPHASE, U_NLOC, X_NLOC, TOTELE, X_NONODS, X_ALL, X_NDGLN, MAT_NONODS, MAT_NLOC, MAT_NDGLN, LES_DISOPT, LES_CS, UDEN, CV_NONODS, CV_NDGLN, U_NDGLN, U_NONODS, U_ALL, DERIV)
	: <FOR INERTIA ONLY> This subroutine calculates a tensor of viscocity LES_UDIFFUSION, LES_UDIFFUSION_VOL More...

subroutine	comb_vel_matrix_diag_dist (DIAG_BIGM_CON, BIGM_CON, DGM_PETSC, FINELE, COLELE, NDIM, NPHASE, U_NLOC, TOTELE, velocity, pressure, Mmat)
	: <FOR INERTIA ONLY>This subroutine combines the distributed and block diagonal for an element into the matrix DGM_PHA. For stokes also the diagonal of the matrix is introduced in the mass matrix More...

subroutine	comb_vel_matrix_diag_dist_lump (DIAG_BIGM_CON, BIGM_CON, DGM_PETSC, FINELE, COLELE, NDIM, NPHASE, U_NLOC, TOTELE, velocity, pressure)
	: <FOR INERTIA ONLY>This subroutine combines the distributed and block diagonal for an element into the matrix DGM_PHA. More...

subroutine	use_posinmat_c_store (COUNT, U_INOD, P_JNOD, U_NONODS, FINDC, COLC, NCOLC, IDO_STORE_AC_SPAR_PT, STORED_AC_SPAR_PT, POSINMAT_C_STORE, ELE, U_ILOC, P_JLOC, TOTELE, U_NLOC, P_NLOC)
	Used to assemble the C matrix in the ICFERST format. More...

subroutine	use_posinmat_c_store_suf_dg (COUNT, U_INOD, P_JNOD, U_NONODS, FINDC, COLC, NCOLC, IDO_STORE_AC_SPAR_PT, STORED_AC_SPAR_PT, POSINMAT_C_STORE_SUF_DG, ELE, IFACE, U_SILOC, P_SJLOC, TOTELE, NFACE, U_SNLOC, P_SNLOC)
	Used to assemble the C matrix in the ICFERST format (for DG?) More...

subroutine	linearise_field (field_in, field_out)
	: <FOR INERTIA ONLY> This sub will linearise a p2 field More...

subroutine	introduce_grad_rhs_field_term (packed_state, Mdims, Mmat, RHS_field, FE_funs, Devfuns, X_ALL, LOC_U_RHS, ele, cv_ndgln, x_ndgln, ele2, iface, sdetwe, SNORMXN_ALL, U_SLOC2LOC, CV_SLOC2LOC, MAT_OTHER_LOC)
	: This subroutine performs and introduces the gradient of a RHS field (Capillary pressure for example) for the momentum equation. It has two options (hard-coded) integrations by parts (activated) or voluemtric integration, For capillary pressure: The capillary pressure is a term introduced as a RHS which affects the effective velocity More...

subroutine	getoverrelaxation_parameter (state, packed_state, Mdims, ndgln, Overrelaxation, Phase_with_Pc, totally_min_max, for_transport)
	Overrelaxation has to be alocate before calling this subroutine its size is cv_nonods For more information read: doi.org/10.1016/j.cma.2019.07.004. More...

subroutine	high_order_pressure_solve (Mdims, ndgln, u_rhs, state, packed_state, nphase, u_absorbin)
	: Instead of including the gravity in the RHS normally, here a system based on a Laplacian is created and solved that accounts for the gravity effect in the system. Next, this is introduced as a RHS in the momemtum equation This allows for higher precision for the gravity effect. > More...

real function	dg_oscilat_detect (SNDOTQ_KEEP, SNDOTQ2_KEEP, N_DOT_DU, N_DOT_DU2, SINCOME, MASS_ELE, MASS_ELE2)
	: <INERTIA ONLY>Determine if we have an oscillation in the normal direction... dg_oscilat_detect=1.0- CENTRAL SCHEME. dg_oscilat_detect=0.0- UPWIND SCHEME. More...

real function	p0_dg_oscilat_detect (SNDOTQ_KEEP, SNDOTQ2_KEEP, N_DOT_DU, N_DOT_DU2, SINCOME, MASS_ELE, MASS_ELE2)
	: <INERTIA ONLY> Determine if we have an oscillation in the normal direction... dg_oscilat_detect=1.0- CENTRAL SCHEME. dg_oscilat_detect=0.0- UPWIND SCHEME. More...

subroutine	diffus_cal_coeff_stress_or_tensor (Mdims, DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX, STRESS_FORM, STRESS_FORM_STAB, ZERO_OR_TWO_THIRDS, SBUFEN_REVERSED, SBCVFEN_REVERSED, SBCVNGI, SLOC_UDIFFUSION, SLOC_UDIFFUSION_VOL, SLOC2_UDIFFUSION, SLOC2_UDIFFUSION_VOL, DIFF_GI_ADDED, HDC, U_CV_NODJ_IPHA_ALL, U_CV_NODI_IPHA_ALL, UOLD_CV_NODJ_IPHA_ALL, UOLD_CV_NODI_IPHA_ALL, ELE, ELE2, SNORMXN_ALL, SLOC_DUX_ELE_ALL, SLOC2_DUX_ELE_ALL, SLOC_DUOLDX_ELE_ALL, SLOC2_DUOLDX_ELE_ALL, SELE, WIC_U_BC, WIC_U_BC_DIRICHLET, SIMPLE_DIFF_CALC, DIFF_MIN_FRAC, DIFF_MAX_FRAC)
	: <INERTIA ONLY> This sub calculates the effective diffusion coefficientd DIFF_COEF_DIVDX,DIFF_COEFOLD_DIVDX based on a non-linear method and a non-oscillating scheme. This implements the stress and tensor form of diffusion and calculates a jump conidition. which is in DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX The coefficient are in N_DOT_DKDU, N_DOT_DKDUOLD. look at the manual DG treatment of viscocity. More...

subroutine, public	generate_and_solve_laplacian_system (Mdims, state, packed_state, ndgln, Mmat, Mspars, CV_funs, CV_GIdims, Sigma_field, field_name, K_fields, F_fields, intface_val_type, solver_path)
	: In this method we assemble and solve the Laplacian system using at least P1 elements The equation solved is the following: Div sigma Grad X = - SUM (Div K Grad F) with Neuman BCs = 0 where K and F are passed down as a vector. Therefore for n entries the SUM will be performed over n fields Example: F = (3, nphase, cv_nonods) would include three terms in the RHS and the same for K If harmonic average then we perform the harmonic average of sigma and K IMPORTANT: This subroutine requires the PHsparsity to be generated Note that this method solves considering FE fields. If using CV you may incur in an small error. > More...

subroutine	impose_strong_bcs_wells (state, pipes_aux, Mdims, Mmat, ndgln, CMC_petsc, pressure, rhs_p)
	: In this subroutine, we modify the CMC matrix and the RHS for the pressure to strongly impose the pressure boundary conditions for wells ONLY. This is required only when using P0DG-P1 If not imposing strong pressure BCs and using P0DG-P1, the formulation for weak pressure BCs leads to a 0 in the diagonal of the CMC matrix, therefore strong BCs are required. More...

subroutine	ai_backtracking_parameters (Mdims, ndgln, packed_state, state, courant_number_in, backtrack_par_factor, overrelaxation, res, resold, outer_nonlinear_iteration, for_transport)
	Subroutine that calculates the backtrack_par_factor based on Machine Learning. The inputs of the Machine learning model are dimensionless numbers and configurations of the system. This subroutine also generates several dimensionless numbers cv-wise. More...

Detailed Description

This module contain all the necessary subroutines to deal with FE-wise equations and fields. Assembling and solving of the momentum equation and associated fields such as capillary pressure, hydrostatic pressure solver, and stabilisation techniques. Also includes the assembly and solving of a Laplacian system (for zeta potential mainly)

Function/Subroutine Documentation

◆ ai_backtracking_parameters()

subroutine multiphase_1d_engine::ai_backtracking_parameters	(	type(multi_dimensions), intent(in)	Mdims,
		type(multi_ndgln), intent(in)	ndgln,
		type( state_type ), intent(inout)	packed_state,
		type( state_type ), dimension( : ), intent(inout)	state,
		real, dimension(:), intent(inout)	courant_number_in,
		real, intent(inout)	backtrack_par_factor,
		real, dimension(:), intent(in)	overrelaxation,
		real, intent(in)	res,
		real, intent(in)	resold,
		integer, intent(in)	outer_nonlinear_iteration,
		logical, intent(in), optional	for_transport
	)

Subroutine that calculates the backtrack_par_factor based on Machine Learning. The inputs of the Machine learning model are dimensionless numbers and configurations of the system. This subroutine also generates several dimensionless numbers cv-wise.

Author: Vinicius L S Silva

Here is the call graph for this function:

Here is the caller graph for this function:

◆ comb_vel_matrix_diag_dist()

subroutine multiphase_1d_engine::comb_vel_matrix_diag_dist	(	real, dimension( :,:,:, :,:,:, : ), intent(in)	DIAG_BIGM_CON,
		real, dimension( :,:,:, :,:,:, : ), intent(in)	BIGM_CON,
		type( petsc_csr_matrix ), intent(inout)	DGM_PETSC,
		integer, dimension(: ), intent(in)	FINELE,
		integer, dimension( : ), intent(in)	COLELE,
		integer, intent(in)	NDIM,
		integer, intent(in)	NPHASE,
		integer, intent(in)	U_NLOC,
		integer, intent(in)	TOTELE,
		type( tensor_field )	velocity,
		type( tensor_field )	pressure,
		type(multi_matrices), intent(inout)	Mmat
	)

: <FOR INERTIA ONLY>This subroutine combines the distributed and block diagonal for an element into the matrix DGM_PHA. For stokes also the diagonal of the matrix is introduced in the mass matrix

Here is the caller graph for this function:

◆ comb_vel_matrix_diag_dist_lump()

subroutine multiphase_1d_engine::comb_vel_matrix_diag_dist_lump	(	real, dimension( :,:,:, :,:,:, : ), intent(in)	DIAG_BIGM_CON,
		real, dimension( :,:,:, :,:,:, : ), intent(in)	BIGM_CON,
		type( petsc_csr_matrix ), intent(inout)	DGM_PETSC,
		integer, dimension(: ), intent(in)	FINELE,
		integer, dimension( : ), intent(in)	COLELE,
		integer, intent(in)	NDIM,
		integer, intent(in)	NPHASE,
		integer, intent(in)	U_NLOC,
		integer, intent(in)	TOTELE,
		type( tensor_field )	velocity,
		type( tensor_field )	pressure
	)

: <FOR INERTIA ONLY>This subroutine combines the distributed and block diagonal for an element into the matrix DGM_PHA.

Here is the caller graph for this function:

◆ compositional_assemble_solve()

subroutine multiphase_1d_engine::compositional_assemble_solve	(	type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type( state_type ), dimension( : ), intent(inout)	multicomponent_state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type (multi_sparsities), intent(in)	Mspars,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_discretization_opts)	Mdisopt,
		type (multi_matrices), intent(inout)	Mmat,
		type (porous_adv_coefs), intent(inout)	upwnd,
		type(multi_absorption), intent(inout)	multi_absorp,
		real, intent(in)	DT,
		real, dimension( :, : ), intent(in)	SUF_SIG_DIAGTEN_BC,
		logical, intent(in)	GET_THETA_FLUX,
		logical, intent(in)	USE_THETA_FLUX,
		real, dimension( :, : ), intent(inout)	THETA_GDIFF,
		type(pipe_coords), dimension(:), intent(in)	eles_with_pipe,
		type (multi_pipe_package), intent(in)	pipes_aux,
		real, dimension(:), intent(in)	mass_ele,
		real, dimension( :,: ), intent(inout)	sum_theta_flux,
		real, dimension( :,: ), intent(inout)	sum_one_m_theta_flux,
		real, dimension( :,: ), intent(inout)	sum_theta_flux_j,
		real, dimension( :,: ), intent(inout)	sum_one_m_theta_flux_j
	)

:In this subroutine the components are solved for all the phases. Systems for each component are assembled and solved by calling INTENERGE_ASSEM_SOLVE

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state
multicomponent_state	Linked list containing all the fields used by compositional, just in case we are solving for components >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
CV_GIdims	Gauss integration numbers for CV fields
CV_funs	Shape functions for the CV mesh
Mspars	Sparsity of the matrices
ndgln	Global to local variables
Mdisopt	Discretisation options
Mmat	Matrices for ICFERST
upwnd	Sigmas to compute the fluxes at the interphase for porous media
multi_absorp	Absoprtion of associated with the transport field
DT	Time step size
SUF_SIG_DIAGTEN_BC	Like upwnd but for the boundary
GET_THETA_FLUX,USE_THETA_FLUX	?????
THETA_GDIFF	????
eles_with_pipe	Elements that have a pipe
pipes_aux	Information required to define wells
mass_ele	Mass of the elements
sum_theta_flux,sum_one_m_theta_flux,sum_theta_flux_j,sum_one_m_theta_flux_j	????

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dg_oscilat_detect()

real function multiphase_1d_engine::dg_oscilat_detect	(	real	SNDOTQ_KEEP,
		real	SNDOTQ2_KEEP,
		real	N_DOT_DU,
		real	N_DOT_DU2,
		real	SINCOME,
		real	MASS_ELE,
		real	MASS_ELE2
	)

: <INERTIA ONLY>Determine if we have an oscillation in the normal direction... dg_oscilat_detect=1.0- CENTRAL SCHEME. dg_oscilat_detect=0.0- UPWIND SCHEME.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dg_visc_lin()

subroutine multiphase_1d_engine::dg_visc_lin	(	real, dimension( ndim, u_snloc, 2*u_nloc ), intent(inout)	S_INV_NNX_MAT12,
		real, dimension( ndim, u_nloc, u_nloc ), intent(in)	NNX_MAT,
		real, dimension( ndim, u_nloc, u_nloc ), intent(in)	NNX_MAT2,
		real, dimension( u_nloc, u_nloc ), intent(in)	NN_MAT,
		real, dimension( u_nloc, u_nloc ), intent(in)	NN_MAT2,
		integer, intent(in)	U_SNLOC,
		integer, intent(in)	U_NLOC,
		real, dimension( sbcvngi, u_snloc ), intent(in)	SBUFEN_REVERSED,
		real, dimension( sbcvngi ), intent(in)	SDETWE,
		integer, intent(in)	SBCVNGI,
		real, dimension( ndim, sbcvngi ), intent(in)	SNORMXN_ALL,
		integer, intent(in)	NDIM,
		integer, dimension( u_snloc ), intent(in)	U_SLOC2LOC,
		integer, dimension( u_nloc ), intent(in)	U_OTHER_LOC,
		integer, intent(in)	U_NLOC_EXT,
		logical, intent(in)	ON_BOUNDARY
	)

:<FOR INERTIA ONLY> This sub calculates S_INV_NNX_MAT12 which contains NDIM matricies that are used to form the inter element coupling for the viscocity discretization. NNX_MAT, NNX_MAT2 contain matricies of first derivative times basis function for current element and neightbouring element. Similarly NN_MAT, NN_MAT2, contain the element-wise mass matrices. Only call this sub if element not next to the boundary...

Here is the caller graph for this function:

◆ diffus_cal_coeff_stress_or_tensor()

subroutine multiphase_1d_engine::diffus_cal_coeff_stress_or_tensor	(	type(multi_dimensions), intent(in)	Mdims,
		real, dimension( mdims%ndim,mdims%nphase,sbcvngi ), intent(inout)	DIFF_COEF_DIVDX,
		real, dimension( mdims%ndim,mdims%nphase,sbcvngi ), intent(inout)	DIFF_COEFOLD_DIVDX,
		logical, intent(in)	STRESS_FORM,
		logical, intent(in)	STRESS_FORM_STAB,
		real, intent(in)	ZERO_OR_TWO_THIRDS,
		real, dimension( sbcvngi, mdims%u_snloc ), intent(in)	SBUFEN_REVERSED,
		real, dimension( sbcvngi, mdims%cv_snloc ), intent(in)	SBCVFEN_REVERSED,
		integer, intent(in)	SBCVNGI,
		real, dimension( mdims%ndim,mdims%ndim,mdims%nphase,mdims%cv_snloc ), intent(in)	SLOC_UDIFFUSION,
		real, dimension( mdims%nphase,mdims%cv_snloc ), intent(in)	SLOC_UDIFFUSION_VOL,
		real, dimension( mdims%ndim,mdims%ndim,mdims%nphase,mdims%cv_snloc ), intent(in)	SLOC2_UDIFFUSION,
		real, dimension( mdims%nphase,mdims%cv_snloc ), intent(in)	SLOC2_UDIFFUSION_VOL,
		real, dimension( mdims%ndim, mdims%ndim,mdims%ndim, mdims%nphase, sbcvngi), intent(in)	DIFF_GI_ADDED,
		real, intent(in)	HDC,
		real, dimension(mdims%ndim,mdims%nphase,sbcvngi), intent(in)	U_CV_NODJ_IPHA_ALL,
		real, dimension(mdims%ndim,mdims%nphase,sbcvngi), intent(in)	U_CV_NODI_IPHA_ALL,
		real, dimension(mdims%ndim,mdims%nphase,sbcvngi), intent(in)	UOLD_CV_NODJ_IPHA_ALL,
		real, dimension(mdims%ndim,mdims%nphase,sbcvngi), intent(in)	UOLD_CV_NODI_IPHA_ALL,
		integer, intent(in)	ELE,
		integer, intent(in)	ELE2,
		real, dimension( mdims%ndim, sbcvngi ), intent(in)	SNORMXN_ALL,
		real, dimension( mdims%ndim, mdims%ndim , mdims%nphase, mdims%u_snloc ), intent(in)	SLOC_DUX_ELE_ALL,
		real, dimension( mdims%ndim, mdims%ndim , mdims%nphase, mdims%u_snloc ), intent(in)	SLOC2_DUX_ELE_ALL,
		real, dimension( mdims%ndim, mdims%ndim , mdims%nphase, mdims%u_snloc ), intent(in)	SLOC_DUOLDX_ELE_ALL,
		real, dimension( mdims%ndim, mdims%ndim , mdims%nphase, mdims%u_snloc ), intent(in)	SLOC2_DUOLDX_ELE_ALL,
		integer, intent(in)	SELE,
		integer, dimension( mdims%ndim,mdims%nphase,mdims%stotel ), intent(in)	WIC_U_BC,
		integer, intent(in)	WIC_U_BC_DIRICHLET,
		logical, intent(in)	SIMPLE_DIFF_CALC,
		real, intent(in)	DIFF_MIN_FRAC,
		real, intent(in)	DIFF_MAX_FRAC
	)

: <INERTIA ONLY> This sub calculates the effective diffusion coefficientd DIFF_COEF_DIVDX,DIFF_COEFOLD_DIVDX based on a non-linear method and a non-oscillating scheme. This implements the stress and tensor form of diffusion and calculates a jump conidition. which is in DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX The coefficient are in N_DOT_DKDU, N_DOT_DKDUOLD. look at the manual DG treatment of viscocity.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ force_bal_cty_assem_solve()

subroutine, public multiphase_1d_engine::force_bal_cty_assem_solve	(	type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		type(multi_gi_dimensions), intent(in)	FE_GIdims,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type(multi_shape_funs), intent(in)	FE_funs,
		type (multi_sparsities), intent(in)	Mspars,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_discretization_opts)	Mdisopt,
		type (multi_matrices), intent(inout)	Mmat,
		type(multi_absorption), intent(inout)	multi_absorp,
		type (porous_adv_coefs), intent(inout)	upwnd,
		type(pipe_coords), dimension(:), intent(in)	eles_with_pipe,
		type (multi_pipe_package), intent(in)	pipes_aux,
		type( tensor_field ), intent(inout)	velocity,
		type( tensor_field ), intent(inout)	pressure,
		real, intent(in)	DT,
		real, dimension( : , : ), intent(in)	SUF_SIG_DIAGTEN_BC,
		real, dimension( :, : ), intent(in)	V_SOURCE,
		real, dimension( :, : ), intent(in)	VOLFRA_PORE,
		integer, intent(in)	IGOT_THETA_FLUX,
		real, dimension( : , : ), intent(inout)	THETA_FLUX,
		real, dimension( : , : ), intent(inout)	ONE_M_THETA_FLUX,
		real, dimension( : , : ), intent(inout)	THETA_FLUX_J,
		real, dimension( : , : ), intent(inout)	ONE_M_THETA_FLUX_J,
		real, dimension(:,:), intent(inout)	calculate_mass_delta,
		type (multi_outfluxes), intent(inout)	outfluxes,
		integer, intent(inout)	pres_its_taken,
		integer, intent(in)	nonlinear_its,
		real, dimension(:), intent(inout)	Courant_number
	)

Calls to generate the Gradient Matrix, the divergence matrix, the momentum matrix and the mass matrix Once these matrices (and corresponding RHSs) are generated the system of equations is solved using the projection method.

Author: Chris Pain, Pablo Salinas, Asiri Obeysekara

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
CV_GIdims	Gauss integration numbers for CV fields
FE_GIdims	Gauss integration numbers for FE fields
CV_funs	Shape functions for the CV mesh
FE_funs	Shape functions for the FE mesh
Mspars	Sparsity of the matrices
ndgln	Global to local variables
Mdisopt	Discretisation options
Mmat	Matrices for ICFERST
multi_absorp	Absoprtion of associated with the transport field
upwnd	Sigmas to compute the fluxes at the interphase for porous media
eles_with_pipe	Elements that have a pipe
pipes_aux	Information required to define wells
velocity	tensor field. Why do we pass it down instead of retrieving it from packed_state...
pressure	tensor fieldWhy do we pass it down instead of retrieving it from packed_state...
DT	Time step size
SUF_SIG_DIAGTEN_BC	Like upwnd but for the boundary
V_SOURCE	Source term
VOLFRA_PORE	Porosity field (Mdimsnpres,Mdimstotele)
IGOT_THETA_FLUX,THETA_FLUX,ONE_M_THETA_FLUX,THETA_FLUX_J,ONE_M_THETA_FLUX_J	????
calculate_mass_delta	This is to compute mass conservation
outfluxes	variable containing the outfluxes information
pres_its_taken	Integer containing the number of iterations performed by the solver to solve for pressure
nonlinear_its	current non-linear iteration
Courant_number	Global courant number and shock front courant number

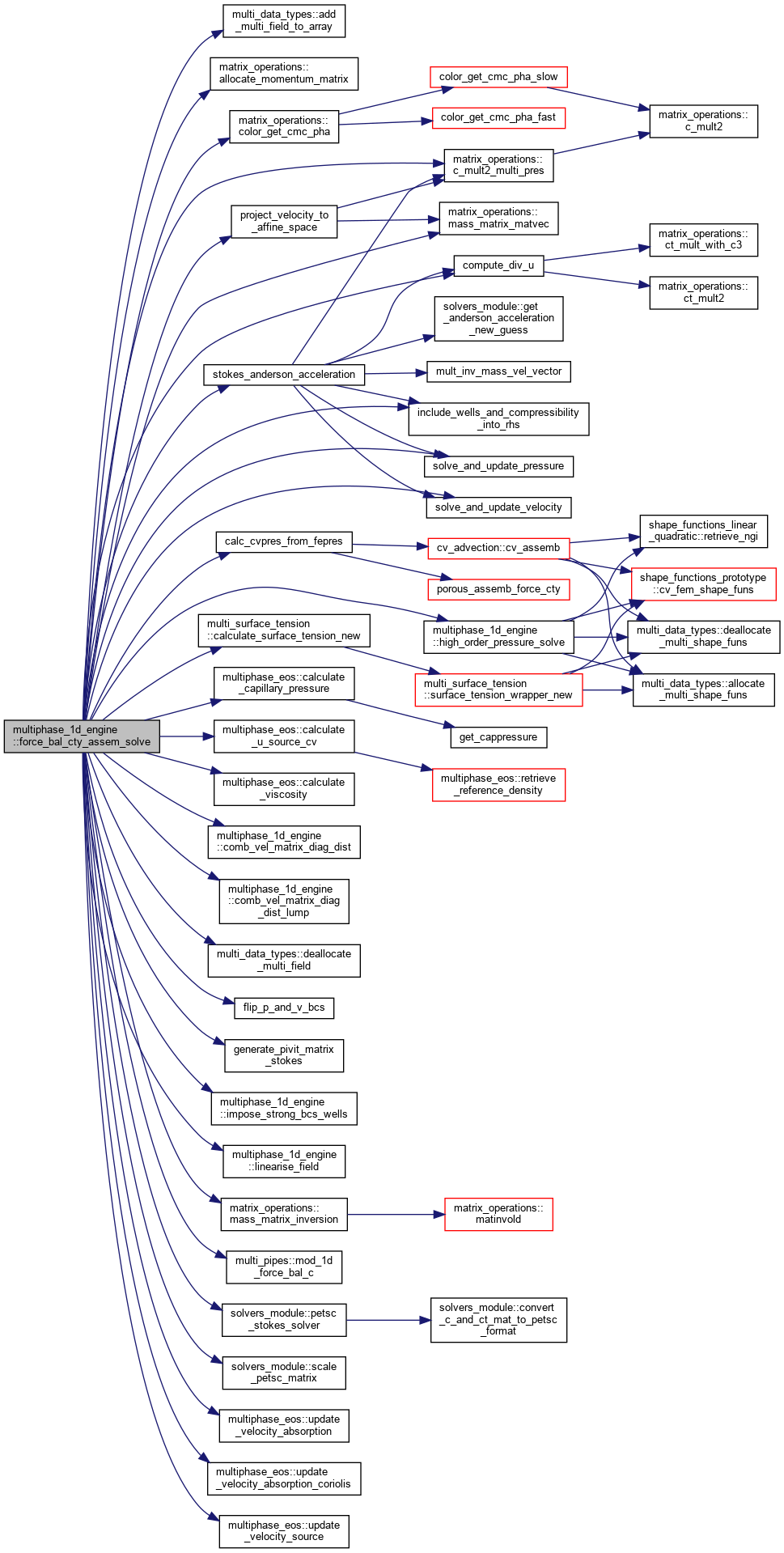

Here is the call graph for this function:

Here is the caller graph for this function:

◆ force_min_max_principle()

subroutine multiphase_1d_engine::force_min_max_principle	(	type(multi_dimensions), intent(in)	Mdims,
		integer, intent(in)	entrance,
		type(tensor_field), intent(inout)	tracer,
		integer, intent(in)	nonlinear_iteration,
		real, dimension(2), intent(inout)	totally_min_max
	)

: To help the stability of the system,if there are no sources/sinks it is known that the temperature must fulfill the min max principle, therefore here values outside this rank are capped.

Here is the caller graph for this function:

◆ generate_and_solve_laplacian_system()

subroutine, public multiphase_1d_engine::generate_and_solve_laplacian_system	(	type(multi_dimensions), intent(in)	Mdims,
		type( state_type ), dimension(:), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_matrices), intent(inout)	Mmat,
		type(multi_sparsities), intent(in)	Mspars,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		real, dimension(:,:), intent(in)	Sigma_field,
		character( len = * ), intent(in), optional	field_name,
		real, dimension(:,:,:), intent(in)	K_fields,
		real, dimension(:,:,:), intent(in)	F_fields,
		integer, intent(in)	intface_val_type,
		character(len=option_path_len), intent(in), optional	solver_path
	)

: In this method we assemble and solve the Laplacian system using at least P1 elements The equation solved is the following: Div sigma Grad X = - SUM (Div K Grad F) with Neuman BCs = 0 where K and F are passed down as a vector. Therefore for n entries the SUM will be performed over n fields Example: F = (3, nphase, cv_nonods) would include three terms in the RHS and the same for K If harmonic average then we perform the harmonic average of sigma and K IMPORTANT: This subroutine requires the PHsparsity to be generated Note that this method solves considering FE fields. If using CV you may incur in an small error. >

Parameters

Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state
ndgln	Global to local variables
Mmat	Matrices for ICFERST
Mspars	Sparsity of the matrices
CV_funs	Shape functions for the CV mesh
CV_GIdims	Gauss integration numbers for CV fields
Sigma_field	Coefficient multipliying the left-hand side term
field_name	name of the field to be solved for
K_fields	Coefficients multipliying the RHS terms
F_fields	RHS fierlds
intface_val_type	0 = no interpolation; 1 Harmonic mean; !20 for SP solver, harmonic mean considering charge; negative normal mean
solver_path	Path to select the type of solver

Here is the caller graph for this function:

◆ getoverrelaxation_parameter()

subroutine multiphase_1d_engine::getoverrelaxation_parameter	(	type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type (multi_dimensions), intent(in)	Mdims,
		type(multi_ndgln), intent(in)	ndgln,
		real, dimension(:), intent(inout)	Overrelaxation,
		integer, intent(inout)	Phase_with_Pc,
		real, dimension(:), optional	totally_min_max,
		logical, intent(in), optional	for_transport
	)

Overrelaxation has to be alocate before calling this subroutine its size is cv_nonods For more information read: doi.org/10.1016/j.cma.2019.07.004.

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
ndgln	Global to local variables
Overrelaxation	INOUT Field containing the outcome of this subroutine
Phase_with_Pc	Phase that will contain the Overrelaxation field
totally_min_max	Min max of the field (to normalise for transport)
for_transport	True if the field is not saturation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ high_order_pressure_solve()

subroutine multiphase_1d_engine::high_order_pressure_solve	(	type(multi_dimensions), intent(in)	Mdims,
		type(multi_ndgln), intent(in)	ndgln,
		real, dimension( :, :, : ), intent(inout)	u_rhs,
		type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		integer, intent(in)	nphase,
		real, dimension( :, :, : ), intent(in)	u_absorbin
	)

: Instead of including the gravity in the RHS normally, here a system based on a Laplacian is created and solved that accounts for the gravity effect in the system. Next, this is introduced as a RHS in the momemtum equation This allows for higher precision for the gravity effect. >

Parameters

Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
ndgln	Global to local variables
u_rhs	INOUT Field to contain the outcome of this subroutine
state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state
Number	of phases
u_absorbin	Absorption associated to the momentum equation/velocity

Here is the call graph for this function:

Here is the caller graph for this function:

◆ impose_strong_bcs_wells()

subroutine multiphase_1d_engine::impose_strong_bcs_wells	(	type( state_type ), dimension(:), intent(in)	state,
		type (multi_pipe_package), intent(in)	pipes_aux,
		type(multi_dimensions), intent(in)	Mdims,
		type (multi_matrices), intent(in)	Mmat,
		type(multi_ndgln), intent(in)	ndgln,
		type(petsc_csr_matrix), intent(inout)	CMC_petsc,
		type( tensor_field ), intent(in)	pressure,
		real, dimension (:,:), intent(inout)	rhs_p
	)

: In this subroutine, we modify the CMC matrix and the RHS for the pressure to strongly impose the pressure boundary conditions for wells ONLY. This is required only when using P0DG-P1 If not imposing strong pressure BCs and using P0DG-P1, the formulation for weak pressure BCs leads to a 0 in the diagonal of the CMC matrix, therefore strong BCs are required.

Author: Pablo Salinas, Geraldine Regnier

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
pipes_aux	Information required to define wells >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
Mmat	Matrices for ICFERST
ndgln	Global to local variables
CMC_petsc	petsc_csr_matrix field containing the pressure matrix. Matrix to be modified here
rhs_p	RHS associated to the pressure matrix.

Here is the caller graph for this function:

◆ intenerge_assem_solve()

subroutine, public multiphase_1d_engine::intenerge_assem_solve	(	type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type (multi_sparsities), intent(in)	Mspars,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_discretization_opts)	Mdisopt,
		type (multi_matrices), intent(inout)	Mmat,
		type (porous_adv_coefs), intent(inout)	upwnd,
		type(tensor_field), intent(inout)	tracer,
		type(tensor_field), intent(in)	velocity,
		type(tensor_field), intent(in)	density,
		type(multi_absorption), intent(inout)	multi_absorp,
		real, intent(in)	DT,
		real, dimension( :, : ), intent(in)	SUF_SIG_DIAGTEN_BC,
		real, dimension( :, : ), intent(in)	VOLFRA_PORE,
		integer, intent(in)	IGOT_T2,
		integer, intent(in)	igot_theta_flux,
		logical, intent(in)	GET_THETA_FLUX,
		logical, intent(in)	USE_THETA_FLUX,
		real, dimension( :, : ), intent(inout)	THETA_GDIFF,
		type(pipe_coords), dimension(:), intent(in)	eles_with_pipe,
		type (multi_pipe_package), intent(in)	pipes_aux,
		character( len = * ), intent(in), optional	option_path,
		real, dimension( : ), intent(inout), optional	mass_ele_transp,
		logical, intent(in), optional	thermal,
		real, dimension( :,: ), intent(inout), optional	THETA_FLUX,
		real, dimension( :,: ), intent(inout), optional	ONE_M_THETA_FLUX,
		real, dimension( :,: ), intent(inout), optional	THETA_FLUX_J,
		real, dimension( :,: ), intent(inout), optional	ONE_M_THETA_FLUX_J,
		integer, optional	icomp,
		type(tensor_field), intent(in), optional	saturation,
		type( tensor_field ), intent(in), optional, pointer	Permeability_tensor_field,
		integer, optional	nonlinear_iteration
	)

Calls to generate the transport equation for the transport of energy/temperature and to solve the transport of components.

Author: Chris Pain, Pablo Salinas

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
CV_GIdims	Gauss integration numbers for CV fields
CV_funs	Shape functions for the CV mesh
Mspars	Sparsity of the matrices
ndgln	Global to local variables
Mdisopt	Discretisation options
Mmat	Matrices for ICFERST
upwnd	Sigmas to compute the fluxes at the interphase for porous media
tracer	Tracer considered for the transport equation
density	Density of the field
velocity	Velocity of the field
multi_absorp	Absoprtion of associated with the transport field
IGOT_T2	!>
IGOT_T2.	True (1) if solving for a tracer, false otherwise
igot_theta_flux	????
GET_THETA_FLUX,USE_THETA_FLUX	?????
THERMAL	If true then we are solving for temperature
THETA_GDIFF	????
eles_with_pipe	Elements that have a pipe
pipes_aux	Information required to define wells
THETA_FLUX,ONE_M_THETA_FLUX,THETA_FLUX_J,ONE_M_THETA_FLUX_J	????
DT	Time step size
SUF_SIG_DIAGTEN_BC	Like upwnd but for the boundary
VOLFRA_PORE	Porosity field (Mdimsnpres,Mdimstotele)
option_path	Option path of the tracer to be solved for
mass_ele_transp	Mass of the elements
saturation	PhaseVolumeFraction field
Permeability_tensor_field	Permeability field
icomp	Number of components, if > 0 then compositional is solved param nonlinear_iteration Current non-linear iteration

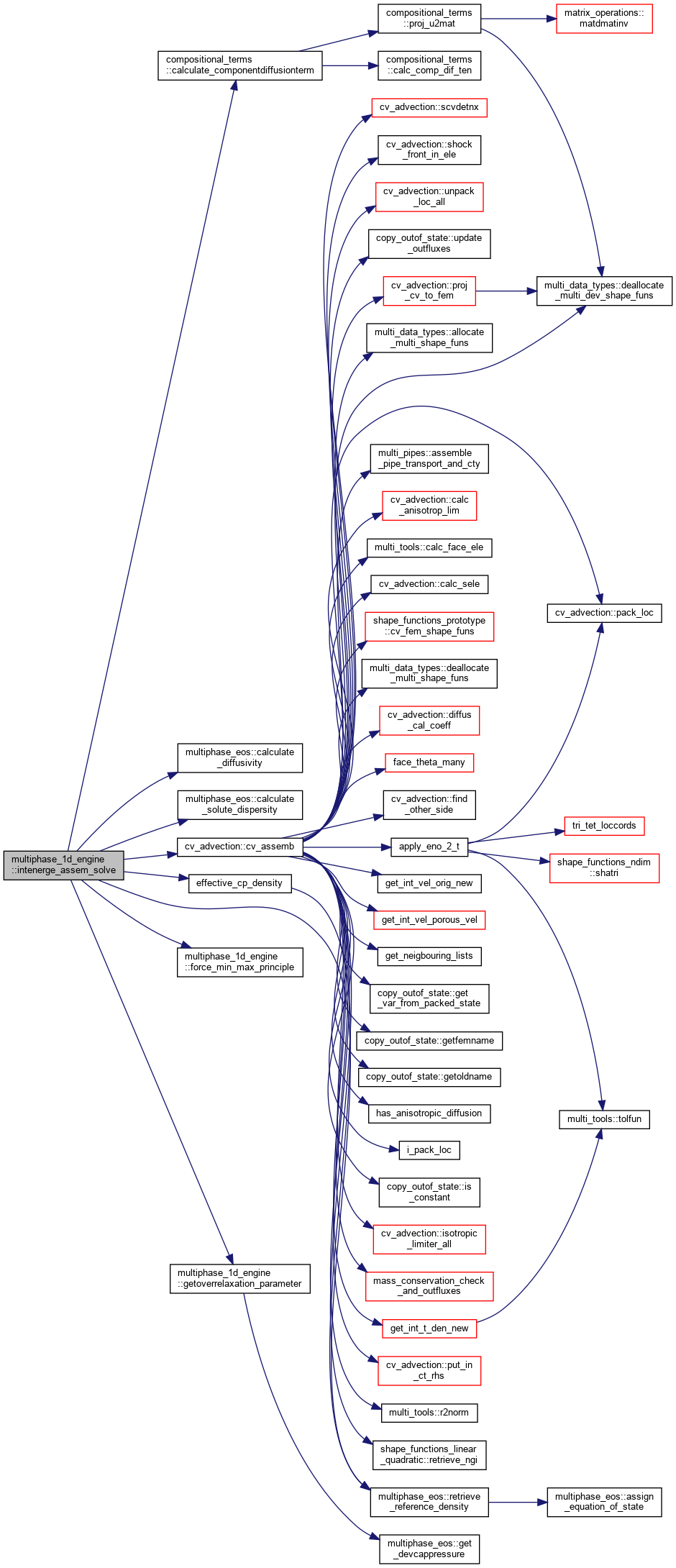

Here is the call graph for this function:

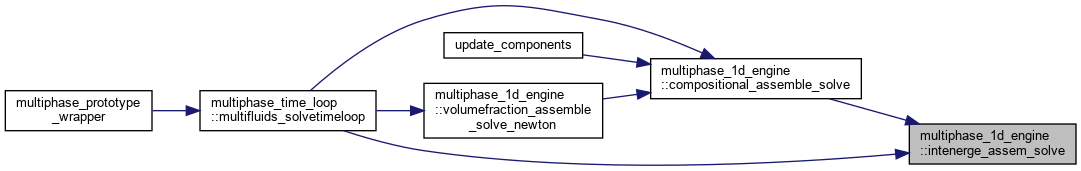

Here is the caller graph for this function:

◆ introduce_grad_rhs_field_term()

subroutine multiphase_1d_engine::introduce_grad_rhs_field_term	(	type( state_type ), intent(inout)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		type (multi_matrices), intent(inout)	Mmat,
		real, dimension(:,:,:), intent(in)	RHS_field,
		type(multi_shape_funs), intent(in)	FE_funs,
		type(multi_dev_shape_funs), intent(inout)	Devfuns,
		real, dimension(:,:)	X_ALL,
		real, dimension ( :, :, : ), intent(inout)	LOC_U_RHS,
		integer, intent(in)	ele,
		integer, dimension(:), intent(in)	cv_ndgln,
		integer, dimension(:), intent(in)	x_ndgln,
		integer, intent(in)	ele2,
		integer, intent(in)	iface,
		real, dimension(:), intent(in)	sdetwe,
		real, dimension(:,:), intent(in)	SNORMXN_ALL,
		integer, dimension(:), intent(in)	U_SLOC2LOC,
		integer, dimension(:), intent(in)	CV_SLOC2LOC,
		integer, dimension(:), intent(in)	MAT_OTHER_LOC
	)

: This subroutine performs and introduces the gradient of a RHS field (Capillary pressure for example) for the momentum equation. It has two options (hard-coded) integrations by parts (activated) or voluemtric integration, For capillary pressure: The capillary pressure is a term introduced as a RHS which affects the effective velocity

Parameters

packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
Mmat	Matrices for ICFERST
RHS_field	The values to introduce, for capilalry pressure these are the evaluted values of CapPressureval
FE_funs	Shape functions for the FE mesh
Devfuns	Derivatives of the FE_funs
X_ALL	Coordinates of the nodes
LOC_U_RHS	RHS INOUT field with the updated field
ele	Current element
cv_ndgln	Global to local variables of the CV mesh
x_ndgln	Global to local variables of the nodes
ele2	neighbouring element
iface	current face being integrated
sdetwe	edge lenght associated to the current gauss integration point, i.e. edge lenght
SNORMXN_ALL	normal to the current surface
U_SLOC2LOC	Surface local to local for velocity nodes
CV_SLOC2LOC	Surface local to local for cv nodes
MAT_OTHER_LOC	for sub-CV the neighbouring one

Here is the caller graph for this function:

◆ linearise_field()

subroutine multiphase_1d_engine::linearise_field	(	type( tensor_field ), intent(in)	field_in,
		real, dimension( :, : ), intent(inout)	field_out
	)

: <FOR INERTIA ONLY> This sub will linearise a p2 field

Here is the caller graph for this function:

◆ p0_dg_oscilat_detect()

real function multiphase_1d_engine::p0_dg_oscilat_detect	(	real, intent(in)	SNDOTQ_KEEP,
		real, intent(in)	SNDOTQ2_KEEP,
		real, intent(in)	N_DOT_DU,
		real, intent(in)	N_DOT_DU2,
		real, intent(in)	SINCOME,
		real, intent(in)	MASS_ELE,
		real, intent(in)	MASS_ELE2
	)

: <INERTIA ONLY> Determine if we have an oscillation in the normal direction... dg_oscilat_detect=1.0- CENTRAL SCHEME. dg_oscilat_detect=0.0- UPWIND SCHEME.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tracer_assemble_solve()

subroutine, public multiphase_1d_engine::tracer_assemble_solve	(	character(len=*), intent(in)	Tracer_name,
		type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type ), intent(inout)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type (multi_sparsities), intent(in)	Mspars,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_discretization_opts)	Mdisopt,
		type (multi_matrices), intent(inout)	Mmat,
		type (porous_adv_coefs), intent(inout)	upwnd,
		integer, intent(inout)	tracer,
		type(tensor_field), intent(in)	velocity,
		type(tensor_field), intent(in)	density,
		type(multi_absorption), intent(inout)	multi_absorp,
		real, intent(in)	DT,
		real, dimension( :, : ), intent(in)	SUF_SIG_DIAGTEN_BC,
		real, dimension( :, : ), intent(in)	VOLFRA_PORE,
		integer, intent(in)	IGOT_T2,
		integer, intent(in)	igot_theta_flux,
		logical, intent(in)	GET_THETA_FLUX,
		logical, intent(in)	USE_THETA_FLUX,
		real, dimension( :, : ), intent(inout)	THETA_GDIFF,
		type(pipe_coords), dimension(:), intent(in)	eles_with_pipe,
		type (multi_pipe_package), intent(in)	pipes_aux,
		real, dimension( : ), intent(inout), optional	mass_ele_transp,
		real, dimension( :,: ), intent(inout), optional	THETA_FLUX,
		real, dimension( :,: ), intent(inout), optional	ONE_M_THETA_FLUX,
		real, dimension( :,: ), intent(inout), optional	THETA_FLUX_J,
		real, dimension( :,: ), intent(inout), optional	ONE_M_THETA_FLUX_J,
		integer, optional	icomp,
		type(tensor_field), intent(in), optional	saturation,
		type( tensor_field ), intent(in), optional, pointer	Permeability_tensor_field,
		integer, optional	nonlinear_iteration
	)

Calls to generate and solve the transport equation for n passive tracers defined in diamond as Passive_Tracer_N Where N is an integer which is continuous starting from 1.

Author: Chris Pain, Pablo Salinas

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
CV_GIdims	Gauss integration numbers for CV fields
CV_funs	Shape functions for the CV mesh
Mspars	Sparsity of the matrices
ndgln	Global to local variables
Mdisopt	Discretisation options
Mmat	Matrices for ICFERST
upwnd	Sigmas to compute the fluxes at the interphase for porous media
tracer	Tracer considered for the transport equation
velocity	Velocity of the field
density	Density of the field
multi_absorp	Absoprtion of associated with the transport field
DT	Time step size
SUF_SIG_DIAGTEN_BC	Like upwnd but for the boundary
VOLFRA_PORE	Porosity field (Mdimsnpres,Mdimstotele)
IGOT_T2	!>
IGOT_T2.	True (1) if solving for a tracer, false otherwise
igot_theta_flux	????
GET_THETA_FLUX,USE_THETA_FLUX	?????
THETA_GDIFF	????
eles_with_pipe	Elements that have a pipe
pipes_aux	Information required to define wells
mass_ele_transp	Mass of the elements
THETA_FLUX,ONE_M_THETA_FLUX,THETA_FLUX_J,ONE_M_THETA_FLUX_J	????
icomp	Number of components, if > 0 then compositional is solved
saturation	PhaseVolumeFraction field
Permeability_tensor_field	Permeability field param nonlinear_iteration Current non-linear iteration

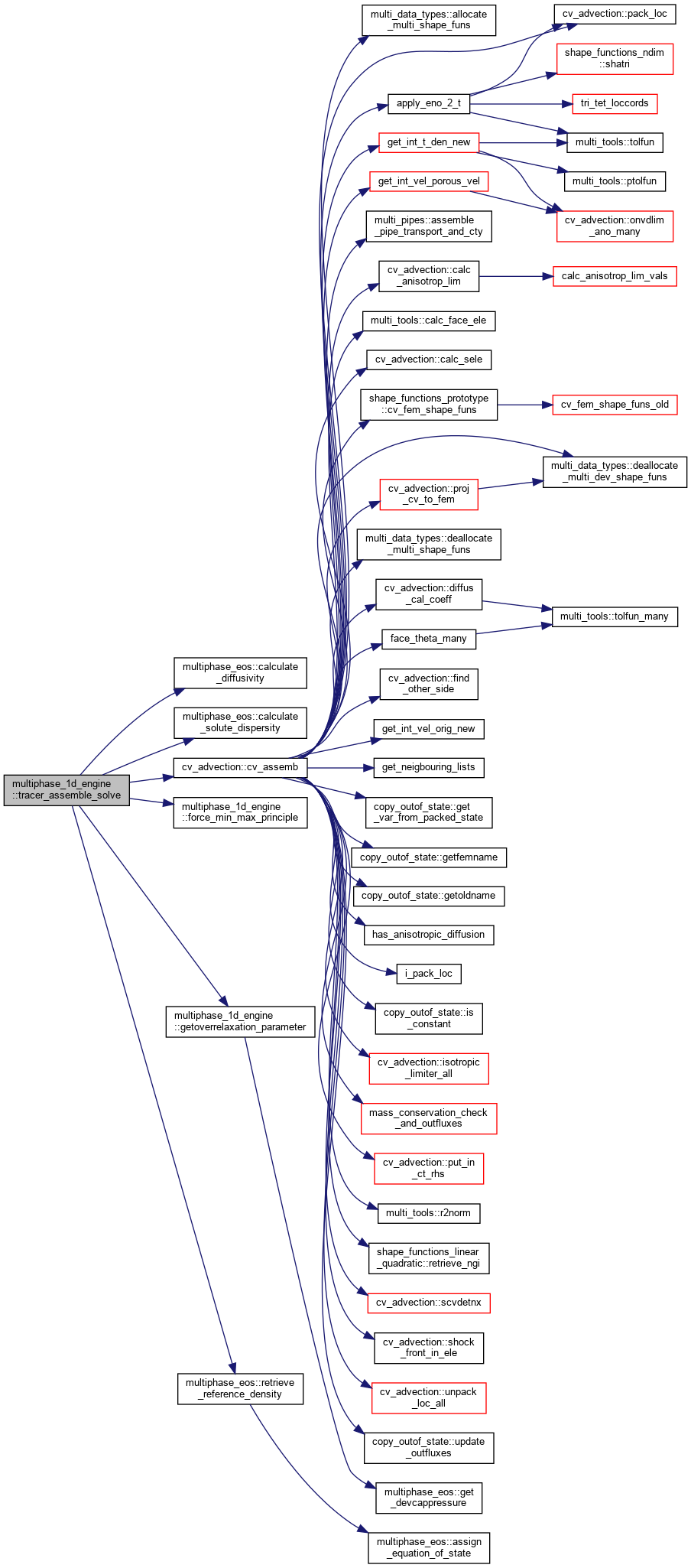

Here is the call graph for this function:

Here is the caller graph for this function:

◆ use_posinmat_c_store()

subroutine multiphase_1d_engine::use_posinmat_c_store	(	integer, intent(inout)	COUNT,
		integer, intent(in)	U_INOD,
		integer, intent(in)	P_JNOD,
		integer, intent(in)	U_NONODS,
		integer, dimension( u_nonods + 1), intent(in)	FINDC,
		integer, dimension( ncolc), intent(in)	COLC,
		integer, intent(in)	NCOLC,
		integer, intent(in)	IDO_STORE_AC_SPAR_PT,
		logical, intent(in)	STORED_AC_SPAR_PT,
		integer, dimension( u_nloc,p_nloc, totele*ido_store_ac_spar_pt), intent(inout)	POSINMAT_C_STORE,
		integer, intent(in)	ELE,
		integer, intent(in)	U_ILOC,
		integer, intent(in)	P_JLOC,
		integer, intent(in)	TOTELE,
		integer, intent(in)	U_NLOC,
		integer, intent(in)	P_NLOC
	)

Used to assemble the C matrix in the ICFERST format.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ use_posinmat_c_store_suf_dg()

subroutine multiphase_1d_engine::use_posinmat_c_store_suf_dg	(	integer, intent(inout)	COUNT,
		integer, intent(in)	U_INOD,
		integer, intent(in)	P_JNOD,
		integer, intent(in)	U_NONODS,
		integer, dimension( u_nonods + 1), intent(in)	FINDC,
		integer, dimension( ncolc), intent(in)	COLC,
		integer, intent(in)	NCOLC,
		integer, intent(in)	IDO_STORE_AC_SPAR_PT,
		logical, intent(in)	STORED_AC_SPAR_PT,
		integer, dimension( u_snloc,p_snloc,nface,totele*ido_store_ac_spar_pt ), intent(inout)	POSINMAT_C_STORE_SUF_DG,
		integer, intent(in)	ELE,
		integer, intent(in)	IFACE,
		integer, intent(in)	U_SILOC,
		integer, intent(in)	P_SJLOC,
		integer, intent(in)	TOTELE,
		integer, intent(in)	NFACE,
		integer, intent(in)	U_SNLOC,
		integer, intent(in)	P_SNLOC
	)

Used to assemble the C matrix in the ICFERST format (for DG?)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ viscocity_tensor_les_calc()

subroutine multiphase_1d_engine::viscocity_tensor_les_calc	(	real, dimension( ndim, ndim, nphase, mat_nonods ), intent(inout)	LES_UDIFFUSION,
		real, dimension( nphase, mat_nonods ), intent(inout)	LES_UDIFFUSION_VOL,
		real, dimension( ndim, ndim, nphase, u_nloc, totele ), intent(in)	DUX_ELE_ALL,
		integer, intent(in)	NDIM,
		integer, intent(in)	NPHASE,
		integer, intent(in)	U_NLOC,
		integer, intent(in)	X_NLOC,
		integer, intent(in)	TOTELE,
		integer, intent(in)	X_NONODS,
		real, dimension( ndim, x_nonods ), intent(in)	X_ALL,
		integer, dimension( x_nloc * totele ), intent(in)	X_NDGLN,
		integer, intent(in)	MAT_NONODS,
		integer, intent(in)	MAT_NLOC,
		integer, dimension( mat_nloc * totele ), intent(in)	MAT_NDGLN,
		integer, intent(in)	LES_DISOPT,
		real, intent(in)	LES_CS,
		real, dimension( nphase, cv_nonods ), intent(in)	UDEN,
		integer, intent(in)	CV_NONODS,
		integer, dimension( mat_nloc * totele ), intent(in)	CV_NDGLN,
		integer, dimension( u_nloc * totele ), intent(in)	U_NDGLN,
		integer, intent(in)	U_NONODS,
		real, dimension( ndim, nphase, u_nonods ), intent(in)	U_ALL,
		real, dimension( nphase, cv_nonods ), intent(in)	DERIV
	)

: <FOR INERTIA ONLY> This subroutine calculates a tensor of viscocity LES_UDIFFUSION, LES_UDIFFUSION_VOL

Here is the call graph for this function:

Here is the caller graph for this function:

◆ volumefraction_assemble_solve()

subroutine, public multiphase_1d_engine::volumefraction_assemble_solve	(	type( state_type ), dimension( : ), intent(inout)	state,
		type( state_type )	packed_state,
		type( state_type ), dimension( : ), intent(inout)	multicomponent_state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_gi_dimensions), intent(in)	CV_GIdims,
		type(multi_shape_funs), intent(inout)	CV_funs,
		type(multi_sparsities), intent(in)	Mspars,
		type(multi_ndgln), intent(in)	ndgln,
		type (multi_discretization_opts)	Mdisopt,
		type (multi_matrices), intent(inout)	Mmat,
		type(multi_absorption), intent(inout)	multi_absorp,
		type (porous_adv_coefs), intent(inout)	upwnd,
		type(pipe_coords), dimension(:), intent(in)	eles_with_pipe,
		type (multi_pipe_package), intent(in)	pipes_aux,
		real, intent(in)	DT,
		real, dimension( :, : ), intent(inout)	SUF_SIG_DIAGTEN_BC,
		real, dimension( :, : ), intent(in)	V_SOURCE,
		real, dimension( :, : ), intent(in)	VOLFRA_PORE,
		integer, intent(in)	igot_theta_flux,
		real, dimension( : ), intent(inout)	mass_ele_transp,
		integer, intent(in)	nonlinear_iteration,
		integer, intent(in)	time_step,
		integer, intent(inout)	SFPI_taken,
		integer, intent(inout)	SFPI_its,
		real, dimension(:), intent(inout)	Courant_number,
		real, dimension( :, :), intent(inout)	THETA_FLUX,
		real, dimension( :, :), intent(inout)	ONE_M_THETA_FLUX,
		real, dimension( :, :), intent(inout)	THETA_FLUX_J,
		real, dimension( :, :), intent(inout)	ONE_M_THETA_FLUX_J
	)

Calls to generate the transport equation for the saturation. Embeded an FPI with backtracking method is uncluded.

Author: Chris Pain, Pablo Salinas

Parameters

state	Linked list containing all the fields defined in diamond and considered by Fluidity
packed_state	Linked list containing all the fields used by IC-FERST, memory partially shared with state
multicomponent_state	Linked list containing all the fields used by compositional, just in case we are solving for components >
Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
CV_GIdims	Gauss integration numbers for CV fields
CV_funs	Shape functions for the CV mesh
Mspars	Sparsity of the matrices
ndgln	Global to local variables
Mdisopt	Discretisation options
Mmat	Matrices for ICFERST
multi_absorp	Absoprtion of associated with the transport field
upwnd	Sigmas to compute the fluxes at the interphase for porous media
eles_with_pipe	Elements that have a pipe
pipes_aux	Information required to define wells
DT	Time step size
SUF_SIG_DIAGTEN_BC	Like upwnd but for the boundary
V_SOURCE	Source term
VOLFRA_PORE	Porosity field (Mdimsnpres,Mdimstotele)
igot_theta_flux	????
mass_ele_transp	Mass of the elements
nonlinear_iteration	Current non-linear iteration
time_step	current time-step
SFPI_its	Number of saturation fixed point iterations taken
Courant_number	Global courant number and shock front courant number
THETA_FLUX,ONE_M_THETA_FLUX,THETA_FLUX_J,ONE_M_THETA_FLUX_J	????

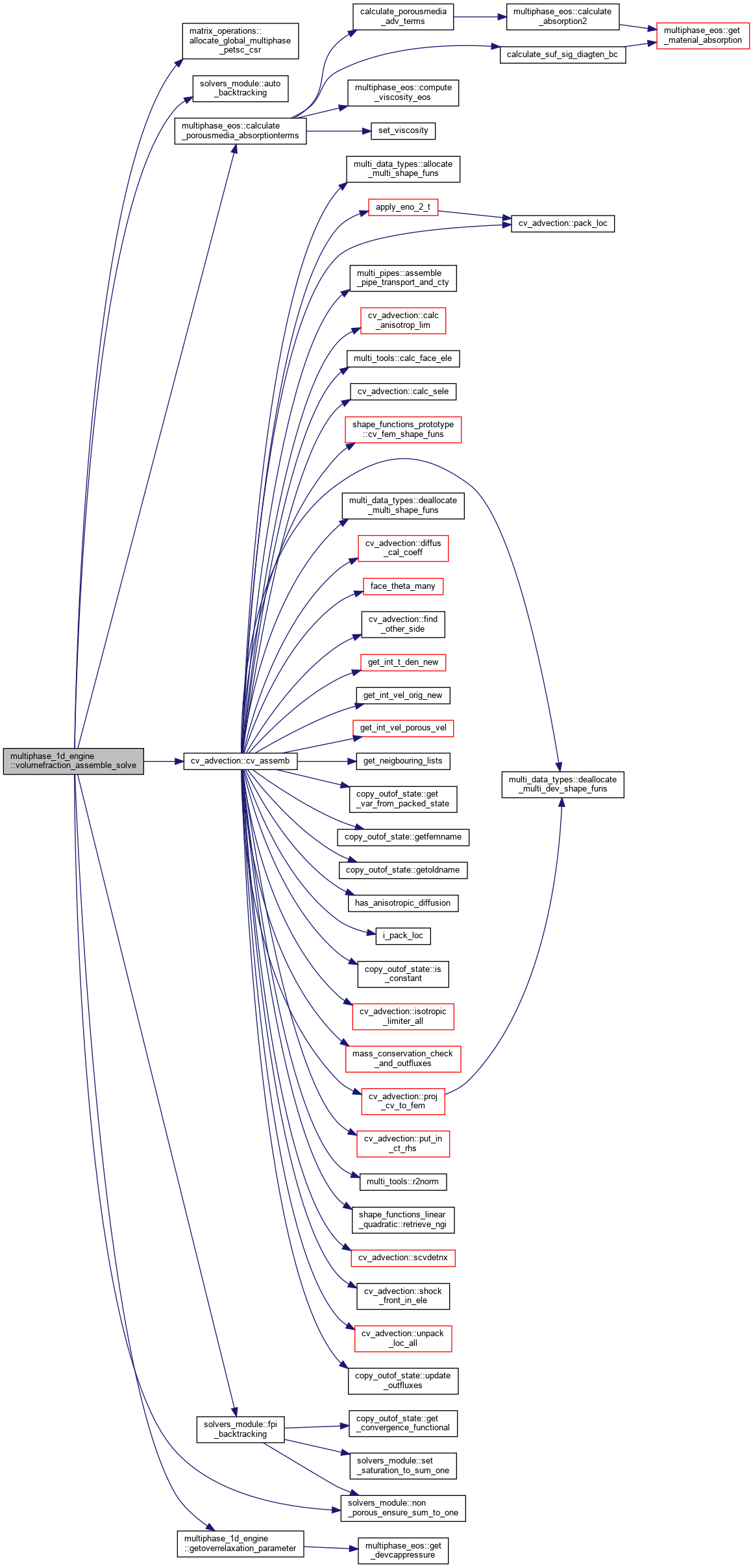

Here is the call graph for this function:

Here is the caller graph for this function:

Functions/Subroutines

Detailed Description

Function/Subroutine Documentation

◆ ai_backtracking_parameters()

◆ comb_vel_matrix_diag_dist()

◆ comb_vel_matrix_diag_dist_lump()

◆ compositional_assemble_solve()

◆ dg_oscilat_detect()

◆ dg_visc_lin()

◆ diffus_cal_coeff_stress_or_tensor()

◆ force_bal_cty_assem_solve()

◆ force_min_max_principle()

◆ generate_and_solve_laplacian_system()

◆ getoverrelaxation_parameter()

◆ high_order_pressure_solve()

◆ impose_strong_bcs_wells()

◆ intenerge_assem_solve()

◆ introduce_grad_rhs_field_term()

◆ linearise_field()

◆ p0_dg_oscilat_detect()

◆ tracer_assemble_solve()

◆ use_posinmat_c_store()

◆ use_posinmat_c_store_suf_dg()

◆ viscocity_tensor_les_calc()

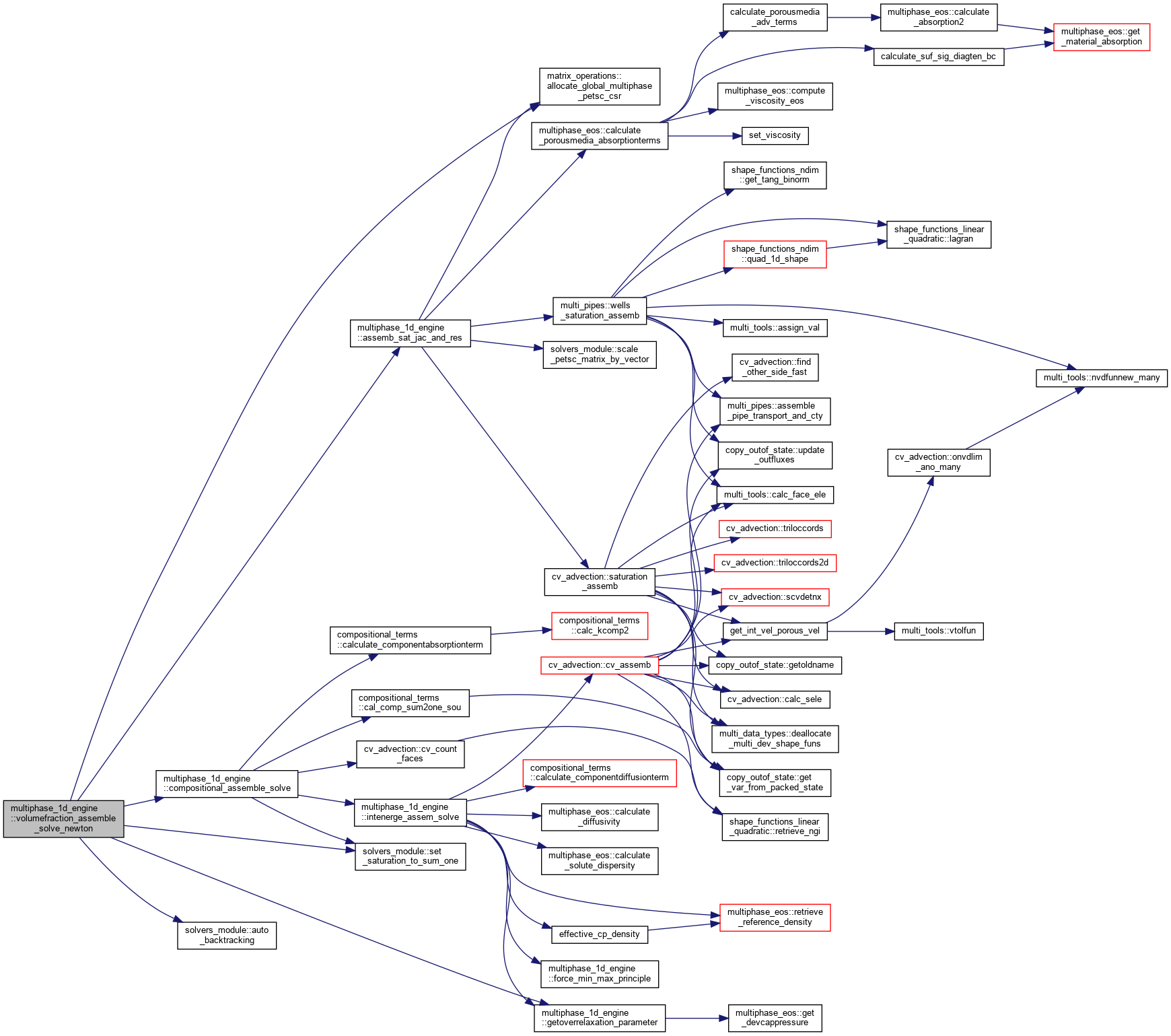

◆ volumefraction_assemble_solve()
