This module contains all the tools to assemble and solve the equations and fields associated with the CV mesh, i.e. transport equation, continuity equation, DCVFE gradient matrix and the Laplacian system for the zeta-potential. More...
Data Types | |
| interface | dg_derivs_all |
| calculates derivatives of vector fields More... | |
| interface | pack_loc_all |
| Packs field together to be later on used for high order computations. More... | |
Functions/Subroutines | |
| subroutine | cv_assemb (state, packed_state, final_phase, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, Mdisopt, Mmat, upwnd, tracer, velocity, density, multi_absorp, DIAG_SCALE_PRES, DIAG_SCALE_PRES_COUP, INV_B, DEN_ALL, DENOLD_ALL, CV_DISOPT, CV_DG_VEL_INT_OPT, DT, CV_THETA, CV_BETA, SUF_SIG_DIAGTEN_BC, DERIV, CV_P, SOURCT_ALL, ABSORBT_ALL, VOLFRA_PORE, GETCV_DISC, GETCT, IGOT_T2, IGOT_THETA_FLUX, GET_THETA_FLUX, USE_THETA_FLUX, THETA_FLUX, ONE_M_THETA_FLUX, THETA_FLUX_J, ONE_M_THETA_FLUX_J, THETA_GDIFF, MEAN_PORE_CV, MASS_MN_PRES, THERMAL, got_free_surf, MASS_SUF, MASS_ELE_TRANSP, TDIFFUSION, saturation, VAD_parameter, Phase_with_Pc, Courant_number, Permeability_tensor_field, calculate_mass_delta, eles_with_pipe, pipes_aux, porous_heat_coef, porous_heat_coef_old, outfluxes, solving_compositional, nonlinear_iteration, assemble_collapsed_to_one_phase) |
| This subroutines generates the transport equation for a cv field. It also can generate the Continuity equation if GETCT = .true. and also generate the gradient matrix of the momentum equation for the DCVFE method if the option is activated. More... | |
| pure subroutine | onvdlim_ano_many (NFIELD, TDLIM, TDCEN, INCOME, ETDNEW_PELE, ETDNEW_PELEOT, XI_LIMIT, TUPWIN, TUPWI2, DENOIN, CTILIN, DENOOU, CTILOU, FTILIN, FTILOU) |
| This sub calculates the limited face values TDADJ(1...SNGI) from the central difference face values TDCEN(1...SNGI) using a NVD shceme. INCOME(1...SNGI)=1 for incomming to element ELE else =0. LIBETA is the flux limiting parameter. TDMAX(PELE)=maximum of the surrounding 6 element values of element PELE. TDMIN(PELE)=minimum of the surrounding 6 element values of element PELE. PELEOT=element at other side of current face. ELEOT2=element at other side of the element ELEOTH. ELESID=element next to oposing current face. DENOIN, CTILIN, DENOOU, CTILOU, FTILIN, FTILOU => memory The elements are arranged in this order: ELEOT2,ELE, PELEOT, ELESID. More... | |
| subroutine | is_field_constant (IGOT_T_CONST, IGOT_T_CONST_VALUE, T_ALL, CV_NONODS) |
| Checks whether a field is constant or not. Although I think this check is terrible, no alternatives have provided the same functionality so far. More... | |
| subroutine | pack_loc (LOC_F, T_ALL, NPHASE, IPT, IGOT_T_PACK) |
| Copies memory into the same large array to then perform a projection from CV to FE. More... | |
| subroutine | unpack_loc (LOC_F, T_ALL, NPHASE, IPT, IGOT_T_PACK, IGOT_T_CONST, IGOT_T_CONST_VALUE) |
| If PACK then UNpack loc_f into T_ALL as long at IGOT_T==1 and STORE and not already in storage. More... | |
| subroutine | pack_or_unpack_loc (LOC_F, T_ALL, NPHASE, NFIELD, IPT, PACK, STORE, IGOT_T) |
| If PACK then pack T_ALL into LOC_F as long at IGOT_T==1 and STORE and not already in storage. More... | |
| subroutine | pack_loc_all1 (LOC_F, field1, oldfield1, field2, oldfield2, field3, oldfield3, IGOT_T_PACK, use_volume_frac_T2, nfield) |
| This subroutine is for fields that have already size final_phase - 1 Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once. More... | |
| subroutine | pack_loc_all2 (LOC_F, field1, oldfield1, field2, oldfield2, field3, oldfield3, IGOT_T_PACK, use_volume_frac_T2, start_phase, final_phase, nodi) |
| This subrotuine is for fields that are bigger than final_phase - start_phase Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once. More... | |
| subroutine | pack_loc_all3 (LOC_F, field1, oldfield1, field2, oldfield2, field3, oldfield3, IGOT_T_PACK, use_volume_frac_T2, start_phase, final_phase, nodi) |
| This subrotuine is for fields that are bigger than final_phase - start_phase Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once. This one is for integer fields. More... | |
| subroutine | i_pack_loc (LOC_F, T_ALL, NPHASE, IPT, IGOT_T_PACK) |
| If PACK then pack T_ALL into LOC_F as long at IGOT_T==1 and STORE and not already in storage. More... | |
| subroutine | unpack_loc_all (LOC_F, field1, oldfield1, field2, oldfield2, field3, oldfield3, IGOT_T_PACK, IGOT_T_CONST, IGOT_T_CONST_VALUE, use_volume_frac_T2, nfield) |
| If PACK then UNpack loc_f into T_ALL as long at IGOT_T==1 and STORE and not already in storage. Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the LOC_F into the field or use a constant value. This is after the limiters have been applied. More... | |
| integer function | cv_count_faces (Mdims, CV_ELE_TYPE, CV_GIdims) |
| This subroutine counts then number of faces in the control volume space. More... | |
| subroutine | find_other_side (CV_OTHER_LOC, CV_NLOC, U_OTHER_LOC, U_NLOC, MAT_OTHER_LOC, INTEGRAT_AT_GI, X_NLOC, XU_NLOC, X_NDGLN, XU_NDGLN, CV_SNLOC, CVFEM_ON_FACE, X_SHARE, ELE, ELE2, FINELE, COLELE, DISTCONTINUOUS_METHOD) |
| We are on the boundary or next to another element. Determine CV_OTHER_LOC, U_OTHER_LOC. CVFEM_ON_FACE(CV_KLOC,GI)=.TRUE. if CV_KLOC is on the face that GI is centred on. Look for these nodes on the other elements. ELE2=0 also when we are between elements but are trying to integrate across the middle of a CV. More... | |
| subroutine | proj_cv_to_fem (packed_state, fempsi, psi, Mdims, CV_GIdims, CV_funs, Mspars, ndgln, igetct, X, mass_ele, mass_mn_pres, tracer, psi_ave, psi_int, activate_limiters) |
| Calls to generate the transport equation for the saturation. Embeded an FPI with backtracking method is uncluded Subroutine description: (1) determine FEMT (finite element wise) etc from T (control volume wise) (2) (optional) calculate psi_int (area) and psi_ave (barycentre) over each CV. More... | |
| subroutine | dg_derivs_all1 (FEMT, FEMTOLD, DTX_ELE, DTOLDX_ELE, NDIM, NPHASE, NCOMP, TOTELE, CV_NDGLN, XCV_NDGLN, X_NLOC, X_NDGLN, CV_NGI, CV_NLOC, CVWEIGHT, N, NLX, NLY, NLZ, X_N, X_NLX, X_NLY, X_NLZ, X_NONODS, X, Y, Z, NFACE, FACE_ELE, CV_SLOCLIST, X_SLOCLIST, CV_SNLOC, X_SNLOC, WIC_T_BC, SUF_T_BC, SBCVNGI, SBCVFEN, SBWEIGH, X_SBCVFEN, X_SBCVFENSLX, X_SBCVFENSLY, get_gradU, state, P0Mesh) |
| calculates derivatives of vector fields More... | |
| subroutine | dg_derivs_all2 (FEMT, FEMTOLD, DTX_ELE, DTOLDX_ELE, NDIM, NPHASE, TOTELE, CV_NDGLN, XCV_NDGLN, X_NLOC, X_NDGLN, CV_NGI, CV_NLOC, CVWEIGHT, N, NLX, NLY, NLZ, X_N, X_NLX, X_NLY, X_NLZ, X_NONODS, X, Y, Z, NFACE, FACE_ELE, CV_SLOCLIST, X_SLOCLIST, CV_SNLOC, X_SNLOC, WIC_T_BC, SUF_T_BC, SBCVNGI, SBCVFEN, SBWEIGH, X_SBCVFEN, X_SBCVFENSLX, X_SBCVFENSLY, P0Mesh) |
| Computes the derivatives of vector fields. More... | |
| subroutine | diffus_cal_coeff (DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX, CV_NLOC, MAT_NLOC, NPHASE, MAT_NDGLN, SMATFEN, SCVFEN, GI, NDIM, TDIFFUSION, HDC, T_CV_NODJ, T_CV_NODI, TOLD_CV_NODJ, TOLD_CV_NODI, ELE, ELE2, CVNORMX_ALL, LOC_DTX_ELE_ALL, LOC_DTOLDX_ELE_ALL, LOC2_DTX_ELE_ALL, LOC2_DTOLDX_ELE_ALL, LOC_WIC_T_BC, CV_OTHER_LOC, MAT_OTHER_LOC, CV_SNLOC, CV_SLOC2LOC, on_domain_boundary, between_elements, has_anisotropic_diffusivity) |
| This sub calculates the effective diffusion coefficientd DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX based on a non-linear method and a non-oscillating scheme. It requires the derivatives of the field obtained using DG_DERIVS_ALL DG_DERIVS_ALL. More... | |
| subroutine | linear_high_diffus_cal_coeff_stress_or_tensor (STRESS_IJ_ELE_EXT, S_INV_NNX_MAT12, STRESS_FORM, STRESS_FORM_STAB, ZERO_OR_TWO_THIRDS, U_SNLOC, U_NLOC, CV_SNLOC, NPHASE, SBUFEN_REVERSED, SBCVFEN_REVERSED, SDETWEI, SBCVNGI, NDIM, SLOC_UDIFFUSION, SLOC_UDIFFUSION_VOL, SLOC2_UDIFFUSION, SLOC2_UDIFFUSION_VOL, DIFF_GI_ADDED, ON_BOUNDARY, SNORMXN_ALL) |
| This sub calculates the effective diffusion coefficientd STRESS_IJ_ELE_EXT it only works for between element contributions. based on a high order scheme. The matrix S_INV_NNX_MAT12 is used to calculate the rows of the matrix with STRESS_IJ_ELE_EXT. This implements the stress and tensor form of diffusion and calculates a jump conidition. which is in DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX The coefficient are in N_DOT_DKDU, N_DOT_DKDUOLD. look at the manual DG treatment of viscocity. More... | |
| subroutine | calc_stress_ten (STRESS_IJ, ZERO_OR_TWO_THIRDS, NDIM, UFENX_ILOC, UFENX_JLOC, TEN_XX, TEN_VOL) |
| determine stress form of viscocity... More... | |
| subroutine | calc_stress_ten_reduce (STRESS_IJ, ZERO_OR_TWO_THIRDS, NDIM, FEN_TEN_XX, FEN_TEN_VOL, UFENX_JLOC) |
| determine stress form of viscocity... More... | |
| subroutine | cal_lim_vol_adjust (TMIN_STORE, TMIN, T, TMIN_NOD, RESET_STORE, MASS_CV, CV_NODI_IPHA, CV_NODJ_IPHA, IPHASE, CV_NONODS, INCOME) |
| Adjust TMIN to take into account different sized CV's. if RESET_STORE then reset TMIN to orginal values. More... | |
| subroutine | dgsimplnorm_all (NLOC, SNLOC, NDIM, XL_ALL, XSL_ALL, NORMX_ALL) |
| Form approximate surface normal (NORMX_ALL(1),NORMX_ALL(2),NORMX_ALL(3)) More... | |
| subroutine | dgsimplnorm (ELE, SILOC2ILOC, NLOC, SNLOC, XONDGL, X, Y, Z, NORMX, NORMY, NORMZ) |
| Form approximate surface normal (NORMX,NORMY,NORMZ) More... | |
| subroutine | isotropic_limiter_all (T_ALL, TOLD_ALL, T2_ALL, T2OLD_ALL, DEN_ALL, DENOLD_ALL, IGOT_T2, NPHASE, CV_NONODS, nsmall_colm, SMALL_CENTRM, SMALL_FINDRM, SMALL_COLM, STOTEL, CV_SNLOC, CV_SNDGLN, SUF_T_BC_ALL, SUF_T2_BC_ALL, SUF_D_BC_ALL, WIC_T_BC_ALL, WIC_T2_BC_ALL, WIC_D_BC_ALL, MASS_CV, TOLDUPWIND_MAT_ALL, DENOLDUPWIND_MAT_ALL, T2OLDUPWIND_MAT_ALL, TUPWIND_MAT_ALL, DENUPWIND_MAT_ALL, T2UPWIND_MAT_ALL) |
| Computes the limited values at the interface, not as generic as the anisotropic one and never used actually... More... | |
| subroutine | calc_sele (ELE, ELE3, SELE, CV_SILOC, CV_ILOC, U_SLOC2LOC, CV_SLOC2LOC, FACE_ELE, gi, CV_funs, Mdims, CV_GIdims, CV_NDGLN, U_NDGLN, CV_SNDGLN, U_SNDGLN) |
| Calculate surface element, surface control volume: SELE, CV_SILOC, U_SLOC2LOC, CV_SLOC2LOC for a face on the boundary of the domain. More... | |
| subroutine | put_in_ct_rhs (GET_C_IN_CV_ADVDIF_AND_CALC_C_CV, ct_rhs_phase_cv_nodi, ct_rhs_phase_cv_nodj, final_phase, Mdims, CV_funs, ndgln, Mmat, GI, between_elements, on_domain_boundary, ELE, ELE2, SELE, HDC, MASS_ELE, JCOUNT_KLOC, JCOUNT_KLOC2, ICOUNT_KLOC, ICOUNT_KLOC2, C_JCOUNT_KLOC, C_JCOUNT_KLOC2, C_ICOUNT_KLOC, C_ICOUNT_KLOC2, U_OTHER_LOC, U_SLOC2LOC, CV_SLOC2LOC, SCVDETWEI, CVNORMX_ALL, DEN_ALL, CV_NODI, CV_NODJ, WIC_U_BC_ALL, WIC_P_BC_ALL, SUF_P_BC_ALL, UGI_COEF_ELE_ALL, UGI_COEF_ELE2_ALL, NDOTQ, NDOTQOLD, LIMT, LIMDT, LIMDTOLD, LIMT_HAT, NDOTQ_HAT, FTHETA_T2, ONE_M_FTHETA_T2OLD, FTHETA_T2_J, ONE_M_FTHETA_T2OLD_J, integrate_other_side_and_not_boundary, loc_u, THETA_VEL, UDGI_IMP_ALL, RCON, RCON_J, NDOTQ_IMP, X_ALL, SUF_D_BC_ALL, gravty) |
| This subroutine caculates the discretised cty eqn acting on the velocities i.e. MmatCT, MmatCT_RHS It also computes the gradient matrix using the DCVFE method. More... | |
| subroutine | calc_anisotrop_lim (Mmat, T_ALL, TOLD_ALL, DEN_ALL, DENOLD_ALL, T2_ALL, T2OLD_ALL, FEMT_ALL, FEMTOLD_ALL, FEMDEN_ALL, FEMDENOLD_ALL, FEMT2_ALL, FEMT2OLD_ALL, USE_FEMT, TUPWIND_MAT_ALL, TOLDUPWIND_MAT_ALL, DENUPWIND_MAT_ALL, DENOLDUPWIND_MAT_ALL, T2UPWIND_MAT_ALL, T2OLDUPWIND_MAT_ALL, IGOT_T2, NPHASE, CV_NONODS, CV_NLOC, TOTELE, CV_NDGLN, SMALL_FINDRM, SMALL_CENTRM, SMALL_COLM, NSMALL_COLM, X_NDGLN, X_NONODS, NDIM, X_ALL, XC_CV_ALL, use_reflect) |
| For the anisotropic limiting scheme we find the upwind values by interpolation using the subroutine FINPTS or IFINPTS; the upwind value for each node pair is stored in the matrices TUPWIND AND. More... | |
| subroutine | triloccords (Xp, Yp, Zp, N1, N2, N3, N4, X1, Y1, Z1, X2, Y2, Z2, X3, Y3, Z3, X4, Y4, Z4) |
| subroutine | triloccords2d (Xp, Yp, N1, N2, N3, X1, Y1, X2, Y2, X3, Y3) |
| logical function | shock_front_in_ele (ele, Mdims, sat, ndgln, Imble_frac) |
| Detects whether the element has a shockfront or not. More... | |
| subroutine | generate_laplacian_system (Mdims, packed_state, ndgln, Mmat, Mspars, CV_funs, CV_GIdims, Sigma_field, Solution, K_fields, F_fields, intface_val_type) |
| : In this method we assemble and solve the Laplacian system using at least P1 elements The equation solved is the following: Div sigma Grad X = - SUM (Div K Grad F) with Neuman BCs = 0 where K and F are passed down as a vector. Therefore for n entries the SUM will be performed over n fields Example: F = (3, nphase, cv_nonods) would include three terms in the RHS and the same for K If harmonic average then we perform the harmonic average of sigma and K IMPORTANT: This subroutine requires the PHsparsity to be generated Note that this method solves considering FE fields. If using CV you may incur in an small error. More... | |
| subroutine | scvdetnx (Mdims, ndgln, X_ALL, CV_funs, CV_GIdims, on_domain_boundary, between_elements, ELE, GI, SCVDETWEI, CVNORMX_ALL, XC_ALL, X_NOD, X_NODJ) |
Variables | |
| integer, parameter | wic_t_bc_dirichlet = 1 |
| integer, parameter | wic_t_bc_robin = 2 |
| integer, parameter | wic_t_bc_diri_adv_and_robin = 3 |
| integer, parameter | wic_d_bc_dirichlet = 1 |
| integer, parameter | wic_u_bc_dirichlet = 1 |
| integer, parameter | wic_u_bc_robin = 2 |
| integer, parameter | wic_u_bc_diri_adv_and_robin = 3 |
| integer, parameter | wic_u_bc_dirichlet_inout = 2 |
| integer, parameter | wic_p_bc_dirichlet = 1 |
| integer, parameter | wic_p_bc_free = 2 |
This module contains all the tools to assemble and solve the equations and fields associated with the CV mesh, i.e. transport equation, continuity equation, DCVFE gradient matrix and the Laplacian system for the zeta-potential.
| subroutine cv_advection::cal_lim_vol_adjust | ( | real, intent(inout) | TMIN_STORE, |
| real, dimension( : ), intent(inout) | TMIN, | ||
| real, dimension( : ), intent(in) | T, | ||
| integer, dimension( : ), intent(in) | TMIN_NOD, | ||
| logical, intent(in) | RESET_STORE, | ||
| real, dimension( : ), intent(in) | MASS_CV, | ||
| integer, intent(in) | CV_NODI_IPHA, | ||
| integer, intent(in) | CV_NODJ_IPHA, | ||
| integer, intent(in) | IPHASE, | ||
| integer, intent(in) | CV_NONODS, | ||
| real, intent(in) | INCOME | ||
| ) |
Adjust TMIN to take into account different sized CV's. if RESET_STORE then reset TMIN to orginal values.
| subroutine cv_advection::calc_anisotrop_lim | ( | type (multi_matrices), intent(inout) | Mmat, |
| real, dimension( :, : ), intent(in) | T_ALL, | ||
| real, dimension( :, : ), intent(in) | TOLD_ALL, | ||
| real, dimension( :, : ), intent(in) | DEN_ALL, | ||
| real, dimension( :, : ), intent(in) | DENOLD_ALL, | ||
| real, dimension( :,:), intent(in), pointer | T2_ALL, | ||
| real, dimension( :,:), intent(in), pointer | T2OLD_ALL, | ||
| real, dimension( :, :), intent(in) | FEMT_ALL, | ||
| real, dimension( :, :), intent(in) | FEMTOLD_ALL, | ||
| real, dimension( :, :), intent(in) | FEMDEN_ALL, | ||
| real, dimension( :, :), intent(in) | FEMDENOLD_ALL, | ||
| real, dimension( :, :), intent(in) | FEMT2_ALL, | ||
| real, dimension( :, :), intent(in) | FEMT2OLD_ALL, | ||
| logical, intent(in) | USE_FEMT, | ||
| real, dimension( :, : ), intent(inout) | TUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | TOLDUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | DENUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | DENOLDUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | T2UPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | T2OLDUPWIND_MAT_ALL, | ||
| integer, intent(in) | IGOT_T2, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(in) | CV_NONODS, | ||
| integer, intent(in) | CV_NLOC, | ||
| integer, intent(in) | TOTELE, | ||
| integer, dimension( : ), intent(in) | CV_NDGLN, | ||
| integer, dimension( : ), intent(in) | SMALL_FINDRM, | ||
| integer, dimension( : ), intent(in) | SMALL_CENTRM, | ||
| integer, dimension( : ), intent(in) | SMALL_COLM, | ||
| integer, intent(in) | NSMALL_COLM, | ||
| integer, dimension(: ), intent(in) | X_NDGLN, | ||
| integer, intent(in) | X_NONODS, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( :,: ), intent(in) | X_ALL, | ||
| real, dimension( ndim, cv_nonods), intent(in) | XC_CV_ALL, | ||
| logical, intent(in) | use_reflect | ||
| ) |
For the anisotropic limiting scheme we find the upwind values by interpolation using the subroutine FINPTS or IFINPTS; the upwind value for each node pair is stored in the matrices TUPWIND AND.
| subroutine cv_advection::calc_sele | ( | integer, intent(in) | ELE, |
| integer, intent(inout) | ELE3, | ||
| integer, intent(inout) | SELE, | ||
| integer, intent(inout) | CV_SILOC, | ||
| integer, intent(in) | CV_ILOC, | ||
| integer, dimension( : ), intent(inout) | U_SLOC2LOC, | ||
| integer, dimension( : ), intent(inout) | CV_SLOC2LOC, | ||
| integer, dimension( :, : ), intent(in) | FACE_ELE, | ||
| integer, intent(in) | gi, | ||
| type(multi_shape_funs), intent(in) | CV_funs, | ||
| type(multi_dimensions), intent(in) | Mdims, | ||
| type(multi_gi_dimensions), intent(in) | CV_GIdims, | ||
| integer, dimension( : ), intent(in) | CV_NDGLN, | ||
| integer, dimension( : ), intent(in) | U_NDGLN, | ||
| integer, dimension( : ), intent(in) | CV_SNDGLN, | ||
| integer, dimension( : ), intent(in) | U_SNDGLN | ||
| ) |
Calculate surface element, surface control volume: SELE, CV_SILOC, U_SLOC2LOC, CV_SLOC2LOC for a face on the boundary of the domain.
| subroutine cv_advection::calc_stress_ten | ( | real, dimension( :, : ), intent(inout) | STRESS_IJ, |
| real, intent(in) | ZERO_OR_TWO_THIRDS, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( : ), intent(in) | UFENX_ILOC, | ||
| real, dimension( : ), intent(in) | UFENX_JLOC, | ||
| real, dimension( :,: ), intent(in) | TEN_XX, | ||
| real, intent(in) | TEN_VOL | ||
| ) |
determine stress form of viscocity...
| subroutine cv_advection::calc_stress_ten_reduce | ( | real, dimension( ndim, ndim ), intent(inout) | STRESS_IJ, |
| real, intent(in) | ZERO_OR_TWO_THIRDS, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( ndim, ndim ), intent(in) | FEN_TEN_XX, | ||
| real, dimension( ndim ), intent(in) | FEN_TEN_VOL, | ||
| real, dimension( ndim ), intent(in) | UFENX_JLOC | ||
| ) |
determine stress form of viscocity...

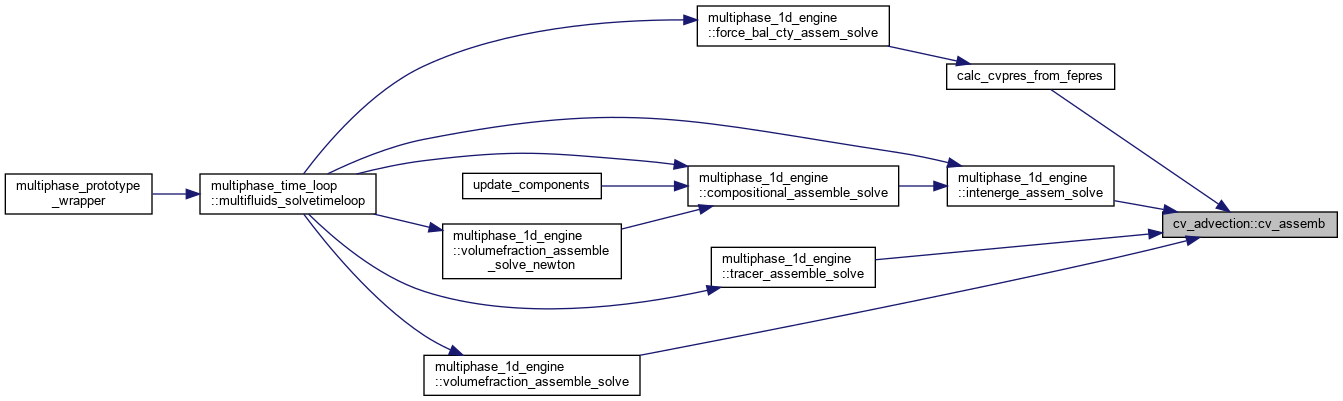

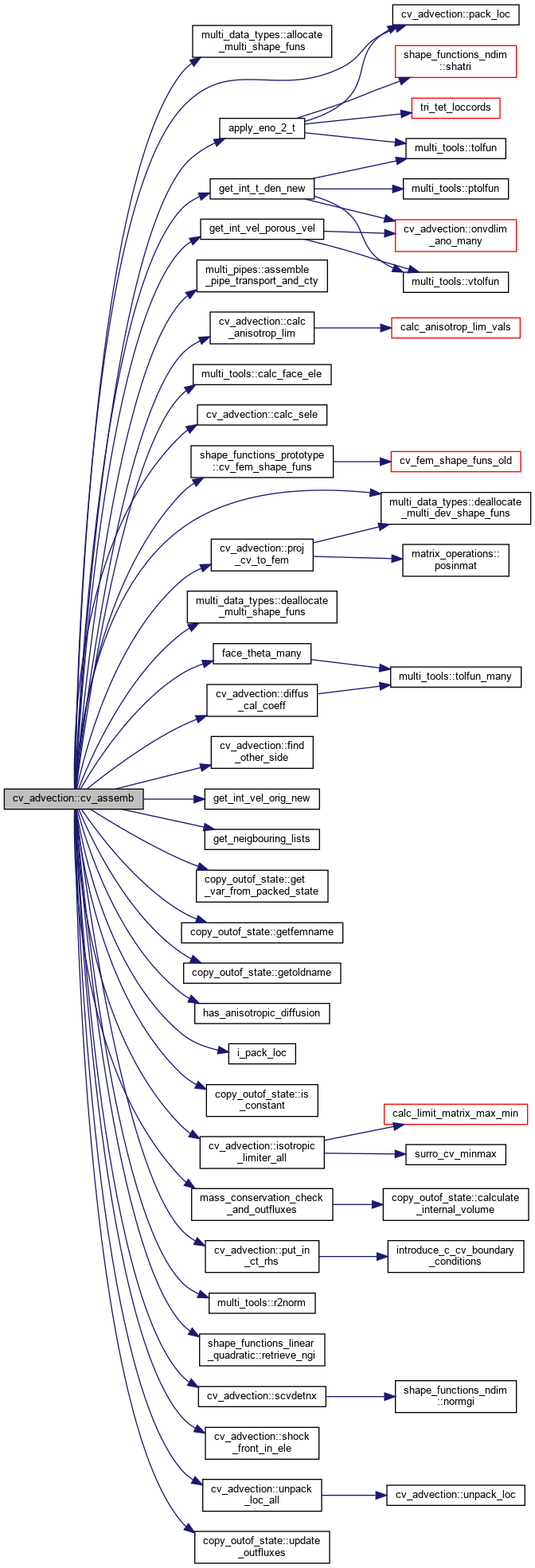

| subroutine cv_advection::cv_assemb | ( | type( state_type ), dimension( : ), intent(inout) | state, |
| type( state_type ), intent(inout) | packed_state, | ||
| integer, intent(in) | final_phase, | ||
| type(multi_dimensions), intent(in) | Mdims, | ||
| type(multi_gi_dimensions), intent(in) | CV_GIdims, | ||
| type(multi_shape_funs), intent(inout) | CV_funs, | ||
| type(multi_sparsities), intent(in) | Mspars, | ||
| type(multi_ndgln), intent(in) | ndgln, | ||
| type (multi_discretization_opts) | Mdisopt, | ||
| type (multi_matrices), intent(inout) | Mmat, | ||
| type (porous_adv_coefs), intent(inout) | upwnd, | ||
| type(tensor_field), intent(inout), target | tracer, | ||
| type(tensor_field), intent(in) | velocity, | ||
| type(tensor_field), intent(in), target | density, | ||
| type(multi_absorption), intent(inout) | multi_absorp, | ||
| real, dimension( :, : ), intent(inout), allocatable | DIAG_SCALE_PRES, | ||
| real, dimension( :, :, : ), intent(inout), allocatable | DIAG_SCALE_PRES_COUP, | ||
| real, dimension( :, :, : ), intent(inout), allocatable | INV_B, | ||
| real, dimension( :, : ), intent(inout), target | DEN_ALL, | ||
| real, dimension( :, : ), intent(inout) | DENOLD_ALL, | ||
| integer, intent(in) | CV_DISOPT, | ||
| integer, intent(in) | CV_DG_VEL_INT_OPT, | ||
| real, intent(in) | DT, | ||
| real, intent(in) | CV_THETA, | ||
| real, intent(in) | CV_BETA, | ||
| real, dimension( :, : ), intent(in) | SUF_SIG_DIAGTEN_BC, | ||
| real, dimension( :, : ), intent(in) | DERIV, | ||
| real, dimension( :, :, : ), intent(in) | CV_P, | ||
| real, dimension( :, : ), intent(in) | SOURCT_ALL, | ||
| real, dimension( :, :, : ), intent(in), pointer | ABSORBT_ALL, | ||
| real, dimension( :, : ), intent(in) | VOLFRA_PORE, | ||
| logical, intent(in) | GETCV_DISC, | ||
| logical, intent(in) | GETCT, | ||
| integer, intent(in) | IGOT_T2, | ||
| integer, intent(in) | IGOT_THETA_FLUX, | ||
| logical, intent(in) | GET_THETA_FLUX, | ||
| logical, intent(in) | USE_THETA_FLUX, | ||
| real, dimension( :, : ), intent(inout), optional | THETA_FLUX, | ||
| real, dimension( :, : ), intent(inout), optional | ONE_M_THETA_FLUX, | ||
| real, dimension( :, : ), intent(inout), optional | THETA_FLUX_J, | ||
| real, dimension( :, : ), intent(inout), optional | ONE_M_THETA_FLUX_J, | ||
| real, dimension( :, : ), intent(inout) | THETA_GDIFF, | ||
| real, dimension( :, : ), intent(inout) | MEAN_PORE_CV, | ||
| real, dimension( : ), intent(inout) | MASS_MN_PRES, | ||
| logical, intent(in) | THERMAL, | ||
| logical, intent(in) | got_free_surf, | ||
| real, dimension( : ), intent(inout) | MASS_SUF, | ||
| real, dimension( : ), intent(inout), optional | MASS_ELE_TRANSP, | ||
| real, dimension( :, :, :, : ), intent(in), optional | TDIFFUSION, | ||
| type(tensor_field), intent(in), optional, target | saturation, | ||
| real, dimension(:), intent(in), optional | VAD_parameter, | ||
| integer, intent(in), optional | Phase_with_Pc, | ||
| real, dimension(:), intent(inout), optional | Courant_number, | ||
| type( tensor_field ), intent(in), optional, pointer | Permeability_tensor_field, | ||
| real, dimension(:,:), optional | calculate_mass_delta, | ||
| type(pipe_coords), dimension(:), intent(in), optional | eles_with_pipe, | ||
| type (multi_pipe_package), intent(in) | pipes_aux, | ||
| real, dimension( :), intent(in), optional | porous_heat_coef, | ||
| real, dimension( :), intent(in), optional | porous_heat_coef_old, | ||
| type (multi_outfluxes), intent(inout), optional | outfluxes, | ||
| logical, intent(in), optional | solving_compositional, | ||
| integer, intent(in), optional | nonlinear_iteration, | ||
| logical, intent(in), optional | assemble_collapsed_to_one_phase | ||
| ) |
This subroutines generates the transport equation for a cv field. It also can generate the Continuity equation if GETCT = .true. and also generate the gradient matrix of the momentum equation for the DCVFE method if the option is activated.
| state | Linked list containing all the fields defined in diamond and considered by Fluidity |
| packed_state | Linked list containing all the fields used by IC-FERST, memory partially shared with state |
| final_phase | This is the final phase to be assembled, in this way we can assemble from phase 1 to final_phase not necessarily being for all the phases |
| Mdims | Data type storing all the dimensions describing the mesh, fields, nodes, etc |
| CV_GIdims | Gauss integration numbers for CV fields |
| FE_GIdims | Gauss integration numbers for FE fields |
| CV_funs | Shape functions for the CV mesh |
| FE_funs | Shape functions for the FE mesh |
| Mspars | Sparsity of the matrices |
| ndgln | Global to local variables |
| Mdisopt | Discretisation options |
| Mmat | Matrices for ICFERST |
| upwnd | Sigmas to compute the fluxes at the interphase for porous media |
| tracer | Tracer considered for the transport equation |
| density | Density of the field |
| velocity | Velocity of the field |
| multi_absorp | Absoprtion of associated with the transport field |
| CV_DISOPT,CV_DG_VEL_INT_OPT,IGOT_THETA_FLUX. | More Discretisation options |
| IGOT_T2. | True (1) if solving for a tracer, false otherwise |
| DIAG_SCALE_PRES | Diagonal scaling of (distributed) pressure matrix (used to treat pressure implicitly) |
| DIAG_SCALE_PRES_COUP | Diagonal scaling of (distributed) pressure matrix (for wells) |
| INV_B | Coupling term of the wells |
| MASS_MN_PRES | ?? |
| MASS_SUF | ?? |
| DEN_ALL | Density of the field, different memory to the input field density, used to apply the Boussinesq approximation |
| DENOLD_ALL | Density of the field, different memory to the input field density, used to apply the Boussinesq approximation |
| THETA_GDIFF | ! (nphase,Mdimscv_nonods) |
| THETA_FLUX,ONE_M_THETA_FLUX,THETA_FLUX_J,ONE_M_THETA_FLUX_J | |
| DT,CV_THETA,CV_BETA | Time step size and discretisation options |
| SUF_SIG_DIAGTEN_BC. | Like upwnd but for the boundary |
| DERIV | Derivative of the density against the pressure (nphase,Mdimscv_nonods) |
| CV_P | ! Control volume pressure, useless for the DCVFEM (1,Mdimsnpres,Mdimscv_nonods) |
| SOURCT_ALL | Source term of the tracer equation |
| ABSORBT_ALL | Absorption to be used here |
| VOLFRA_PORE | Porosity field (Mdimsnpres,Mdimstotele) |
| GETCV_DISC | obtain the transport equation |
| GETCT | obtain the continuity equation |
| GET_THETA_FLUX,USE_THETA_FLUX,got_free_surf??? | |
| THERMAL | true if solving for heat transport |
| MEAN_PORE_CV | Porosity defined control volume wise |
| MASS_ELE_TRANSP | Mass of the elements |
| saturation | PhaseVolumeFraction field |
| TDIFFUSION | Diffusion associated with the tracer field |
| Phase_with_Pc | Field that defines the capillary pressure, i.e. non-wetting phase |
| VAD_parameter | Vanishing artificial diffusion parameter |
| Courant_number | Obvious ins't it? |
| Permeability_tensor_field | Permeability field |
| calculate_mass_delta | Variable used to control the mass conservation of the system |
| eles_with_pipe | Elements that have a pipe |
| pipes_aux | Information required to define wells |
| porous_heat_coef,porous_heat_coef_old | includes an average of porous and fluid heat coefficients |
| solving_compositional | Solving for composition if true |
| assemble_collapsed_to_one_phase | Collapses phases and solves for one single temperature. When there is thermal equilibrium |
| outfluxes | Contains all the fields required to compute the outfluxes of the model and create the outfluxes.csv file. Computed when assembling the continuity equation |
| nonlinear_iteration | Current non-linear iteration |
| integer function cv_advection::cv_count_faces | ( | type(multi_dimensions), intent(in) | Mdims, |
| integer, intent(in) | CV_ELE_TYPE, | ||
| type( multi_gi_dimensions ), intent(in), optional | CV_GIdims | ||
| ) |
This subroutine counts then number of faces in the control volume space.
| subroutine cv_advection::dg_derivs_all1 | ( | real, dimension( :, :, : ), intent(in) | FEMT, |
| real, dimension( :, :, : ), intent(in) | FEMTOLD, | ||
| real, dimension( :, :, :, :, : ), intent(inout) | DTX_ELE, | ||
| real, dimension( :, :, :, :, : ), intent(inout) | DTOLDX_ELE, | ||
| integer, intent(in) | NDIM, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(in) | NCOMP, | ||
| integer, intent(in) | TOTELE, | ||
| integer, dimension( : ), intent(in) | CV_NDGLN, | ||
| integer, dimension( : ), intent(in) | XCV_NDGLN, | ||
| integer, intent(in) | X_NLOC, | ||
| integer, dimension( : ), intent(in) | X_NDGLN, | ||
| integer, intent(in) | CV_NGI, | ||
| integer, intent(in) | CV_NLOC, | ||
| real, dimension( : ), intent(in) | CVWEIGHT, | ||
| real, dimension( :, : ), intent(in) | N, | ||
| real, dimension( :, : ), intent(in) | NLX, | ||
| real, dimension( :, : ), intent(in) | NLY, | ||
| real, dimension( :, : ), intent(in) | NLZ, | ||
| real, dimension( :, : ), intent(in) | X_N, | ||
| real, dimension( :, : ), intent(in) | X_NLX, | ||
| real, dimension( :, : ), intent(in) | X_NLY, | ||
| real, dimension( :, : ), intent(in) | X_NLZ, | ||
| integer, intent(in) | X_NONODS, | ||
| real, dimension( : ), intent(in) | X, | ||
| real, dimension( : ), intent(in) | Y, | ||
| real, dimension( : ), intent(in) | Z, | ||
| integer, intent(in) | NFACE, | ||
| integer, dimension( :, : ), intent(in) | FACE_ELE, | ||
| integer, dimension( :, : ), intent(in) | CV_SLOCLIST, | ||
| integer, dimension( :, : ), intent(in) | X_SLOCLIST, | ||
| integer, intent(in) | CV_SNLOC, | ||
| integer, intent(in) | X_SNLOC, | ||
| integer, dimension( :, :, : ), intent(in) | WIC_T_BC, | ||
| real, dimension( :, :, : ), intent(in) | SUF_T_BC, | ||
| integer, intent(in) | SBCVNGI, | ||
| real, dimension( :, : ), intent(in) | SBCVFEN, | ||
| real, dimension( : ), intent(in) | SBWEIGH, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFEN, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFENSLX, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFENSLY, | ||
| logical, intent(in) | get_gradU, | ||
| type( state_type), dimension( : ), intent(inout) | state, | ||
| logical, optional | P0Mesh | ||
| ) |
calculates derivatives of vector fields
| subroutine cv_advection::dg_derivs_all2 | ( | real, dimension( :, : ), intent(in) | FEMT, |
| real, dimension( :, : ), intent(in) | FEMTOLD, | ||
| real, dimension( :, :, :, : ), intent(inout) | DTX_ELE, | ||
| real, dimension( :, :, :, : ), intent(inout) | DTOLDX_ELE, | ||
| integer, intent(in) | NDIM, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(in) | TOTELE, | ||
| integer, dimension( : ), intent(in) | CV_NDGLN, | ||
| integer, dimension( : ), intent(in) | XCV_NDGLN, | ||
| integer, intent(in) | X_NLOC, | ||
| integer, dimension( : ), intent(in) | X_NDGLN, | ||
| integer, intent(in) | CV_NGI, | ||
| integer, intent(in) | CV_NLOC, | ||
| real, dimension( : ), intent(in) | CVWEIGHT, | ||
| real, dimension( :, : ), intent(in) | N, | ||
| real, dimension( :, : ), intent(in) | NLX, | ||
| real, dimension( :, : ), intent(in) | NLY, | ||
| real, dimension( :, : ), intent(in) | NLZ, | ||
| real, dimension( :, : ), intent(in) | X_N, | ||
| real, dimension( :, : ), intent(in) | X_NLX, | ||
| real, dimension( :, : ), intent(in) | X_NLY, | ||
| real, dimension( :, : ), intent(in) | X_NLZ, | ||
| integer, intent(in) | X_NONODS, | ||
| real, dimension( : ), intent(in) | X, | ||
| real, dimension( : ), intent(in) | Y, | ||
| real, dimension( : ), intent(in) | Z, | ||
| integer, intent(in) | NFACE, | ||
| integer, dimension( :, : ), intent(in) | FACE_ELE, | ||
| integer, dimension( :, : ), intent(in) | CV_SLOCLIST, | ||
| integer, dimension( :, : ), intent(in) | X_SLOCLIST, | ||
| integer, intent(in) | CV_SNLOC, | ||
| integer, intent(in) | X_SNLOC, | ||
| integer, dimension( :, :, : ), intent(in) | WIC_T_BC, | ||
| real, dimension( :, :, : ), intent(in) | SUF_T_BC, | ||
| integer, intent(in) | SBCVNGI, | ||
| real, dimension( :, : ), intent(in) | SBCVFEN, | ||
| real, dimension( : ), intent(in) | SBWEIGH, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFEN, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFENSLX, | ||
| real, dimension( :, : ), intent(in) | X_SBCVFENSLY, | ||
| logical, optional | P0Mesh | ||
| ) |
Computes the derivatives of vector fields.
| subroutine cv_advection::dgsimplnorm | ( | integer, intent(in) | ELE, |
| integer, dimension( : ), intent(in) | SILOC2ILOC, | ||
| integer, intent(in) | NLOC, | ||
| integer, intent(in) | SNLOC, | ||
| integer, dimension( : ), intent(in) | XONDGL, | ||
| real, dimension( : ), intent(in) | X, | ||
| real, dimension( : ), intent(in) | Y, | ||
| real, dimension( : ), intent(in) | Z, | ||
| real, intent(inout) | NORMX, | ||
| real, intent(inout) | NORMY, | ||
| real, intent(inout) | NORMZ | ||
| ) |
Form approximate surface normal (NORMX,NORMY,NORMZ)
| subroutine cv_advection::dgsimplnorm_all | ( | integer, intent(in) | NLOC, |
| integer, intent(in) | SNLOC, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( ndim, nloc ), intent(in) | XL_ALL, | ||
| real, dimension( ndim, snloc ), intent(in) | XSL_ALL, | ||
| real, dimension( ndim ), intent(inout) | NORMX_ALL | ||
| ) |
Form approximate surface normal (NORMX_ALL(1),NORMX_ALL(2),NORMX_ALL(3))
| subroutine cv_advection::diffus_cal_coeff | ( | real, dimension( nphase ), intent(inout) | DIFF_COEF_DIVDX, |
| real, dimension( nphase ), intent(inout) | DIFF_COEFOLD_DIVDX, | ||
| integer, intent(in) | CV_NLOC, | ||
| integer, intent(in) | MAT_NLOC, | ||
| integer, intent(in) | NPHASE, | ||
| integer, dimension( : ), intent(in) | MAT_NDGLN, | ||
| real, dimension( :, : ), intent(in) | SMATFEN, | ||
| real, dimension( :, : ), intent(in) | SCVFEN, | ||
| integer, intent(in) | GI, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( :, :, :, : ), intent(in) | TDIFFUSION, | ||
| real, intent(in) | HDC, | ||
| real, dimension( nphase ), intent(in) | T_CV_NODJ, | ||
| real, dimension( nphase ), intent(in) | T_CV_NODI, | ||
| real, dimension( nphase ), intent(in) | TOLD_CV_NODJ, | ||
| real, dimension( nphase ), intent(in) | TOLD_CV_NODI, | ||
| integer, intent(in) | ELE, | ||
| integer, intent(in) | ELE2, | ||
| real, dimension( : ), intent(in) | CVNORMX_ALL, | ||
| real, dimension( ndim, nphase, cv_nloc ), intent(in) | LOC_DTX_ELE_ALL, | ||
| real, dimension( ndim, nphase, cv_nloc ), intent(in) | LOC_DTOLDX_ELE_ALL, | ||
| real, dimension( ndim, nphase, cv_nloc ), intent(in) | LOC2_DTX_ELE_ALL, | ||
| real, dimension( ndim, nphase, cv_nloc ), intent(in) | LOC2_DTOLDX_ELE_ALL, | ||
| integer, dimension( nphase ), intent(in) | LOC_WIC_T_BC, | ||
| integer, dimension( : ), intent(in) | CV_OTHER_LOC, | ||
| integer, dimension( : ), intent(in) | MAT_OTHER_LOC, | ||
| integer, intent(in) | CV_SNLOC, | ||
| integer, dimension( : ), intent(in) | CV_SLOC2LOC, | ||
| logical, intent(in) | on_domain_boundary, | ||
| logical, intent(in) | between_elements, | ||
| logical, intent(in) | has_anisotropic_diffusivity | ||
| ) |
This sub calculates the effective diffusion coefficientd DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX based on a non-linear method and a non-oscillating scheme. It requires the derivatives of the field obtained using DG_DERIVS_ALL DG_DERIVS_ALL.
| subroutine cv_advection::find_other_side | ( | integer, dimension( : ), intent(inout) | CV_OTHER_LOC, |
| integer, intent(in) | CV_NLOC, | ||
| integer, dimension( : ), intent(inout) | U_OTHER_LOC, | ||
| integer, intent(in) | U_NLOC, | ||
| integer, dimension( : ), intent(inout) | MAT_OTHER_LOC, | ||
| logical, intent(inout) | INTEGRAT_AT_GI, | ||
| integer, intent(in) | X_NLOC, | ||
| integer, intent(in) | XU_NLOC, | ||
| integer, dimension( : ), intent(in) | X_NDGLN, | ||
| integer, dimension( : ), intent(in) | XU_NDGLN, | ||
| integer, intent(in) | CV_SNLOC, | ||
| logical, dimension( : ), intent(in) | CVFEM_ON_FACE, | ||
| logical, dimension( : ), intent(inout) | X_SHARE, | ||
| integer, intent(in) | ELE, | ||
| integer, intent(inout) | ELE2, | ||
| integer, dimension( : ), intent(in) | FINELE, | ||
| integer, dimension( : ), intent(in) | COLELE, | ||
| logical, intent(in) | DISTCONTINUOUS_METHOD | ||
| ) |
We are on the boundary or next to another element. Determine CV_OTHER_LOC, U_OTHER_LOC. CVFEM_ON_FACE(CV_KLOC,GI)=.TRUE. if CV_KLOC is on the face that GI is centred on. Look for these nodes on the other elements. ELE2=0 also when we are between elements but are trying to integrate across the middle of a CV.
| subroutine cv_advection::generate_laplacian_system | ( | type(multi_dimensions), intent(in) | Mdims, |
| type( state_type ), intent(inout) | packed_state, | ||
| type(multi_ndgln), intent(in) | ndgln, | ||
| type (multi_matrices), intent(inout) | Mmat, | ||
| type(multi_sparsities), intent(in) | Mspars, | ||
| type(multi_shape_funs), intent(inout) | CV_funs, | ||
| type(multi_gi_dimensions), intent(in) | CV_GIdims, | ||
| real, dimension(:,:), intent(in) | Sigma_field, | ||
| type( scalar_field ), intent(inout) | Solution, | ||
| real, dimension(:,:,:), intent(in) | K_fields, | ||
| real, dimension(:,:,:), intent(in) | F_fields, | ||
| integer, intent(in) | intface_val_type | ||
| ) |
: In this method we assemble and solve the Laplacian system using at least P1 elements The equation solved is the following: Div sigma Grad X = - SUM (Div K Grad F) with Neuman BCs = 0 where K and F are passed down as a vector. Therefore for n entries the SUM will be performed over n fields Example: F = (3, nphase, cv_nonods) would include three terms in the RHS and the same for K If harmonic average then we perform the harmonic average of sigma and K IMPORTANT: This subroutine requires the PHsparsity to be generated Note that this method solves considering FE fields. If using CV you may incur in an small error.
| Mdims | Data type storing all the dimensions describing the mesh, fields, nodes, etc |
| packed_state | Linked list containing all the fields used by IC-FERST, memory partially shared with state |
| ndgln | Global to local variables |
| Mmat | Matrices for ICFERST |
| Mspars | Sparsity of the matrices |
| CV_funs | Shape functions for the CV mesh |
| CV_GIdims | Gauss integration numbers for CV fields |
| Sigma_field | Coefficient multipliying the left-hand side term |
| Solution | Solution field of type scalar_field, required to ensure consistency |
| K_fields | Coefficients multipliying the RHS terms |
| F_fields | RHS fierlds |
| intface_val_type | 0 = no interpolation; 1 Harmonic mean; !20 for SP solver, harmonic mean considering charge; negative normal mean |
| subroutine cv_advection::i_pack_loc | ( | integer, dimension(:), intent(inout) | LOC_F, |
| integer, dimension(nphase), intent(in) | T_ALL, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(inout) | IPT, | ||
| logical, dimension(nphase), intent(in) | IGOT_T_PACK | ||
| ) |
If PACK then pack T_ALL into LOC_F as long at IGOT_T==1 and STORE and not already in storage.
| subroutine cv_advection::is_field_constant | ( | logical | IGOT_T_CONST, |
| real | IGOT_T_CONST_VALUE, | ||
| real, dimension(cv_nonods) | T_ALL, | ||
| integer | CV_NONODS | ||
| ) |
Checks whether a field is constant or not. Although I think this check is terrible, no alternatives have provided the same functionality so far.
| subroutine cv_advection::isotropic_limiter_all | ( | real, dimension( :, : ), intent(in) | T_ALL, |
| real, dimension( :, : ), intent(in) | TOLD_ALL, | ||
| real, dimension( :, : ), intent(in) | T2_ALL, | ||
| real, dimension( :, : ), intent(in) | T2OLD_ALL, | ||
| real, dimension( :, : ), intent(in) | DEN_ALL, | ||
| real, dimension( :, : ), intent(in) | DENOLD_ALL, | ||
| integer, intent(in) | IGOT_T2, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(in) | CV_NONODS, | ||
| integer, intent(in) | nsmall_colm, | ||
| integer, dimension( : ), intent(in) | SMALL_CENTRM, | ||
| integer, dimension( : ), intent(in) | SMALL_FINDRM, | ||
| integer, dimension( : ), intent(in) | SMALL_COLM, | ||
| integer, intent(in) | STOTEL, | ||
| integer, intent(in) | CV_SNLOC, | ||
| integer, dimension( : ), intent(in) | CV_SNDGLN, | ||
| real, dimension( :, :, : ), intent(in), pointer | SUF_T_BC_ALL, | ||
| real, dimension( :, :, : ), intent(in), pointer | SUF_T2_BC_ALL, | ||
| real, dimension( :, :, : ), intent(in), pointer | SUF_D_BC_ALL, | ||
| integer, dimension( :,:, : ), intent(in) | WIC_T_BC_ALL, | ||
| integer, dimension( :,:, : ), intent(in) | WIC_T2_BC_ALL, | ||
| integer, dimension( :,:, : ), intent(in) | WIC_D_BC_ALL, | ||
| real, dimension( : ), intent(in) | MASS_CV, | ||
| real, dimension( :, : ), intent(inout) | TOLDUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | DENOLDUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | T2OLDUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | TUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | DENUPWIND_MAT_ALL, | ||
| real, dimension( :, : ), intent(inout) | T2UPWIND_MAT_ALL | ||
| ) |
Computes the limited values at the interface, not as generic as the anisotropic one and never used actually...
| subroutine cv_advection::linear_high_diffus_cal_coeff_stress_or_tensor | ( | real, dimension( ndim, ndim, nphase, u_snloc, 2*u_nloc ), intent(inout) | STRESS_IJ_ELE_EXT, |
| real, dimension( ndim, u_snloc, 2*u_nloc ), intent(inout) | S_INV_NNX_MAT12, | ||
| logical, intent(in) | STRESS_FORM, | ||
| logical, intent(in) | STRESS_FORM_STAB, | ||
| real, intent(in) | ZERO_OR_TWO_THIRDS, | ||
| integer, intent(in) | U_SNLOC, | ||
| integer, intent(in) | U_NLOC, | ||
| integer, intent(in) | CV_SNLOC, | ||
| integer, intent(in) | NPHASE, | ||
| real, dimension( sbcvngi, u_snloc ), intent(in) | SBUFEN_REVERSED, | ||
| real, dimension( sbcvngi, cv_snloc ), intent(in) | SBCVFEN_REVERSED, | ||
| real, dimension( sbcvngi ), intent(in) | SDETWEI, | ||
| integer, intent(in) | SBCVNGI, | ||
| integer, intent(in) | NDIM, | ||
| real, dimension( ndim,ndim,nphase,cv_snloc ), intent(in) | SLOC_UDIFFUSION, | ||
| real, dimension( nphase,cv_snloc ), intent(in) | SLOC_UDIFFUSION_VOL, | ||
| real, dimension( ndim,ndim,nphase,cv_snloc ), intent(in) | SLOC2_UDIFFUSION, | ||
| real, dimension( nphase,cv_snloc ), intent(in) | SLOC2_UDIFFUSION_VOL, | ||
| real, dimension( ndim, ndim,ndim, nphase, sbcvngi), intent(in) | DIFF_GI_ADDED, | ||
| logical, intent(in) | ON_BOUNDARY, | ||
| real, dimension( ndim, sbcvngi ), intent(in) | SNORMXN_ALL | ||
| ) |
This sub calculates the effective diffusion coefficientd STRESS_IJ_ELE_EXT it only works for between element contributions. based on a high order scheme. The matrix S_INV_NNX_MAT12 is used to calculate the rows of the matrix with STRESS_IJ_ELE_EXT. This implements the stress and tensor form of diffusion and calculates a jump conidition. which is in DIFF_COEF_DIVDX, DIFF_COEFOLD_DIVDX The coefficient are in N_DOT_DKDU, N_DOT_DKDUOLD. look at the manual DG treatment of viscocity.
| pure subroutine cv_advection::onvdlim_ano_many | ( | integer, intent(in) | NFIELD, |
| real, dimension( nfield ), intent(inout) | TDLIM, | ||
| real, dimension( nfield ), intent(in) | TDCEN, | ||
| real, dimension( nfield ), intent(in) | INCOME, | ||
| real, dimension( nfield ), intent(in) | ETDNEW_PELE, | ||
| real, dimension( nfield ), intent(in) | ETDNEW_PELEOT, | ||
| real, dimension( nfield ), intent(in) | XI_LIMIT, | ||
| real, dimension( nfield ), intent(in) | TUPWIN, | ||
| real, dimension( nfield ), intent(in) | TUPWI2, | ||
| real, dimension( nfield ), intent(inout) | DENOIN, | ||
| real, dimension( nfield ), intent(inout) | CTILIN, | ||
| real, dimension( nfield ), intent(inout) | DENOOU, | ||
| real, dimension( nfield ), intent(inout) | CTILOU, | ||
| real, dimension( nfield ), intent(inout) | FTILIN, | ||
| real, dimension( nfield ), intent(inout) | FTILOU | ||
| ) |
This sub calculates the limited face values TDADJ(1...SNGI) from the central difference face values TDCEN(1...SNGI) using a NVD shceme. INCOME(1...SNGI)=1 for incomming to element ELE else =0. LIBETA is the flux limiting parameter. TDMAX(PELE)=maximum of the surrounding 6 element values of element PELE. TDMIN(PELE)=minimum of the surrounding 6 element values of element PELE. PELEOT=element at other side of current face. ELEOT2=element at other side of the element ELEOTH. ELESID=element next to oposing current face. DENOIN, CTILIN, DENOOU, CTILOU, FTILIN, FTILOU => memory The elements are arranged in this order: ELEOT2,ELE, PELEOT, ELESID.
TEXTIN TEXOUT
| subroutine cv_advection::pack_loc | ( | real, dimension(:), intent(inout) | LOC_F, |
| real, dimension(:), intent(in) | T_ALL, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(inout) | IPT, | ||
| logical, dimension(:), intent(in) | IGOT_T_PACK | ||
| ) |
Copies memory into the same large array to then perform a projection from CV to FE.
| subroutine cv_advection::pack_loc_all1 | ( | real, dimension(:), intent(inout) | LOC_F, |
| real, dimension(:), intent(in) | field1, | ||
| real, dimension(:), intent(in) | oldfield1, | ||
| real, dimension(:), intent(in) | field2, | ||
| real, dimension(:), intent(in) | oldfield2, | ||
| real, dimension(:), intent(in) | field3, | ||
| real, dimension(:), intent(in) | oldfield3, | ||
| logical, dimension(:,:), intent(in) | IGOT_T_PACK, | ||
| logical, intent(in) | use_volume_frac_T2, | ||
| integer, intent(in) | nfield | ||
| ) |
This subroutine is for fields that have already size final_phase - 1 Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once.
| subroutine cv_advection::pack_loc_all2 | ( | real, dimension(:), intent(inout) | LOC_F, |
| real, dimension(:,:), intent(in) | field1, | ||
| real, dimension(:,:), intent(in) | oldfield1, | ||
| real, dimension(:,:), intent(in) | field2, | ||
| real, dimension(:,:), intent(in) | oldfield2, | ||
| real, dimension(:,:), intent(in) | field3, | ||
| real, dimension(:,:), intent(in) | oldfield3, | ||
| logical, dimension(:,:), intent(in) | IGOT_T_PACK, | ||
| logical, intent(in) | use_volume_frac_T2, | ||
| integer, intent(in) | start_phase, | ||
| integer, intent(in) | final_phase, | ||
| integer, intent(in) | nodi | ||
| ) |
This subrotuine is for fields that are bigger than final_phase - start_phase Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once.
| subroutine cv_advection::pack_loc_all3 | ( | integer, dimension(:), intent(inout) | LOC_F, |
| integer, dimension(:,:), intent(in) | field1, | ||
| integer, dimension(:,:), intent(in) | oldfield1, | ||
| integer, dimension(:,:), intent(in) | field2, | ||
| integer, dimension(:,:), intent(in) | oldfield2, | ||
| integer, dimension(:,:), intent(in) | field3, | ||
| integer, dimension(:,:), intent(in) | oldfield3, | ||
| logical, dimension(:,:), intent(in) | IGOT_T_PACK, | ||
| logical, intent(in) | use_volume_frac_T2, | ||
| integer, intent(in) | start_phase, | ||
| integer, intent(in) | final_phase, | ||
| integer, intent(in) | nodi | ||
| ) |
This subrotuine is for fields that are bigger than final_phase - start_phase Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the field into LOC_F to later on apply the limiters on all the fields at once. This one is for integer fields.
| subroutine cv_advection::pack_or_unpack_loc | ( | real, dimension(nfield), intent(inout) | LOC_F, |
| real, dimension(nphase), intent(inout) | T_ALL, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(in) | NFIELD, | ||
| integer, intent(inout) | IPT, | ||
| logical, intent(in) | PACK, | ||
| logical, intent(in) | STORE, | ||
| integer, intent(in) | IGOT_T | ||
| ) |
If PACK then pack T_ALL into LOC_F as long at IGOT_T==1 and STORE and not already in storage.
| subroutine cv_advection::proj_cv_to_fem | ( | type(state_type) | packed_state, |
| type(tensor_field_pointer), dimension(:), intent(inout) | fempsi, | ||
| type(tensor_field_pointer), dimension(:), intent(inout) | psi, | ||
| type(multi_dimensions), intent(in) | Mdims, | ||
| type(multi_gi_dimensions), intent(in) | CV_GIdims, | ||
| type(multi_shape_funs), intent(inout) | CV_funs, | ||
| type(multi_sparsities), intent(in) | Mspars, | ||
| type(multi_ndgln), intent(in) | ndgln, | ||
| integer, intent(in) | igetct, | ||
| real, dimension(:,:), intent(in) | X, | ||
| real, dimension(:), intent(inout) | mass_ele, | ||
| real, dimension(:), intent(inout) | mass_mn_pres, | ||
| type(tensor_field), intent(in) | tracer, | ||
| type(vector_field_pointer), dimension(:), intent(inout) | psi_ave, | ||
| type(vector_field_pointer), dimension(:), intent(inout) | psi_int, | ||
| logical, intent(in), optional | activate_limiters | ||
| ) |

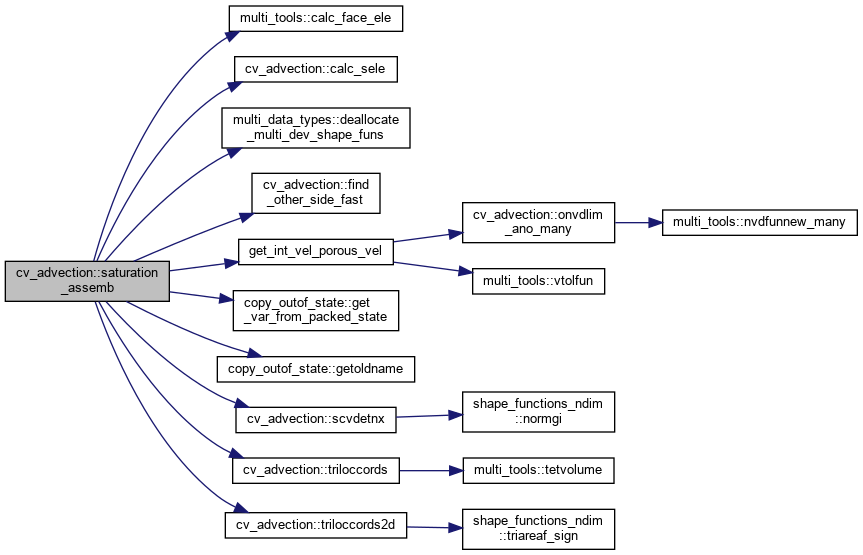

Calls to generate the transport equation for the saturation. Embeded an FPI with backtracking method is uncluded Subroutine description: (1) determine FEMT (finite element wise) etc from T (control volume wise) (2) (optional) calculate psi_int (area) and psi_ave (barycentre) over each CV.
| packed_state | ! local state data |
| fempsi | ! finite element field data |
| psi | ! finite volume field data |
| Mdims | ! dimension data |
| CV_GIdims | ! gauss integer dimension data |
| CV_funs | ! control volume shape function data |
| Mspars | ! sparsity data |
| ndgln | ! global numbering data |
| igetct | ! whether to get CT matrix |
| X | ! coordinates of the elements |
| mass_ele | ! finite element mass |
| mass_mn_pres | ! ?? |
| tracer | field to be projected |
| activate_limiters | are the limiters on? |
| psi_int | ! control volume area |
| psi_ave | ! control volume barycentre |
| subroutine cv_advection::put_in_ct_rhs | ( | logical, intent(in) | GET_C_IN_CV_ADVDIF_AND_CALC_C_CV, |
| real, dimension( : ), intent(inout) | ct_rhs_phase_cv_nodi, | ||
| real, dimension( : ), intent(inout) | ct_rhs_phase_cv_nodj, | ||
| integer, intent(in) | final_phase, | ||
| type(multi_dimensions), intent(in) | Mdims, | ||
| type(multi_shape_funs), intent(in) | CV_funs, | ||
| type(multi_ndgln), intent(in) | ndgln, | ||
| type (multi_matrices), intent(inout) | Mmat, | ||
| integer, intent(in) | GI, | ||
| logical, intent(in) | between_elements, | ||
| logical, intent(in) | on_domain_boundary, | ||
| integer, intent(in) | ELE, | ||
| integer, intent(in) | ELE2, | ||
| integer, intent(in) | SELE, | ||
| real, intent(in) | HDC, | ||
| real, dimension( : ), intent(in) | MASS_ELE, | ||
| integer, dimension( : ), intent(in) | JCOUNT_KLOC, | ||
| integer, dimension( : ), intent(in) | JCOUNT_KLOC2, | ||
| integer, dimension( : ), intent(in) | ICOUNT_KLOC, | ||
| integer, dimension( : ), intent(in) | ICOUNT_KLOC2, | ||
| integer, dimension( : ), intent(in) | C_JCOUNT_KLOC, | ||
| integer, dimension( : ), intent(in) | C_JCOUNT_KLOC2, | ||
| integer, dimension( : ), intent(in) | C_ICOUNT_KLOC, | ||
| integer, dimension( : ), intent(in) | C_ICOUNT_KLOC2, | ||
| integer, dimension( : ), intent(in) | U_OTHER_LOC, | ||
| integer, dimension( : ), intent(in) | U_SLOC2LOC, | ||
| integer, dimension( : ), intent(in) | CV_SLOC2LOC, | ||
| real, dimension( : ), intent(in) | SCVDETWEI, | ||
| real, dimension( :, : ), intent(in) | CVNORMX_ALL, | ||
| real, dimension( :, : ), intent(in) | DEN_ALL, | ||
| integer, intent(in) | CV_NODI, | ||
| integer, intent(in) | CV_NODJ, | ||
| integer, dimension(:,:,:) | WIC_U_BC_ALL, | ||
| integer, dimension(:,:,:) | WIC_P_BC_ALL, | ||
| real, dimension( :, :, : ), intent(inout) | SUF_P_BC_ALL, | ||
| real, dimension( :, :, : ), intent(in) | UGI_COEF_ELE_ALL, | ||
| real, dimension( :, :, : ), intent(in) | UGI_COEF_ELE2_ALL, | ||
| real, dimension( : ), intent(in) | NDOTQ, | ||
| real, dimension( : ), intent(in) | NDOTQOLD, | ||
| real, dimension( : ), intent(in) | LIMT, | ||
| real, dimension( : ), intent(in) | LIMDT, | ||
| real, dimension( : ), intent(in) | LIMDTOLD, | ||
| real, dimension( : ), intent(in) | LIMT_HAT, | ||
| real, intent(in) | NDOTQ_HAT, | ||
| real, dimension( : ), intent(in) | FTHETA_T2, | ||
| real, dimension( : ), intent(in) | ONE_M_FTHETA_T2OLD, | ||
| real, dimension( : ), intent(in) | FTHETA_T2_J, | ||
| real, dimension( : ), intent(in) | ONE_M_FTHETA_T2OLD_J, | ||
| logical, intent(in) | integrate_other_side_and_not_boundary, | ||
| real, dimension( :, :, : ), intent(in) | loc_u, | ||
| real, dimension( : ), intent(in) | THETA_VEL, | ||
| real, dimension( mdims%ndim, final_phase ), intent(inout) | UDGI_IMP_ALL, | ||
| real, dimension( final_phase ), intent(inout) | RCON, | ||
| real, dimension( final_phase ), intent(inout) | RCON_J, | ||
| real, dimension( final_phase ), intent(inout) | NDOTQ_IMP, | ||
| real, dimension(:,:), pointer | X_ALL, | ||
| real, dimension(:,:,: ), pointer | SUF_D_BC_ALL, | ||
| real | gravty | ||
| ) |
This subroutine caculates the discretised cty eqn acting on the velocities i.e. MmatCT, MmatCT_RHS It also computes the gradient matrix using the DCVFE method.
| subroutine cv_advection::scvdetnx | ( | type(multi_dimensions), intent(in) | Mdims, |
| type(multi_ndgln), intent(in) | ndgln, | ||
| real, dimension(:,:) | X_ALL, | ||
| type(multi_shape_funs), intent(in) | CV_funs, | ||
| type(multi_gi_dimensions), intent(in) | CV_GIdims, | ||
| logical, intent(in) | on_domain_boundary, | ||
| logical, intent(in) | between_elements, | ||
| integer, intent(in) | ELE, | ||
| integer, intent(in) | GI, | ||
| real, dimension( : ), intent(inout) | SCVDETWEI, | ||
| real, dimension( mdims%ndim, cv_gidims%scvngi ), intent(inout) | CVNORMX_ALL, | ||
| real, dimension( mdims%ndim ), intent(in) | XC_ALL, | ||
| integer, intent(in) | X_NOD, | ||
| integer, intent(in) | X_NODJ | ||
| ) |
| logical function cv_advection::shock_front_in_ele | ( | integer | ele, |
| type(multi_dimensions), intent(in) | Mdims, | ||
| real, dimension(:,:), intent(in) | sat, | ||
| type(multi_ndgln), intent(in) | ndgln, | ||
| real, dimension(:), intent(in) | Imble_frac | ||
| ) |
Detects whether the element has a shockfront or not.
| subroutine cv_advection::triloccords | ( | real | Xp, |
| real | Yp, | ||
| real | Zp, | ||
| real | N1, | ||
| real | N2, | ||
| real | N3, | ||
| real | N4, | ||
| real | X1, | ||
| real | Y1, | ||
| real | Z1, | ||
| real | X2, | ||
| real | Y2, | ||
| real | Z2, | ||
| real | X3, | ||
| real | Y3, | ||
| real | Z3, | ||
| real | X4, | ||
| real | Y4, | ||
| real | Z4 | ||
| ) |
| subroutine cv_advection::triloccords2d | ( | real | Xp, |
| real | Yp, | ||
| real | N1, | ||
| real | N2, | ||
| real | N3, | ||
| real | X1, | ||
| real | Y1, | ||
| real | X2, | ||
| real | Y2, | ||
| real | X3, | ||
| real | Y3 | ||
| ) |
| subroutine cv_advection::unpack_loc | ( | real, dimension(:), intent(in) | LOC_F, |
| real, dimension(nphase), intent(inout) | T_ALL, | ||
| integer, intent(in) | NPHASE, | ||
| integer, intent(inout) | IPT, | ||
| logical, dimension(nphase), intent(in) | IGOT_T_PACK, | ||
| logical, dimension(nphase), intent(in) | IGOT_T_CONST, | ||
| real, dimension(nphase), intent(in) | IGOT_T_CONST_VALUE | ||
| ) |
If PACK then UNpack loc_f into T_ALL as long at IGOT_T==1 and STORE and not already in storage.
| subroutine cv_advection::unpack_loc_all | ( | real, dimension(:), intent(in) | LOC_F, |
| real, dimension(:), intent(inout) | field1, | ||
| real, dimension(:), intent(inout) | oldfield1, | ||
| real, dimension(:), intent(inout) | field2, | ||
| real, dimension(:), intent(inout) | oldfield2, | ||
| real, dimension(:), intent(inout) | field3, | ||
| real, dimension(:), intent(inout) | oldfield3, | ||
| logical, dimension(:,:), intent(in) | IGOT_T_PACK, | ||
| logical, dimension(:,:), intent(in) | IGOT_T_CONST, | ||
| real, dimension(:,:), intent(in) | IGOT_T_CONST_VALUE, | ||
| logical, intent(in) | use_volume_frac_T2, | ||
| integer, intent(in) | nfield | ||
| ) |
If PACK then UNpack loc_f into T_ALL as long at IGOT_T==1 and STORE and not already in storage. Checks if the fields are constant or not, stored in IGOT_T_PACK, based on that introduces the LOC_F into the field or use a constant value. This is after the limiters have been applied.
| integer, parameter cv_advection::wic_d_bc_dirichlet = 1 |
| integer, parameter cv_advection::wic_p_bc_dirichlet = 1 |
| integer, parameter cv_advection::wic_p_bc_free = 2 |
| integer, parameter cv_advection::wic_t_bc_diri_adv_and_robin = 3 |
| integer, parameter cv_advection::wic_t_bc_dirichlet = 1 |
| integer, parameter cv_advection::wic_t_bc_robin = 2 |
| integer, parameter cv_advection::wic_u_bc_diri_adv_and_robin = 3 |
| integer, parameter cv_advection::wic_u_bc_dirichlet = 1 |
| integer, parameter cv_advection::wic_u_bc_dirichlet_inout = 2 |
| integer, parameter cv_advection::wic_u_bc_robin = 2 |
1.8.17
