This module enables the multiphase prototype code to interact with state by copying everything required from state to ICFERST, adaptive time-stepping, outfluxes computation, tunneled BCs and Darcy velocity. More...

Functions/Subroutines
subroutine, public	get_primary_scalars_new (state, Mdims)
	This subroutine extracts all primary variables associated with the mesh from state, and associated them with the variables used in the MultiFluids model. More...

subroutine, public	compute_node_global_numbers (state, ndgln)
	This subroutine calculates the global node numbers requested to operates in ICFERST. More...

subroutine, public	get_ele_type (x_nloc, cv_ele_type, p_ele_type, u_ele_type, mat_ele_type, u_sele_type, cv_sele_type)
	: Obtain the type of element u_ele_type = cv_ele_type = p_ele_type will flag the dimension and type of element: = 1 or 2: 1D (linear and quadratic, respectively) -NOT SUPPORTED- = 3 or 4: triangle (linear or quadratic, respectively) = 5 or 6: quadrilateral (bi-linear or tri-linear, respectively)-NOT SUPPORTED- = 7 or 8: tetrahedron (linear or quadratic, respectively) = 9 or 10: hexahedron (bi-linear or tri-linear, respectively) -NOT SUPPORTED- More...

subroutine, public	get_ele_type_new (Mdims, Mdisopt)
	: Obtains the element type Mdisoptu_ele_type = Mdisoptcv_ele_type = Mdisoptp_ele_type will flag the dimension and type of element: = 1 or 2: 1D (linear and quadratic, respectively) -NOT SUPPORTED- = 3 or 4: triangle (linear or quadratic, respectively) = 5 or 6: quadrilateral (bi-linear or tri-linear, respectively) -NOT SUPPORTED- = 7 or 8: tetrahedron (linear or quadratic, respectively) = 9 or 10: hexahedron (bi-linear or tri-linear, respectively) -NOT SUPPORTED- More...

subroutine, public	get_discretisation_options (state, Mdims, Mdisopt)
	: This subroutine extract all discretisation options from the schema DISOPT Options: =0 1st order in space Theta=specified UNIVERSAL =1 1st order in space Theta=non-linear UNIVERSAL =2 Trapezoidal rule in space Theta=specified UNIVERSAL =2 if isotropic limiter then FEM-quadratic & stratification adjust. Theta=non-linear =3 Trapezoidal rule in space Theta=non-linear UNIVERSAL =4 Finite elements in space Theta=specified UNIVERSAL =5 Finite elements in space Theta=non-linear UNIVERSAL =6 Finite elements in space Theta=specified NONE =7 Finite elements in space Theta=non-linear NONE =8 Finite elements in space Theta=specified DOWNWIND+INTERFACE TRACKING =9 Finite elements in space Theta=non-linear DOWNWIND+INTERFACE TRACKING More...

subroutine, public	pack_multistate (npres, state, packed_state, multiphase_state, multicomponent_state, pmulti_state)
	: This subroutine creates packed_state from state(:) and links the appropiate memory so it is acessible from both states. This subroutine also introduces fields not used by fludity but required by IC-FERST More...

subroutine, public	prepare_absorptions (state, Mdims, multi_absorp)
	: Prepares the memory to compute absorption fields More...

type(vector_field) function, public	as_vector (tfield, dim, slice)
	: This function points a tensor field as a vector field type This is necessary when solving for tensor fields that are actually multiphase vector fields. More...

type(vector_field) function, public	as_packed_vector (tfield)
	: This function points a tensor field as a vector field type This is necessary when solving for tensor fields that are actually multiphase vector fields. More...

subroutine, public	finalise_multistate (packed_state, multiphase_state, multicomponent_state)
	: Destrys packed_state and the passed down states More...

subroutine, public	adaptive_nonlinear (Mdims, packed_state, reference_field, its, Repeat_time_step, ExitNonLinearLoop, nonLinearAdaptTs, old_acctim, order, calculate_mass_delta, adapt_mesh_in_FPI, Accum_Courant, Courant_tol, Current_Courant, first_time_step)
	: This subroutine either store variables before the nonlinear timeloop starts, or checks how the nonlinear iterations are going and depending on that increase the timestep or decreases the timestep and repeats that timestep More...

real function, public	inf_norm_scalar_normalised (tracer, reference_tracer, dumping, totally_min_max)
	Calculate the inf norm of the normalised field, so the field goes from 0 to 1 It requires as inputs the tracer to be used and the reference tracer to normallise, the dumping to be set to 1.0 and totally_min_max which includes the min max values of the field across all processors also for normalisation. More...

real function, public	get_convergence_functional (phasevolumefraction, reference_sat, dumping, its)
	: We create a potential to optimize F = sum (f**2), so the solution is when this potential reaches a minimum. Typically the value to consider convergence is the sqrt(epsilon of the machine), i.e. 10^-8 f = (NewSat-OldSat)/Number of nodes; this is the typical approach for algebraic non linear systems More...

subroutine, public	get_var_from_packed_state (packed_state, FEDensity, OldFEDensity, IteratedFEDensity, Density, OldDensity, IteratedDensity, PhaseVolumeFraction, OldPhaseVolumeFraction, IteratedPhaseVolumeFraction, Velocity, OldVelocity, IteratedVelocity, FEPhaseVolumeFraction, OldFEPhaseVolumeFraction, IteratedFEPhaseVolumeFraction, NonlinearVelocity, OldNonlinearVelocity, IteratedNonlinearVelocity, ComponentDensity, OldComponentDensity, IteratedComponentDensity, ComponentMassFraction, OldComponentMassFraction, Temperature, OldTemperature, IteratedTemperature, FETemperature, OldFETemperature, IteratedFETemperature, IteratedComponentMassFraction, FEComponentDensity, OldFEComponentDensity, IteratedFEComponentDensity, FEComponentMassFraction, OldFEComponentMassFraction, IteratedFEComponentMassFraction, Pressure, FEPressure, OldFEPressure, CVPressure, OldCVPressure, CV_Immobile_Fraction, Coordinate, VelocityCoordinate, PressureCoordinate, MaterialCoordinate, CapPressure, Immobile_fraction, EndPointRelperm, RelpermExponent, Cap_entry_pressure, Cap_exponent, Imbibition_term, Concentration, OldConcentration, IteratedConcentration, FEConcentration, OldFEConcentration, IteratedFEConcentration, Enthalpy, OldEnthalpy, IteratedEnthalpy, FEEnthalpy, OldFEEnthalpy, IteratedFEEnthalpy)
	@DEPRECATED: Gets memory from packed state This subroutine returns a pointer to the desired values of a variable stored in packed state All the input variables (but packed_stated) are pointers following the structure of the *_ALL variables and also all of them are optional, hence you can obtaine whichever you want More...

subroutine, public	printcsrmatrix (Matrix, find, col, dim_same_row)
	: Subroutine to print CSR matrix by (row, column) Dimensions and phases are printed in different rows So for example Matrix(2,2,10) with two rows would be presented as a matrix ( 8 x 10) More...

logical function, public	is_constant (tfield)
	: Checks whether a field is constant or not More...

character(len=field_name_len) function, public	getoldname (tfield)
	: For a given field, retrieve the associated old field name More...

character(len=field_name_len) function, public	getfemname (tfield)
	: For a given field, retrieve the associated finite element field name More...

subroutine, public	calculate_internal_volume (packed_state, Mdims, mass_ele, calculate_mass, cv_ndgln, DEN_ALL, eles_with_pipe)
	: Subroutine to calculate the integrated mass inside the domain More...

logical function, public	have_option_for_any_phase (path, nphase)
	: Subroutine to check whether an option is true for any phase in diamond, if any is true it returns true. The path must be the part of the path inside the phase, i.e. /multiphase_properties/capillary_pressure More...

subroutine, public	get_darcyvelocity (Mdims, ndgln, state, packed_state, upwnd)
	: This subroutine calculates the actual Darcy velocity, but with P0DG precision only! More...

subroutine, public	dump_outflux (current_time, itime, outfluxes)
	: Subroutine that dumps the total flux at a given timestep across all specified boundaries to a file called 'simulation_name_outfluxes.csv'. In addition, the time integrated flux up to the current timestep is also outputted to this file. Integration boundaries are specified in diamond via surface_ids. (In diamond this option can be found under "/io/dump_boundaryflux/surface_ids" and the user should specify an integer array containing the IDs of every boundary they wish to integrate over). More...

subroutine, public	update_outfluxes (bcs_outfluxes, outfluxes, sele, cv_nodi, suf_area, Vol_flux, Mass_flux, tracer, outfluxes_fields, start_phase, end_phase)
	: Updates the outfluxes information based on NDOTQNEW, shape functions and transported fields for a given GI point in a certain element This subroutine should only be called if SELE is on the BOUNDARY Example of Mass_flux: ndotq(iphase) * SdevFunsDETWEI(gi) * LIMT(iphase) Example of Vol_flux: ndotq(iphase) * SdevFunsDETWEI(gi) * LIMDT(iphase) More...

subroutine, public	enterforcebalanceequation (EnterSolve, its, itime, acctim, t_adapt_threshold, after_adapt, after_adapt_itime, PVF_cfl)
	:–A Subroutine that returns a Logical, either to Enter the Force Balance Eqs or Not = given a requested_cfl_pressure it will skip the ForceBalanceEquation that many times = while if I have adaptive mesh it will solve the ForceBalanceEquation after each adapt_time_steps = The Subroutive also account for delaying adaptivity and swich between cfl_pressure and after_adapt= More...

subroutine, public	impose_connected_bcs (outfluxes, packed_state, Mdims, acctime)
	: Using the outfluxes values, it imposes as BC the averaged value of another BC(from within the domain) It is a basic method to get this functionality but it will work in parallel. However, it does not guarantee mass conservation as it uses the value from the previous time-step although it can still be used for many cases such as ATES, or ventilation. Overwrites the dirichlet BC values. Currently it uses the information from outfluxes so it is MANDATORY to use and request outfluxes for those BCs More...

Detailed Description

This module enables the multiphase prototype code to interact with state by copying everything required from state to ICFERST, adaptive time-stepping, outfluxes computation, tunneled BCs and Darcy velocity.

Function/Subroutine Documentation

◆ adaptive_nonlinear()

subroutine, public copy_outof_state::adaptive_nonlinear	(	type(multi_dimensions), intent(in)	Mdims,
		type(state_type), intent(inout)	packed_state,
		real, dimension(:,:,:), intent(inout), allocatable	reference_field,
		integer, intent(inout)	its,
		logical, intent(inout)	Repeat_time_step,
		logical, intent(inout)	ExitNonLinearLoop,
		logical, intent(in)	nonLinearAdaptTs,
		real, intent(in)	old_acctim,
		integer, intent(in)	order,
		real, dimension(:,:), optional	calculate_mass_delta,
		logical, intent(in), optional	adapt_mesh_in_FPI,
		real, intent(in), optional	Accum_Courant,
		real, intent(in), optional	Courant_tol,
		real, intent(in), optional	Current_Courant,
		logical, intent(in), optional	first_time_step
	)

: This subroutine either store variables before the nonlinear timeloop starts, or checks how the nonlinear iterations are going and depending on that increase the timestep or decreases the timestep and repeats that timestep

Author: : Pablo Salinas

Parameters

Mdims	Data type storing all the dimensions describing the mesh, fields, nodes, etc
packed_state	Linked list with the fields for ICFERST
reference_field	Field stored at the beginning of the non-linear loop to check convergence
old_acctim	Previous actual time
Repeat_time_step,ExitNonLinearLoop
its	Non-linear time iteration WARNING: not to be modified unless VERY sure
nonLinearAdaptTs	Flag controlling if we have adaptive time-step or not
order	Flag controlling what are we doing. 1)Store or get from backup; 2)Calculate and store reference_field;
adapt_mesh_in_FPI,first_time_step
Accum_Courant,Courant_tol,Current_Courant
calculate_mass_delta	1st item holds the mass at previous Linear time step, 2nd item is the delta between mass at the current FPI and 1st item

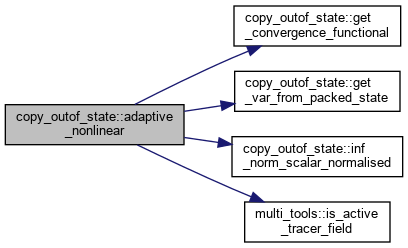

Here is the call graph for this function:

Here is the caller graph for this function:

◆ as_packed_vector()

type(vector_field) function, public copy_outof_state::as_packed_vector ( type(tensor_field), intent(inout) tfield )

: This function points a tensor field as a vector field type This is necessary when solving for tensor fields that are actually multiphase vector fields.

◆ as_vector()

type(vector_field) function, public copy_outof_state::as_vector	(	type(tensor_field), intent(inout)	tfield,
		integer, intent(in)	dim,
		integer, intent(in), optional	slice
	)

: This function points a tensor field as a vector field type This is necessary when solving for tensor fields that are actually multiphase vector fields.

◆ calculate_internal_volume()

subroutine, public copy_outof_state::calculate_internal_volume	(	type(state_type), intent(inout)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		real, dimension( : ), intent(in)	mass_ele,
		real, dimension(:), intent(inout)	calculate_mass,
		integer, dimension(:), intent(in)	cv_ndgln,
		real, dimension( :, : ), intent(in)	DEN_ALL,
		type(pipe_coords), dimension(:), intent(in), optional	eles_with_pipe
	)

: Subroutine to calculate the integrated mass inside the domain

Parameters

packed_state
Mdims
mass_ele	volume of the element, split into cv_nloc equally sized pieces (barycenter)
cv_ndgln	local to global of the CV mesh only
DEN_ALL	density of the field
eles_with_pipe	list of element that contain a well/pipe

Return values

calculate_mass Output field containing all the mass within the domain

Here is the caller graph for this function:

◆ compute_node_global_numbers()

subroutine, public copy_outof_state::compute_node_global_numbers	(	type( state_type ), dimension( : ), intent(in)	state,
		type(multi_ndgln), intent(inout)	ndgln
	)

This subroutine calculates the global node numbers requested to operates in ICFERST.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dump_outflux()

subroutine, public copy_outof_state::dump_outflux	(	real, intent(in)	current_time,
		integer, intent(in)	itime,
		type (multi_outfluxes), intent(inout)	outfluxes
	)

: Subroutine that dumps the total flux at a given timestep across all specified boundaries to a file called 'simulation_name_outfluxes.csv'. In addition, the time integrated flux up to the current timestep is also outputted to this file. Integration boundaries are specified in diamond via surface_ids. (In diamond this option can be found under "/io/dump_boundaryflux/surface_ids" and the user should specify an integer array containing the IDs of every boundary they wish to integrate over).

Parameters

current_time	actual time
itime	time-level in integer format
outfluxes	multi_outfluxes field containing the data required to create the output csv file

Here is the caller graph for this function:

◆ enterforcebalanceequation()

subroutine, public copy_outof_state::enterforcebalanceequation	(	logical, intent(inout)	EnterSolve,
		integer, intent(in)	its,
		integer, intent(in)	itime,
		real, intent(in)	acctim,
		real, intent(in)	t_adapt_threshold,
		logical, intent(in)	after_adapt,
		logical, intent(inout)	after_adapt_itime,
		real, intent(in)	PVF_cfl
	)

:–A Subroutine that returns a Logical, either to Enter the Force Balance Eqs or Not = given a requested_cfl_pressure it will skip the ForceBalanceEquation that many times = while if I have adaptive mesh it will solve the ForceBalanceEquation after each adapt_time_steps = The Subroutive also account for delaying adaptivity and swich between cfl_pressure and after_adapt=

Here is the caller graph for this function:

◆ finalise_multistate()

subroutine, public copy_outof_state::finalise_multistate	(	type(state_type)	packed_state,
		type(state_type), dimension(:), pointer	multiphase_state,
		type(state_type), dimension(:), pointer	multicomponent_state
	)

: Destrys packed_state and the passed down states

◆ get_convergence_functional()

real function, public copy_outof_state::get_convergence_functional	(	real, dimension(:,:), intent(in)	phasevolumefraction,
		real, dimension(:,:), intent(in)	reference_sat,
		real, intent(in)	dumping,
		integer, intent(in), optional	its
	)

: We create a potential to optimize F = sum (f**2), so the solution is when this potential reaches a minimum. Typically the value to consider convergence is the sqrt(epsilon of the machine), i.e. 10^-8 f = (NewSat-OldSat)/Number of nodes; this is the typical approach for algebraic non linear systems

The convergence is independent of the dumping parameter and measures how the previous iteration (i.e. using the previous dumping parameter) performed

Here is the caller graph for this function:

◆ get_darcyvelocity()

subroutine, public copy_outof_state::get_darcyvelocity	(	type(multi_dimensions), intent(in)	Mdims,
		type(multi_ndgln), intent(in)	ndgln,
		type( state_type ), dimension( : ), intent(inout)	state,
		type(state_type), intent(in)	packed_state,
		type (porous_adv_coefs), intent(inout)	upwnd
	)

: This subroutine calculates the actual Darcy velocity, but with P0DG precision only!

Here is the caller graph for this function:

◆ get_discretisation_options()

subroutine, public copy_outof_state::get_discretisation_options	(	type( state_type ), dimension( : ), intent(in)	state,
		type(multi_dimensions), intent(in)	Mdims,
		type (multi_discretization_opts)	Mdisopt
	)

: This subroutine extract all discretisation options from the schema DISOPT Options: =0 1st order in space Theta=specified UNIVERSAL =1 1st order in space Theta=non-linear UNIVERSAL =2 Trapezoidal rule in space Theta=specified UNIVERSAL =2 if isotropic limiter then FEM-quadratic & stratification adjust. Theta=non-linear =3 Trapezoidal rule in space Theta=non-linear UNIVERSAL =4 Finite elements in space Theta=specified UNIVERSAL =5 Finite elements in space Theta=non-linear UNIVERSAL =6 Finite elements in space Theta=specified NONE =7 Finite elements in space Theta=non-linear NONE =8 Finite elements in space Theta=specified DOWNWIND+INTERFACE TRACKING =9 Finite elements in space Theta=non-linear DOWNWIND+INTERFACE TRACKING

Here is the caller graph for this function:

◆ get_ele_type()

subroutine, public copy_outof_state::get_ele_type	(	integer, intent(in)	x_nloc,
		integer, intent(inout)	cv_ele_type,
		integer, intent(inout)	p_ele_type,
		integer, intent(inout)	u_ele_type,
		integer, intent(inout), optional	mat_ele_type,
		integer, intent(inout), optional	u_sele_type,
		integer, intent(inout), optional	cv_sele_type
	)

: Obtain the type of element u_ele_type = cv_ele_type = p_ele_type will flag the dimension and type of element: = 1 or 2: 1D (linear and quadratic, respectively) -NOT SUPPORTED- = 3 or 4: triangle (linear or quadratic, respectively) = 5 or 6: quadrilateral (bi-linear or tri-linear, respectively)-NOT SUPPORTED- = 7 or 8: tetrahedron (linear or quadratic, respectively) = 9 or 10: hexahedron (bi-linear or tri-linear, respectively) -NOT SUPPORTED-

Here is the caller graph for this function:

◆ get_ele_type_new()

subroutine, public copy_outof_state::get_ele_type_new	(	type(multi_dimensions), intent(in)	Mdims,
		type (multi_discretization_opts)	Mdisopt
	)

: Obtains the element type Mdisoptu_ele_type = Mdisoptcv_ele_type = Mdisoptp_ele_type will flag the dimension and type of element: = 1 or 2: 1D (linear and quadratic, respectively) -NOT SUPPORTED- = 3 or 4: triangle (linear or quadratic, respectively) = 5 or 6: quadrilateral (bi-linear or tri-linear, respectively) -NOT SUPPORTED- = 7 or 8: tetrahedron (linear or quadratic, respectively) = 9 or 10: hexahedron (bi-linear or tri-linear, respectively) -NOT SUPPORTED-

Here is the caller graph for this function:

◆ get_primary_scalars_new()

subroutine, public copy_outof_state::get_primary_scalars_new	(	type( state_type ), dimension( : ), intent(in)	state,
		type (multi_dimensions)	Mdims
	)

This subroutine extracts all primary variables associated with the mesh from state, and associated them with the variables used in the MultiFluids model.

Here is the caller graph for this function:

◆ get_var_from_packed_state()

subroutine, public copy_outof_state::get_var_from_packed_state	(	type(state_type), intent(inout)	packed_state,
		real, dimension(:,:), optional, pointer	FEDensity,
		real, dimension(:,:), optional, pointer	OldFEDensity,
		real, dimension(:,:), optional, pointer	IteratedFEDensity,
		real, dimension(:,:), optional, pointer	Density,
		real, dimension(:,:), optional, pointer	OldDensity,
		real, dimension(:,:), optional, pointer	IteratedDensity,
		real, dimension(:,:), optional, pointer	PhaseVolumeFraction,
		real, dimension(:,:), optional, pointer	OldPhaseVolumeFraction,
		real, dimension(:,:), optional, pointer	IteratedPhaseVolumeFraction,
		real, dimension(:,:,:), optional, pointer	Velocity,
		real, dimension(:,:,:), optional, pointer	OldVelocity,
		real, dimension(:,:,:), optional, pointer	IteratedVelocity,
		real, dimension(:,:), optional, pointer	FEPhaseVolumeFraction,
		real, dimension(:,:), optional, pointer	OldFEPhaseVolumeFraction,
		real, dimension(:,:), optional, pointer	IteratedFEPhaseVolumeFraction,
		real, dimension(:,:,:), optional, pointer	NonlinearVelocity,
		real, dimension(:,:,:), optional, pointer	OldNonlinearVelocity,
		real, dimension(:,:,:), optional, pointer	IteratedNonlinearVelocity,
		real, dimension(:,:,:), optional, pointer	ComponentDensity,
		real, dimension(:,:,:), optional, pointer	OldComponentDensity,
		real, dimension(:,:,:), optional, pointer	IteratedComponentDensity,
		real, dimension(:,:,:), optional, pointer	ComponentMassFraction,
		real, dimension(:,:,:), optional, pointer	OldComponentMassFraction,
		real, dimension(:,:), optional, pointer	Temperature,
		real, dimension(:,:), optional, pointer	OldTemperature,
		real, dimension(:,:), optional, pointer	IteratedTemperature,
		real, dimension(:,:), optional, pointer	FETemperature,
		real, dimension(:,:), optional, pointer	OldFETemperature,
		real, dimension(:,:), optional, pointer	IteratedFETemperature,
		real, dimension(:,:,:), optional, pointer	IteratedComponentMassFraction,
		real, dimension(:,:,:), optional, pointer	FEComponentDensity,
		real, dimension(:,:,:), optional, pointer	OldFEComponentDensity,
		real, dimension(:,:,:), optional, pointer	IteratedFEComponentDensity,
		real, dimension(:,:,:), optional, pointer	FEComponentMassFraction,
		real, dimension(:,:,:), optional, pointer	OldFEComponentMassFraction,
		real, dimension(:,:,:), optional, pointer	IteratedFEComponentMassFraction,
		real, dimension(:,:,:), optional, pointer	Pressure,
		real, dimension(:,:,:), optional, pointer	FEPressure,
		real, dimension(:,:,:), optional, pointer	OldFEPressure,
		real, dimension(:,:,:), optional, pointer	CVPressure,
		real, dimension(:,:,:), optional, pointer	OldCVPressure,
		real, dimension(:,:), optional, pointer	CV_Immobile_Fraction,
		real, dimension(:,:), optional, pointer	Coordinate,
		real, dimension(:,:), optional, pointer	VelocityCoordinate,
		real, dimension(:,:), optional, pointer	PressureCoordinate,
		real, dimension(:,:), optional, pointer	MaterialCoordinate,
		real, dimension(:,:), optional, pointer	CapPressure,
		real, dimension(:,:), optional, pointer	Immobile_fraction,
		real, dimension(:,:), optional, pointer	EndPointRelperm,
		real, dimension(:,:), optional, pointer	RelpermExponent,
		real, dimension(:,:), optional, pointer	Cap_entry_pressure,
		real, dimension(:,:), optional, pointer	Cap_exponent,
		real, dimension(:,:), optional, pointer	Imbibition_term,
		real, dimension(:,:), optional, pointer	Concentration,
		real, dimension(:,:), optional, pointer	OldConcentration,
		real, dimension(:,:), optional, pointer	IteratedConcentration,
		real, dimension(:,:), optional, pointer	FEConcentration,
		real, dimension(:,:), optional, pointer	OldFEConcentration,
		real, dimension(:,:), optional, pointer	IteratedFEConcentration,
		real, dimension(:,:), optional, pointer	Enthalpy,
		real, dimension(:,:), optional, pointer	OldEnthalpy,
		real, dimension(:,:), optional, pointer	IteratedEnthalpy,
		real, dimension(:,:), optional, pointer	FEEnthalpy,
		real, dimension(:,:), optional, pointer	OldFEEnthalpy,
		real, dimension(:,:), optional, pointer	IteratedFEEnthalpy
	)

@DEPRECATED: Gets memory from packed state This subroutine returns a pointer to the desired values of a variable stored in packed state All the input variables (but packed_stated) are pointers following the structure of the *_ALL variables and also all of them are optional, hence you can obtaine whichever you want

################EXAMPLE OF USAGE OF THIS SUBROUTINE:

If we want to get the velocity and the phasevolumefraction one should proceed this way: Define variables: real, dimension(:,:,:), pointer :: Velocity_pointer real, dimension(:,:), pointer :: PhaseVolumeFraction_pointer Assign the pointers call get_var_from_packed_state(packed_state, Velocity = Velocity_pointer, PhaseVolumeFraction = PhaseVolumeFraction_pointer)

In this way we only have to introduce the name of the variables we want to get from packed_state

Here is the caller graph for this function:

◆ getfemname()

character (len=field_name_len) function, public copy_outof_state::getfemname ( type(tensor_field), intent(in) tfield )

: For a given field, retrieve the associated finite element field name

Here is the caller graph for this function:

◆ getoldname()

character (len=field_name_len) function, public copy_outof_state::getoldname ( type(tensor_field), intent(in) tfield )

: For a given field, retrieve the associated old field name

Here is the caller graph for this function:

◆ have_option_for_any_phase()

logical function, public copy_outof_state::have_option_for_any_phase	(	character (len=*), intent(in)	path,
		integer, intent(in)	nphase
	)

: Subroutine to check whether an option is true for any phase in diamond, if any is true it returns true. The path must be the part of the path inside the phase, i.e. /multiphase_properties/capillary_pressure

Here is the caller graph for this function:

◆ impose_connected_bcs()

subroutine, public copy_outof_state::impose_connected_bcs	(	type (multi_outfluxes), intent(inout)	outfluxes,
		type(state_type), intent(in)	packed_state,
		type(multi_dimensions), intent(in)	Mdims,
		real, intent(in)	acctime
	)

: Using the outfluxes values, it imposes as BC the averaged value of another BC(from within the domain) It is a basic method to get this functionality but it will work in parallel. However, it does not guarantee mass conservation as it uses the value from the previous time-step although it can still be used for many cases such as ATES, or ventilation. Overwrites the dirichlet BC values. Currently it uses the information from outfluxes so it is MANDATORY to use and request outfluxes for those BCs

Here is the caller graph for this function:

◆ inf_norm_scalar_normalised()

real function, public copy_outof_state::inf_norm_scalar_normalised	(	real, dimension(:,:), intent(in)	tracer,
		real, dimension(:,:), intent(in)	reference_tracer,
		real, intent(in)	dumping,
		real, dimension(2), intent(in)	totally_min_max
	)

Calculate the inf norm of the normalised field, so the field goes from 0 to 1 It requires as inputs the tracer to be used and the reference tracer to normallise, the dumping to be set to 1.0 and totally_min_max which includes the min max values of the field across all processors also for normalisation.

Here is the caller graph for this function:

◆ is_constant()

logical function, public copy_outof_state::is_constant ( type(tensor_field), intent(in) tfield )

: Checks whether a field is constant or not

Here is the caller graph for this function:

◆ pack_multistate()

subroutine, public copy_outof_state::pack_multistate	(	integer, intent(in)	npres,
		type(state_type), dimension(:), intent(inout)	state,
		type(state_type), intent(inout)	packed_state,
		type(state_type), dimension(:), intent(inout), pointer	multiphase_state,
		type(state_type), dimension(:), intent(inout), pointer	multicomponent_state,
		type(state_type), dimension(:,:), optional, pointer	pmulti_state
	)

: This subroutine creates packed_state from state(:) and links the appropiate memory so it is acessible from both states. This subroutine also introduces fields not used by fludity but required by IC-FERST

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prepare_absorptions()

subroutine, public copy_outof_state::prepare_absorptions	(	type(state_type), dimension(:), intent(inout)	state,
		type(multi_dimensions), intent(in)	Mdims,
		type(multi_absorption), intent(inout)	multi_absorp
	)

: Prepares the memory to compute absorption fields

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printcsrmatrix()

subroutine, public copy_outof_state::printcsrmatrix	(	real, dimension(:,:,:), intent(in)	Matrix,
		integer, dimension(:), intent(in)	find,
		integer, dimension(:), intent(in)	col,
		logical, intent(in), optional	dim_same_row
	)

: Subroutine to print CSR matrix by (row, column) Dimensions and phases are printed in different rows So for example Matrix(2,2,10) with two rows would be presented as a matrix ( 8 x 10)

◆ update_outfluxes()

subroutine, public copy_outof_state::update_outfluxes	(	real, dimension(:, :,0:), intent(inout)	bcs_outfluxes,
		type (multi_outfluxes), intent(inout)	outfluxes,
		integer, intent(in)	sele,
		integer, intent(in)	cv_nodi,
		real, intent(in)	suf_area,
		real, dimension(:), intent(in)	Vol_flux,
		real, dimension(:), intent(in)	Mass_flux,
		type (tensor_field), intent(in), pointer	tracer,
		type (tensor_field_pointer), dimension(:)	outfluxes_fields,
		integer, intent(in)	start_phase,
		integer, intent(in)	end_phase
	)

: Updates the outfluxes information based on NDOTQNEW, shape functions and transported fields for a given GI point in a certain element This subroutine should only be called if SELE is on the BOUNDARY Example of Mass_flux: ndotq(iphase) * SdevFunsDETWEI(gi) * LIMT(iphase) Example of Vol_flux: ndotq(iphase) * SdevFunsDETWEI(gi) * LIMDT(iphase)

Parameters

bcs_outfluxes	the total mass entering the domain is captured by 'bcs_outfluxes'
outfluxes	multi_outfluxes field containing the data required to create the output csv file
sele	current surface element
cv_nodi	current control volume
suf_area	surface area
Vol_flux	ndotq(iphase) * SdevFunsDETWEI(gi) * LIMT(iphase)
Mass_flux	ndotq(iphase) * SdevFunsDETWEI(gi) * LIMDT(iphase) (includes tracer and density!)
tracer	field being transported/computed
outfluxes_fields	to extract also from active/passive tracers
start_phase,end_phase	Initial and final phase to be considered here

Here is the caller graph for this function:

Functions/Subroutines

Detailed Description

Function/Subroutine Documentation

◆ adaptive_nonlinear()

◆ as_packed_vector()

◆ as_vector()

◆ calculate_internal_volume()

◆ compute_node_global_numbers()

◆ dump_outflux()

◆ enterforcebalanceequation()

◆ finalise_multistate()

◆ get_convergence_functional()

◆ get_darcyvelocity()

◆ get_discretisation_options()

◆ get_ele_type()

◆ get_ele_type_new()

◆ get_primary_scalars_new()

◆ get_var_from_packed_state()

################EXAMPLE OF USAGE OF THIS SUBROUTINE:

◆ getfemname()

◆ getoldname()

◆ have_option_for_any_phase()

◆ impose_connected_bcs()

◆ inf_norm_scalar_normalised()

◆ is_constant()

◆ pack_multistate()

◆ prepare_absorptions()

◆ printcsrmatrix()

◆ update_outfluxes()
