Reproducible Spatial Transcriptomics Pipeline with RSE Best Practices

Introduction

This exemplar details an analysis pipeline for spatial transcriptomics (10X Xenium platform).

Spatial transcriptomics

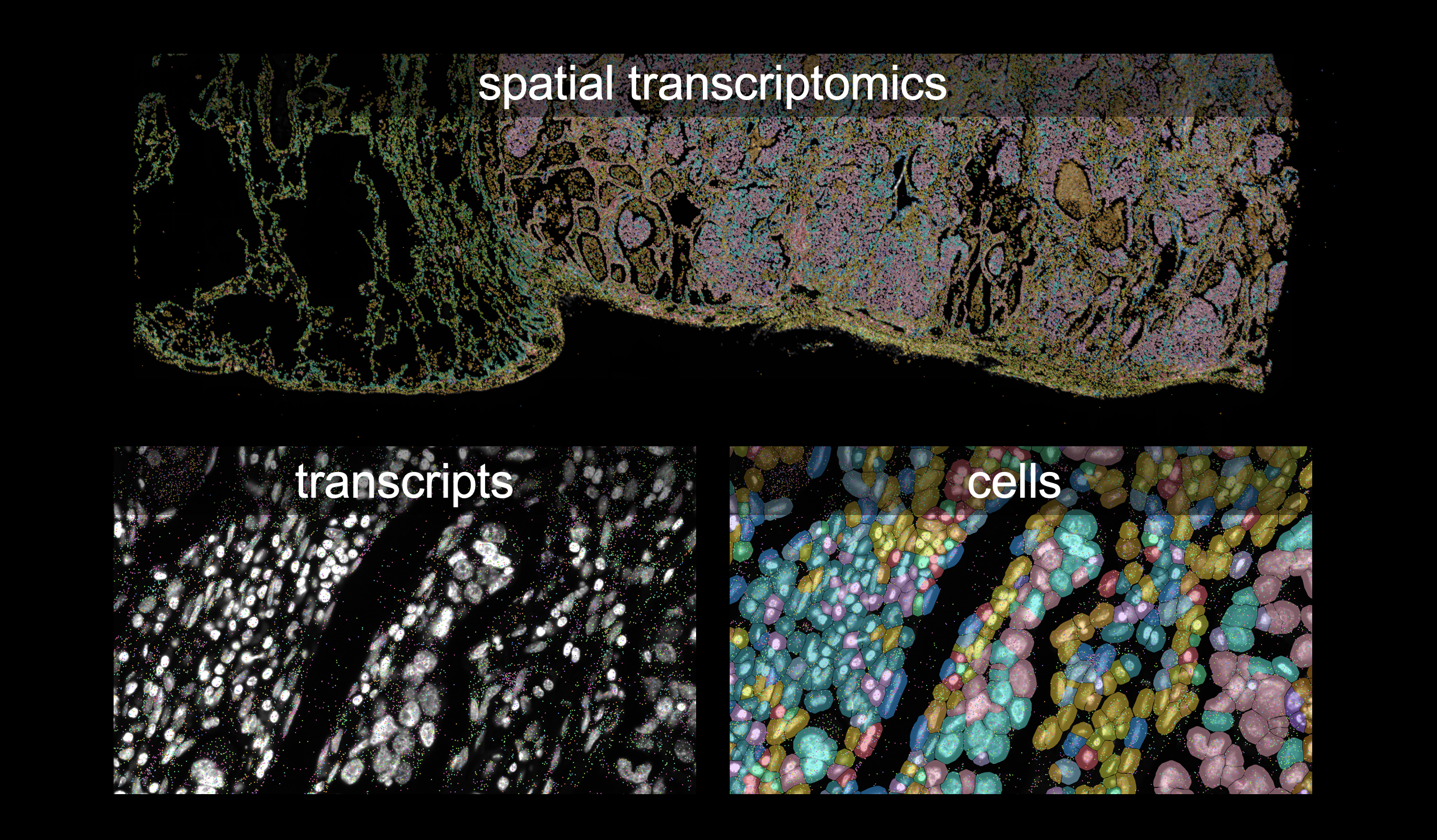

Below is representative image of spatial transcriptomics data. ST Lung cancer FFPE

Spatial transcriptomics analysis pipeline

The pipeline covers preprocessing, quality control, dimensionality reduction, clustering, annotation, viewing spatial images, and spatial statistics (squidpy and MuSpAn).

Cell segmentation is not included in this pipeline as it is performed prior to the analysis using the 10X Genomics Xenium software. If you would like to segment the cells yourself, please refer to the 10X Genomics Nucleus and Cell Segmentation Algorithms for more information.

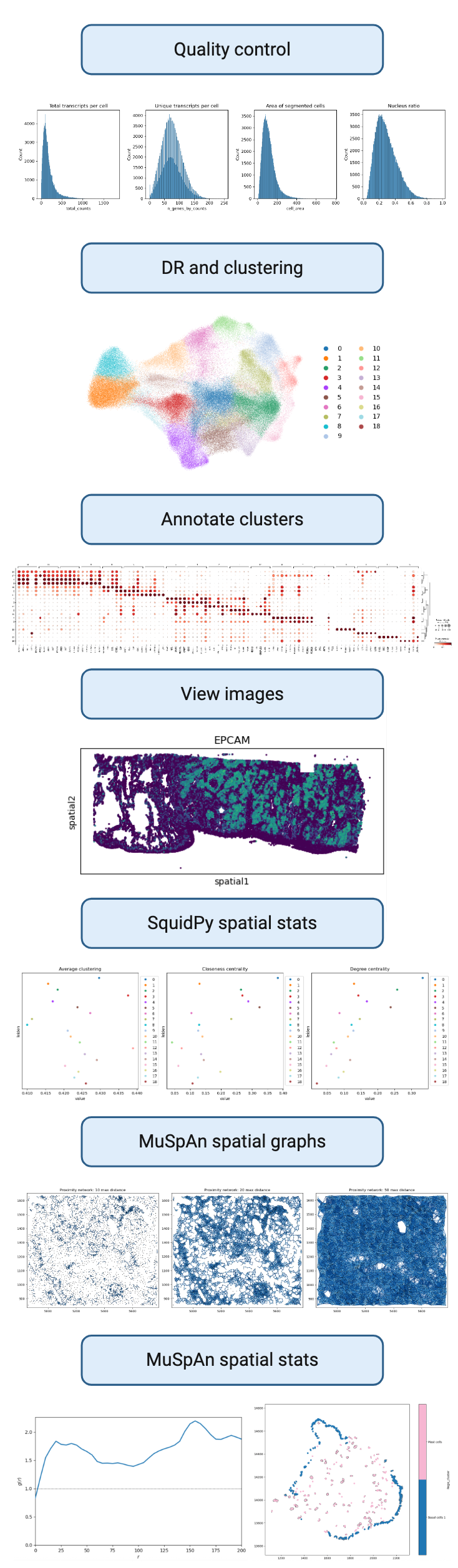

ST Pipeline

Best Practices for Software Engineering

In addition to the analysis pipeline, we highlight several good software engineering practices including version control, containarization, linting, and continuous integration. Details on these practices and how to implement them can be found in the Best Practices for Software Engineering section of the documentation.

Author information

This exemplar was developed at Imperial College London by Sara Patti in collaboration with Adrian D'Alessandro from Research Software Engineering and Jesus Urtasun from Research Computing & Data Science at the Early Career Researcher Institute.

Learning Outcomes 🎓

After completing this exemplar, students will be able to:

  • Describe the key steps in spatial transcriptomic analysis
  • Analyze spatial transcriptomic data and apply spatial statistical methods
  • Design and build a reproducible analysis pipeline
  • Apply research software engineering (RSE) best practices detailed in the RSE Best Practices section

Target Audience 🎯

  1. Scientists interested in analyzing spatial transcriptomics data
  2. Biologists interested in developing bioinformatic pipelines

Prerequisites ✅

Prior to undertaking this exemplar, learners should have the following skills and knowledge:

  • Python
  • Command line interface (CLI)

Although not necessary, we recommend the following skills and knowledge to enhance the learning experience:

  • Spatial transcriptomics data and underlying principles (e.g. 10X Genomics Xenium)
  • Understand data analysis and statistics
  • Familiarity with the scverse ecosystem (e.g. scanpy, squidpy)
  • Structuring python projects and packages

Academic 📚

  • Familiarity with biological concepts and principals (e.g mRNA, gene expression, transcriptomics)
  • Basic understanding of spatial transcriptomics platforms and datasets
  • Familiarity with single-cell RNA sequencing (scRNA-seq) analysis

System 💻

Getting Started 🚀

  1. Start by cloning the repository to your local machine in the directory of your choice

    git clone https://github.com/ImperialCollegeLondon/ReCoDe-spatial-transcriptomics.git

  2. Download the Xenium Lung FFPE data

    • Data can be downloaded from the 10x Genomics website, or directly from the command line.

      • If downloading from the website, download the Xenium_V1_Human_Lung_Cancer_Addon_FFPE_outs.zip file.
      • If downloading from the command line, use the following command:
      curl -O https://cf.10xgenomics.com/samples/xenium/2.0.0/Xenium_V1_Human_Lung_Cancer_Addon_FFPE/Xenium_V1_Human_Lung_Cancer_Addon_FFPE_outs.zip

    • Unzip the downloaded file.

    • If you downloaded the file from the website, unzip it using your preferred method.

    • If you downloaded the file from the command line, use the following command:

      unzip Xenium_V1_Human_Lung_Cancer_Addon_FFPE_outs.zip

  3. Create new virtual environment using conda or venv Full details on how to set up the environment and install necessary packages can be found in the Installation Guide.

    If you are using venv, run the following command:

    cd ReCoDe-spatial-transcriptomics # Ensure you are in the root directory of the repo
python -m venv recode_st # create a new virtual environment named recode_st
source recode_st/bin/activate  # On Windows use: st_env\Scripts\activate
pip install -r requirements.txt # Install required packages
pip install -e .  # Install the package in editable mode to install the st_recode package as defined by pyproject.toml

    If you are using conda, run the following command:

    cd ReCoDe-spatial-transcriptomics # Ensure you are in the root directory of the repo
conda env create -f environment.yml
conda activate recode_st
pip install --no-build-isolation --no-deps -e .
pip install https://docs.muspan.co.uk/code/latest.zip # If you need the MuSpAn modules

    Newest versions for some packages do not support older Macs with Intel CPUs, so we recommend using the conda environment for these systems. If you are using an Apple Silicon Mac, you can use either conda or venv.

  4. Update the config.toml file with the relevant paths and parameters for your analysis. This file contains configuration settings for the analysis pipeline, such as paths to data files and parameters for various steps in the pipeline.

    Additional details can be found in the Configuration Management section of the documentation.

  5. Run the analysis pipeline by executing the main script.

    python -m recode_st config.toml

Software Tools 🛠️

These dependencies are required to run the exemplar:

  • matplotlib
  • numpy
  • pandas[excel]
  • torch
  • scanpy[leiden]
  • spatialdata
  • spatialdata-io
  • squidpy
  • seaborn
  • zarr
  • pydantic

These dependencies are required to develop the exemplar:

  • mkdocs
  • mkdocs-material
  • ruff
  • pre-commit
  • pytest

Project Structure 🗂️

Overview of code organisation and structure.

├── analysis # This will be created by the pipeline and contains the results of the analysis
├── data
│   ├── selected_cells_stats.csv # subset of cells used for the spatial analysis
│   ├── xenium # download and unzipped data here
│   └── xenium.zarr # created by the pipeline
├── docs
│   ├── installation.md # additional doc.md files
│   └── assets
├── src
│   └──recode_st
│      ├── __init__.py
│      ├── __main__.py
│      ├── annotate.py
│      ├── config.py
│      ├── dimension_reduction.py
│      ├── format_data.py
│      ├── helper_function.py
│      ├── logging_config.py
│      ├── ms_spatial_graph.py
│      ├── ms_spatial_stat.py
│      ├── muspan.py
│      ├── qc.py
│      ├── spatial_statistics.py
│      └── view_images.py
├── tests
│   ├── test_config.py
│   ├── test_helper_function.py
│   ├── test_logging_config.py
│   └── test_main.py
└── utils

Code is organised into logical components:

  • src contains the code for core modules
  • data contains needed datasets - user must download the data and unzip it
  • docs for documentation
  • tests for testing scripts

Roadmap 🗺️

Preprocessing & Quality Control

Goal: Ensure clean, usable spatial gene expression data.

It is critical to preprocess and perform quality control on the data before proceeding with analysis. This step ensures that the data is clean, usable, and of high quality by removing low quality cells and low quality transcripts.

Steps:

  • Calculate quality metrics
  • Filter low-quality genes and cells
  • Normalize and transform gene counts

Dimensionality Reduction & Clustering

Goal: Identify patterns and groups of similar gene expression profiles.

Dimensionality Reduction a technique used to reduce the number of features (or dimensions) in a dataset while preserving important information. Clustering is a technique used to group similar data points together based on their features. It is critical to determine the most accurate number of clusters to ensure that the clusters are meaningful and representative of the data.

Steps:

  • Compute PCA and neighbors
  • Compute and plot UMAP
  • Cluster cells using Leiden algorithms
  • Visualize clusters on UMAP

Annotation & Cell Type Identification

Goal: Assign biological meaning to clusters.

Annotation is the process of assigning biological meaning to clusters. This typically equates to assigning a cell type identification to each clusters. is the process of identifying the cell types present in the data. Choosing the number of clusters can be challenging and can be seen as more of an art than a science. It is important to choose the number of clusters that best represents the data and the biological question being asked. More information on how to choose the number of clusters can be found in the scRNAseq best practices.

Steps:

  • Compute differentially expressed genes for each cluster
  • Visualize cluster marker genes
  • Identify cell types with marker genes
  • Annotate clusters with known cell types

Spatial Mapping & Visualization

Goal: Map gene expression and clusters back to their spatial context.

  • Overlay expression and clusters on tissue image
  • Plot spatially enriched genes
  • Map cell types or states in space

Spatial Statistics & Spatially Variable Genes

Goal: Quantify spatial patterns and variability utilizing spatial statistics.

We use two different approaches to spatial statistics: Squidpy and MuSpAn.

  • Compute spatial autocorrelation (e.g. Moran's I)

TODO: Differential Expression & Functional Analysis

Goal: Discover meaningful biology.

  • Spatially variable genes (SVGs)
  • DE between regions or conditions
  • Pathway or GO enrichment

Data 📊

Best Practice Notes 📝

  • Git version control
  • Virtual environments (e.g. conda, venv)
  • Code modularity (e.g. functions, classes)
  • Code documentation (e.g. docstrings, comments)
  • Code style (e.g. PEP 8 for Python)
  • Code testing
  • Use of continuous integration (pre-commit, ruff) (?)

Estimated Time ⏳

Task Time
Reading 3 hours
Practising 3 hours

Additional Resources 🔗

Learn more about spatial transcriptomics

Learn more about networks and spatial statistics

Learn more about our tools and libraries

Video Tutorials

We have included bioinformatic bloggers that can help you get started with understanding key concepts in bioinformatics and transcriptomics analysis:

Licence 📄

This project is licensed under the BSD-3-Clause license.
