Code overview

Files

The src directory comprises one main.cc and two other *.cc files which contain essential classes and utility functions. The include folder contains their corresponding header files (*.h).

Dependencies

Eigen library, OpenCV, and Point Cloud library are used in this project.

Workflow

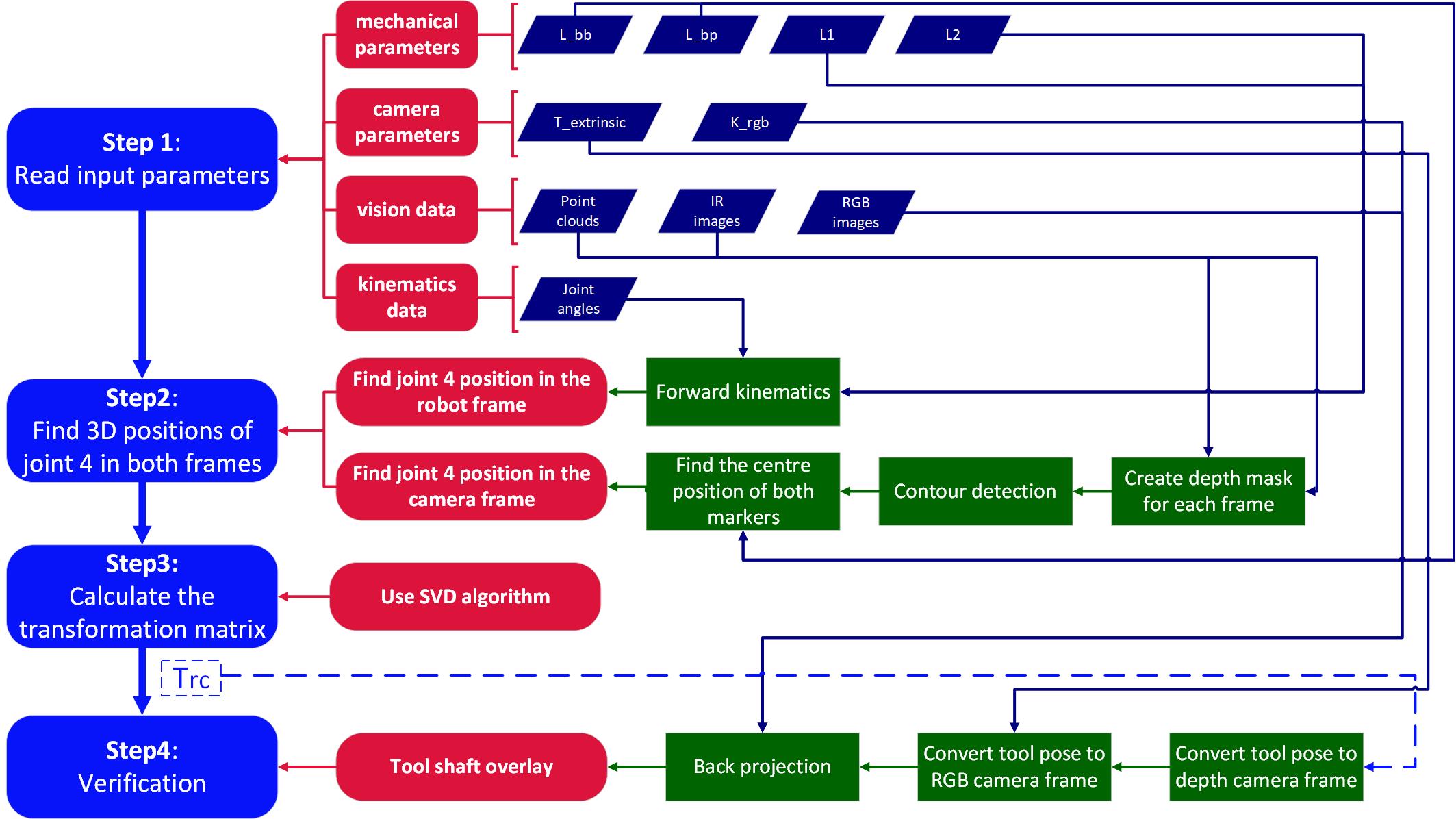

The workflow of main.cc is shown in Fig 1, which consists of four steps. Descriptions for each step and their code implementations are presented below.

workflow
Fig 1. Workflow

Step 1: Read input parameters

1. Mechanical parameters

Mechanical parameters include DH parameters of the tool instrument, radii of two spherical markers, and their relative position when placed on the tool shaft. When reading input parameters, function ReadParameter is used. The corresponding code block is presented below

    ReadParameter(ParameterPath, "ball_1_radius", ball_1_radius);
    ReadParameter(ParameterPath, "ball_2_radius", ball_2_radius);
    ReadParameter(ParameterPath, "l1", l1);
    ReadParameter(ParameterPath, "l2", l2);

2. Camera parameters

Camera parameters include the intrinsic matrix of the RGB lens and the extrinsic matrix between the RGB and depth lens. They are both \(\textrm{4} \times \textrm{4}\) matrices with numbers of double precision, and hence we use the function ReadMatrixFromTxt to read data

    ReadMatrixFromTxt(Intrinsic_path, Intrinsic_matrix);
    ReadMatrixFromTxt(Extrinsic_path, Extrinsic_matrix);

3. Vision data

Vision data includes recorded infrared images, colour images and point clouds captured by the depth camera as the instrument was being moved to different positions. We first delare a class object to process vision data.

    FeatureDetection DepthCamera;

Then we feed camera parameters into this object

    DepthCamera.ReadIntrinsicMatrix(Intrinsic_matrix);
    DepthCamera.ReadAcusenseDepth2RGBMat(Extrinsic_matrix);

When reading image frames, we simply call the built-in OpenCV function cv::imread, and when we read point cloud input, we use the class function FeatureDetection::ReadPointCloudPCD.

4. Kinematics data

Kinematics data in this project only contains recorded joint angle positions when the instrument was being moved to different positions. These recorded positions are stored in an Eigen matrix, and hence to read these inputs we still call back the function ReadMatrixFromTxt.

Step 2: Find the 3D position of joint 4 in both the robot and camera frame

1. Find joint 4 position in the robot frame

We can find the 3D position of joint 4 from joint angle recordings through forward kinematics by using the function GetJoint4Position

    GetJoint4Position(JointAngleList, Joint4PosList_robot, l1, l2);

Then joint 4 positions in the robot frame is stored in Joint4PosList_robot as an Eigen matrix with numbers of double precision.

2. Find joint 4 position in the camera frame

To find joint 4 position in the camera coordinate for each frame, we need to leverage the markers and call back the public class function FeatureDetection::ReconstructJ4Position

    Eigen::Vector3d pos_j4_camera = DepthCamera.ReconstructJ4Position(img_depth, frame_cloud, ball_1_radius, ball_2_radius);
A detailed description for this function is presented in FeatureDetection.md.

We iterate through all the recorded image frames and stack the reconstructed joint 4 position into an Eigen matrix Joint4PosList_camera. Then we are ready to find out the transformation matrix between the camera and robot frame.

Step 3: Calculate the transformation matrix

Using the algorithm described in Background.md, we created a function SVD_rigid_transform to find transformation matrix between two sets of 3D points

    Eigen::Matrix4d Trc = SVD_rigid_transform(Joint4PosList_camera, Joint4PosList_robot),
                    Tcr = Trc.inverse();

A detailed description for this function is presented in EigenLibraryIntro.md.

Step 4: Verification

To verify our calculation, we aim to overlay the 3D tool shaft onto the last image frame. With an accurate transformation matrix, the back projection of the 3D tool shaft should align with its visual observation.

We first feed the transformation matrix into the camera object

    DepthCamera.ReadHandEyeTransform(Tcr);

The central line of the tool shaft is defined by two points on the line. We choose joint 4 and the remote centre of motion (RCM), the origin point, to represent the tool shaft. The 3D positions of the RCM and joint 4 in the robot frame are rcm_pos_robot and j4_pos_robot, respectively.

Then we convert these two points into the depth camera frame via \(\textrm{T} _ \textrm{cr}\)

    DepthCamera.cvt2cameraFrame(rcm_pos_robot, rcm_pos_cam);
    DepthCamera.cvt2cameraFrame(j4_pos_robot, j4_pos_cam);

Afterwards, we back project rcm_pos_cam and j4_pos_cam onto the colour image via the camera intrinsic matrix, and we draw a dashed line connecting these two points.

    cv::Mat img_overlay = DepthCamera.drawShaftAxisColourAcusense(img_colour, "overlay", rcm_pos_cam, j4_pos_cam);

Finally, we save the overlayed image as output

    std::string img_overlay_filename = output_folder_path + "overlay.jpg";
    cv::imwrite(img_overlay_filename, img_overlay);
