Single-Threaded version
We start with the single-threaded version. This code executes the computation of the Mandelbrot set sequentially, processing each pixel one after the other without using concurrent execution or synchronization. This C++ code generates and saves a visualization of the Mandelbrot set for a given pixel grid (in this case ). The computeMandelbrot function iterates over each pixel, calculating how many iterations it takes for the complex function to escape a defined boundary (magnitude greater than 2), storing the iteration counts in a vector.

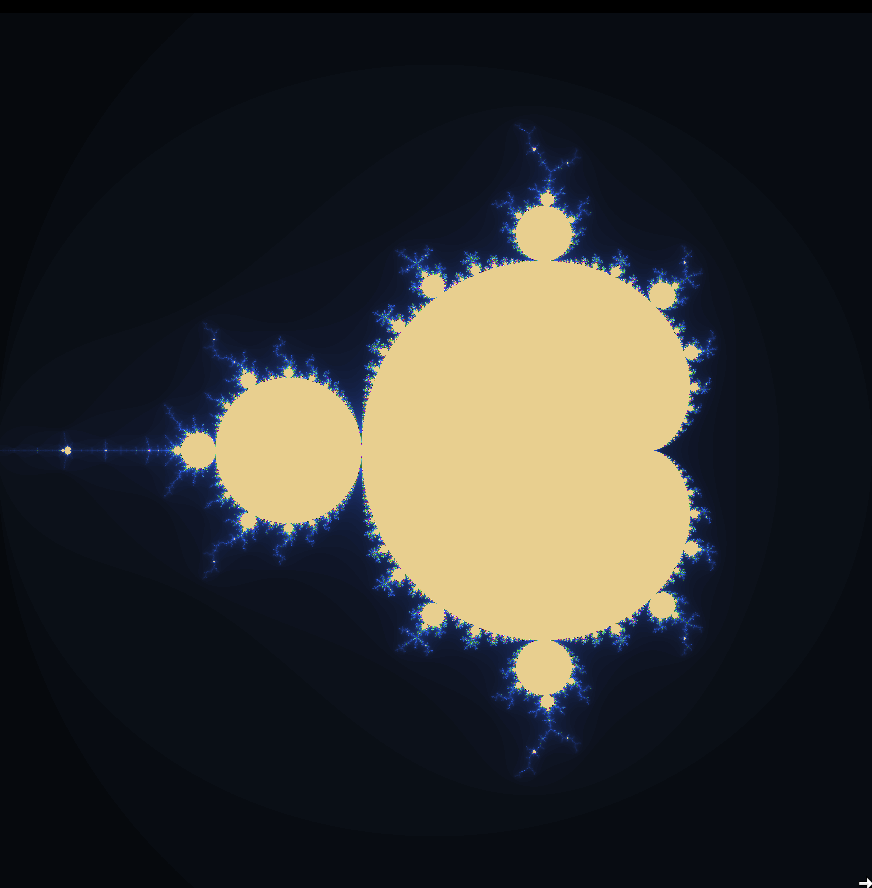

After we generate the Mandelbrot set, the save_ppm function writes the resulting iteration data to a PPM file, which enables us to visualize the set directly. We will cover each section of the code one by one, explaining the main tools and techniques used.
#include <iostream>
#include <complex>
#include <fstream>
#include <vector>
#include <chrono>//used to calculate time of execution
#include <thread>// used later for multithreading
constexpr int X = 1000; // X of the image (pixels)
constexpr int Y = 1000; // Y of the image(pixels)
constexpr int MAX_ITER = 1000; // Maximum number of iterations
//This values are the constants according to the set (reference books)
constexpr double X_MIN = -2.0; // Minimum x-axis value
constexpr double X_MAX = 1.0; // Maximum x-axis value
constexpr double Y_MIN = -1.5; // Minimum y-axis value
constexpr double Y_MAX = 1.5; // Maximum y-axis value
// Function to compute the Mandelbrot set
std::vector<int> computeMandelbrot() {
std::vector<int> iterations(X * Y );
// This corresponds to the chrono library. We start the execution time.
double total_scaling_time = 0.0;
double total_iteration_time = 0.0;
// outer loops runs through each row y and the inner loop runs through each column x.
for (int y = 0; y < Y ; ++y) {
for (int x = 0; x < X ; ++x) {
auto start_scaling = std::chrono::high_resolution_clock::now();//start taking time
double real = X_MIN + (X_MAX - X_MIN) * x / (X - 1);
double imag = Y_MIN + (Y_MAX - Y_MIN) * y / (Y - 1);
// creation of a complex number mapped into the pixel (x,y)
std::complex<double> c(real, imag);
// z starts from zero as defined by the algorithmus.
std::complex<double> z(0.0, 0.0);
auto end_scaling = std::chrono::high_resolution_clock::now();//stop taking time
// display of the total time of this section
total_scaling_time += std::chrono::duration_cast<std::chrono::microseconds>(end_scaling - start_scaling).count() / 1e6;
// declaration of the iteration number: iter
int iter;
auto start_iteration = std::chrono::high_resolution_clock::now();//start taking time
for (iter = 0; iter < MAX_ITER; ++iter) {
// the magnitude of z=2 is fixed.
if (std::abs(z) > 2.0) break;
z = z * z + c;
}
auto end_iteration = std::chrono::high_resolution_clock::now();//stop taking time
// display of the total time of this section
total_iteration_time += std::chrono::duration_cast<std::chrono::microseconds>(end_iteration - start_iteration).count() / 1e6;
iterations[y * X + x] = iter;
}
}
// Give the the total scaling and iteration time.
std::cout << "Total scaling time: " << total_scaling_time << " seconds" << std::endl;
std::cout << "Total iteration time: " << total_iteration_time << " seconds" << std::endl;
// Give the iterations counts for each pixel in the image.
return iterations;
}
// Function to save the Mandelbrot set to a PPM image file with gradient coloring.
void save_ppm(const std::vector<int>& iterations, const std::string& filename) {
std::ofstream ofs(filename, std::ios::binary);
ofs << "P6\n" << X << " " << Y << "\n255\n";
for (int i = 0; i < X * Y ; ++i) {
int iter = iterations[i];
// Map iteration count to a color using a smooth gradient
unsigned char r = static_cast<unsigned char>(iter % 256);
unsigned char g = static_cast<unsigned char>((iter *2) % 256);
unsigned char b = static_cast<unsigned char>((iter *5) % 256);
ofs << r << g << b;
}
ofs.close();
}
// We call the function to compute the Mandelbrot set along with time measurements. Execution begins.
int main() {
std::cout << "Width of the image:" << X << std::endl;
std::cout << "Height of the image: " << Y << std::endl;
auto start_compute = std::chrono::high_resolution_clock::now();
std::vector<int> iterations = computeMandelbrot();
auto end_compute = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_compute = end_compute - start_compute;
std::cout << "Total time taken to compute the Mandelbrot set (single-threaded version): " << elapsed_compute.count() << " seconds" << std::endl;
int num_cpus = std::thread::hardware_concurrency();
std::cout << "Number of CPUs used: " << num_cpus << std::endl;
auto start_save = std::chrono::high_resolution_clock::now();
//Save results
//We call the function to save iterations in PPM format.
save_ppm(iterations, "mandelbrot_gradient.ppm");
auto end_save = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_save = end_save - start_save;
std::cout << "Total time it takes to generate image: " << elapsed_save.count() << " seconds" << std::endl;
std::cout << "Mandelbrot set with colormap: mandelbrot_gradient.ppm" << std::endl;
return 0;
}
The Header
We start by defining the header we introduce in the code. The specific commands in example snippets will be explained later in the next subsection in the body of the code. These are just examples to get you a feel of what the headers provide.
#include <iostream>
#include <complex>
#include <fstream>
#include <vector>
#include <chrono> // Used to calculate execution time
#include <thread> // Used later for multithreading
The <iostream> header manages standard input/output streams, like std::cout for printing to the console. Here is an example of the famous "Hello, World!".
#include <iostream>
int main() {
std::cout << "Hello, World!" << std::endl; // Outputs visible in the console
return 0;
}
The <complex> header allows you to work with complex numbers, which is what we will need in this code. Complex numbers have both a real and an imaginary part. Here is an example where we create a complex number and display it.
#include <iostream>
#include <complex>
int main() {
std::complex<double> num(3.0, 4.0); // Create a complex number for example 3 + 4i
std::cout << "Real part: " << num.real() << ", Imaginary part: " << num.imag() << std::endl;
return 0;
}
Definition of constants
constexpr int X = 1000;
constexpr int Y = 1000;
constexpr int MAX_ITER = 1000;
constexpr double X_MIN = -2.0;
constexpr double X_MAX = 1.0;
constexpr double Y_MIN = -1.5;
constexpr double Y_MAX = 1.5;
The constexpr keyword is used to define variables, functions, and constructors that can be calculated when the code is compiled. This means the compiler finds their values while creating the program, not while it is running. This enables the compiler to make the code run faster.
XandY: Define the dimensions of the output image in pixels, such as width and height.MAX_ITER: The maximum number of iterations for checking the divergence of the sequence in the Mandelbrot formula.X_MIN,X_MAX,Y_MIN,Y_MAX: Define the range of the complex plane to be visualized.
This is a simple example of a code that you can compile and run with the defined constants.
#include <iostream>
constexpr int WIDTH = 640;
constexpr int HEIGHT = 480;
int main() {
std::cout << "Image dimensions: " << WIDTH << "x" << HEIGHT << std::endl;
return 0;
}
Mandelbrot set computation function
This section contains the main function responsible for computing the Mandelbrot set once we have carried out the first steps introduced earlier. If you take a closer look, you will find the equation from the Mandelbrot set definition defined earlier. To enable the computer to execute this equation and generate an image based on the number of iterations, we will use nested loops along with various C++ features and commands.
What we want to do here is to compute the Mandelbrot set by iterating over each pixel of a 2D image grid sized . For each pixel, we map its coordinates to a corresponding point in the complex plane. This involves scaling the pixel coordinates to fit within the specified range of the complex plane (from X_MIN to X_MAX for the real part and from Y_MIN to Y_MAX for the imaginary part).
For each point in the complex plane, we then iterate the Mandelbrot formula:
starting from , and continue until either the magnitude of exceeds 2 or the maximum number of iterations (MAX_ITER) is reached. The number of iterations required for the magnitude of to exceed 2 is recorded for each pixel. The iteration counts for all pixels are stored in a vector and returned for further use, which will be used to generate the image.
We are now showing this section of the code and will break down one-by-one the main tools and techniques used.
std::vector<int> computeMandelbrot() {
std::vector<int> iterations(X * Y );
// This corresponds to the chrono library. We start the execution time.
double total_scaling_time = 0.0;
double total_iteration_time = 0.0;
// outer loops runs through each row y and the inner loop runs through each column x.
for (int y = 0; y < Y ; ++y) {
for (int x = 0; x < X ; ++x) {
auto start_scaling = std::chrono::high_resolution_clock::now();//start taking time
double real = X_MIN + (X_MAX - X_MIN) * x / (X - 1);
double imag = Y_MIN + (Y_MAX - Y_MIN) * y / (Y - 1);
// creation of a complex number mapped into the pixel (x,y)
std::complex<double> c(real, imag);
// z starts from zero as defined by the algorithmus.
std::complex<double> z(0.0, 0.0);
auto end_scaling = std::chrono::high_resolution_clock::now();//stop taking time
// display of the total time of this section
total_scaling_time += std::chrono::duration_cast<std::chrono::microseconds>(end_scaling - start_scaling).count() / 1e6;
// declaration of the iteration number: iter
int iter;
auto start_iteration = std::chrono::high_resolution_clock::now();//start taking time
for (iter = 0; iter < MAX_ITER; ++iter) {
// the magnitude of z=2 is fixed.
if (std::abs(z) > 2.0) break;
z = z * z + c;
}
auto end_iteration = std::chrono::high_resolution_clock::now();//stop taking time
// display of the total time of this section
total_iteration_time += std::chrono::duration_cast<std::chrono::microseconds>(end_iteration - start_iteration).count() / 1e6;
iterations[y * X + x] = iter;
}
}
// Give the the total scaling and iteration time.
std::cout << "Total scaling time: " << total_scaling_time << " seconds" << std::endl;
std::cout << "Total iteration time: " << total_iteration_time << " seconds" << std::endl;
// Give the iterations counts for each pixel in the image.
return iterations;
}
std::vector<int> computeMandelbrot() {
// Body of the function
}
computeMandelbrot() is function in which its main goal is to return a vector std::vector<int>, where the number of iterations for each pixel in the Mandelbrot set visualization to determine whether the corresponding point in the complex plane belongs to the Mandelbrot set will be stored. std::vector<int> dynamically allocates memory based on the image size (X * Y pixels). This is the main function that will be used by the caller directly without giving any further input in the parameters. For this reason, we use an empty (). At this point, this is all the information the caller will know and use. This is one of the main features of C++ called encapsulation. All the further details will be handled inside the function.
Initialisation and declaration of the variables: Once we declared the function, we continue with the declaration of the local variables that we will use.
std::vector<int> computeMandelbrot() {
std::vector<int> iterations(X * Y);
// Body of the function
return iterations;
}
The vector iterations is initialized and declared with a fixed size based on the dimensions . Using std::vector enables flexible, dynamic memory management, allowing the program to handle different image sizes without knowing the dimensions when you compile the code. Since every pixel in the image requires a corresponding iteration count, the vector iterations must have elements to store the results. This ensures that the vector can hold exactly one value for each pixel in the image grid. After the entire Mandelbrot set has been computed and the iterations vector is filled with the iteration counts for all the pixels, return iterations; is executed, and the function sends the iterations vector back to the caller.
Outer loop over y (image height) and inner Loop over x (image width):
The main idea of the outer and inner loops is to iterate over every pixel in a 2D grid. The nested loop ensures that every pixel in the image is processed. Every (x, y) pair corresponds to a pixel in the image, which will be mapped to a complex number in the Mandelbrot domain of the set. C++ is case sensitive, so note the difference between x and X.
for (int y = 0; y < Y; ++y) {
for (int x = 0; x < X; ++x) {
// Body of the function
}
}
Here, int y = 0; y < Y; ++y means the loop starts at y = 0 (the first row) and increments y until it reaches Y (the total number of rows). The expression ++y is the pre-increment operator. It increments the value of y by 1, then uses the updated value of y once the iteration loop is completed. It stops once y == Y. The same is valid for the inner loop using x. You can apply this straightforward loop configuration to all types of 2D grids or matrices to iterate over all the elements.
Mapping image coordinates to complex plane:
Inside the nested loop, the Mandelbrot set is defined in the complex plane, which is defined using real and imag. For this reason, what we do next inside the nested loop is to map the image pixel coordinates (x, y) to a point in the complex plane.
double real = X_MIN + (X_MAX - X_MIN) * x / (X - 1);
double imag = Y_MIN + (Y_MAX - Y_MIN) * y / (Y - 1);
x / (X - 1) and y / (Y - 1) are used to normalize the pixel coordinates (x, y), mapping them to a range from 0 to 1.
For example:
When x = 0, x / (X - 1) becomes 0.
When x = X - 1 (the pixel at the right end), x / (X - 1) becomes 1. Exactly the same applies to y.
The normalized values x / (X - 1) and y / (Y - 1) are scaled to the desired ranges. To perform this scaling, you take the normalized value and multiply it by the total range: (X_MAX - X_MIN) or (Y_MAX - Y_MIN). After this is done, X_MIN or Y_MIN is added, respectively, to move the values to the correct location in the complex plane. Note that we use floating-point double precision to capture fine details.
Creating complex number c and initializing z:
In order to compute iterative formula of the Mandelbrot set, we need to define its components as follows.
std::complex<double> c(real, imag);
std::complex<double> z(0.0, 0.0);
where c is the complex number corresponding to the pixel (x, y). It is created using the previously calculated real and imag values. z is initialized to 0 + 0i (the origin in the complex plane), as the formula indicates. Note that we use std::complex<double> which is a part of the C++ Standard Library, enabling us to represent and manipulate complex numbers.
Initializing the iteration count and its loop:
We initialize iter to track how many iterations it takes for the complex number to escape (if it makes it at all). This loop is a core part of generating the Mandelbrot fractal. The final value of iter tells us whether the point escapes quickly or stays within the set, allowing us to color the corresponding pixel accordingly.
int iter;
for (iter = 0; iter < MAX_ITER; ++iter) {
if (std::abs(z) > 2.0) break;
z = z * z + c;
}
Following the same structure used previously in the nested loops, this is a loop that runs up to a maximum number of iterations (MAX_ITER), incrementing iter by 1 on each pass. The difference here, however, is that our loop has the condition if (std::abs(z) > 2.0) break;. This condition checks if the magnitude (absolute value) of the complex number z has exceeded 2. This complex number is the Mandelbrot iteration formula z = z * z + c;. If the magnitude of z becomes larger than 2, we "break" out of the loop early (stop iterating) because the point is guaranteed to "escape" and is not part of the Mandelbrot set, and it gets assigned a color based on how fast it escapes. The value 2 is the threshold. Points that never escape (they reach MAX_ITER) are considered part of the Mandelbrot set and get a fixed color.
Storing the iteration count in the vector:
Outside of the iteration count loop, we proceed with storing the iter in the iterations vector defined at the beginning of this function.
iterations[y * X + x] = iter;
1D obtained from data in a grid. We need to work in one dimension because std::vector<int> is one-dimensional.
The return iterations; statement is used to return the iterations vector from the function computeMandelbrot. This vector has the values we need to use as contour values in the image.
The <chrono> library to measure computing time:
The chrono library in C++ is part of the standard library, and it is a tool that allows you to measure time intervals and manage durations in your programs.
The following lines declare two variables, total_scaling_time and total_iteration_time, both of type double, and initialize them to 0.0.
double total_scaling_time = 0.0;
double total_iteration_time = 0.0;
auto start_scaling = std::chrono::high_resolution_clock::now(); // start taking time
// Body of the scaling section
auto end_scaling = std::chrono::high_resolution_clock::now(); // stop taking time
The std::chrono::high_resolution_clock is part of the chrono library and provides a high-resolution timer. The auto keyword lets the compiler figure out the type of a variable based on what you assign to it. Here, start_scaling and end_scaling will be of type std::chrono::high_resolution_clock::time_point, which is used to represent a specific moment in time.
The following line serves to calculate the overall duration of the scaling and accumulates this time in total_scaling_time.
total_scaling_time += std::chrono::duration_cast<std::chrono::microseconds>(end_scaling - start_scaling).count() / 1e6;
start_scaling and end_scaling. Both start_scaling and end_scaling are of type std::chrono::high_resolution_clock::time_point, which represents a point in time. The result of this subtraction is a std::chrono::duration. The duration_cast function converts the calculated duration into a specific duration type—in this case, microseconds (std::chrono::microseconds). The count() method gets the number that represents the duration in microseconds. To display the results in seconds, we need, however, to divide it by 1e6. Finally, the result from the above calculations (the time in seconds) is added to the variable total_scaling_time. Note that the operator += in the expression is used for accumulating values, which is equivalent to this:
total_scaling_time = total_scaling_time + (calculated_time);
std::cout << "Total scaling time: " << total_scaling_time << " seconds" << std::endl;
Saving to PPM (image) function
The function save_ppm is responsible for saving the results of the Mandelbrot set computation to a PPM (Portable Pixmap) image file with gradient coloring. We use this format because it does not require any additional installation (unlike PNG, JPG, and others).
void saveToPPM(const std::vector<int>& iterations, const std::string& filename) {
std::ofstream ofs(filename, std::ios::binary);
ofs << "P6\n" << X << " " << Y << "\n255\n";
for (int i = 0; i < X * Y ; ++i) {
int iter = iterations[i];
// Map iteration count to a color using a smooth gradient
unsigned char r = static_cast<unsigned char>(iter % 256);
unsigned char g = static_cast<unsigned char>((iter *2) % 256);
unsigned char b = static_cast<unsigned char>((iter *5) % 256);
ofs << r << g << b;
}
ofs.close();
}
Function and input Parameters:
The return type void indicates that this function does not return any value. What we want to do here is an action (saving an image) without providing any data back to the caller; for this reason, it is the appropriate option.
void save_ppm(const std::vector<int>& iterations, const std::string& filename) {
// Body of the function
}
The parameter const std::vector<int>& iterations inside the function represents the data to be saved, specifically a vector (std::vector<int>) of iteration counts for each pixel in the Mandelbrot set. It is passed by constant reference (const &). This means that const indicates that the data inside the vector cannot be modified by the function and & (reference) means that instead of passing a copy of the vector, a reference is passed, avoiding unnecessary duplication and saving memory, reducing overhead. What we mean by overhead is the additional computations, allocations, or operations that do not contribute directly to the primary functionality of the code, affecting performance and efficiency.
The parameter const std::string& filename represents the name of the file to which the Mandelbrot set image will be saved. Note that including filename makes it clear what the function is intended to do. Also, if you were to pass the filename as a regular std::string (by value without the &), the function would make a copy of that string; for this reason, we keep passing by reference as well.
Opening the output file:
Once we go inside the function, std::ofstream ofs creates a file stream to write data to the specified file which in this case is filename. The flag std::ios::binary opens the file in binary mode and ensures the data is written in raw binary format, which is important for image files.
std::ofstream ofs(filename, std::ios::binary);
std::ofstream stands for output file stream, which is a class in the <fstream> library designed to handle writing to files. ofs is the name of the std::ofstream object we are creating. The binary mode of std::ios::binary is important here. For an image file like a PPM file (which contains pixel data), you don't want any translation; what you want is the exact binary data written to the file. The default option is text mode, and this might convert certain characters to make them more readable or conform to your specific platform.
Writing the PPM header:
The main purpose of the following line is to write the header of a PPM image file in the P6 format. The header is a block of metadata (format type, dimensions, color range) placed at the beginning of a file that contains important information about the file's contents. The PPM format supports two variations: P3 (ASCII mode) and P6 (binary mode). P6 format stores the pixel data in binary, making it compact and efficient to read/write.
ofs << "P6\n" << X << " " << Y << "\n255\n";
Here, ofs << "P6\n" writes the string "P6\n" to the file stream ofs. "P6" specifies that the file format is PPM in binary mode. \n represents a newline character. This ensures that each part of the header appears on its own line as required by the PPM format specification.
ofs << "P6\n" << X << " " << Y << "\n255\n" writes the image dimensions (width and height) to the file. ofs << "\n255\n" specifies the maximum color value, 255, for 8-bit color channels. An example of the P6 format header containing these three specifications can be shown as follows:
P6
5000 5000
255
Writing the pixel data and closing:
This section of the code is responsible for writing the computed set to an image file (in PPM format). The following loop transforms the computed iteration counts into color values (red, green, and blue components) for each pixel.
for (int i = 0; i < X * Y ; ++i) {
int iter = iterations[i];
unsigned char r = static_cast<unsigned char>(iter % 256);
unsigned char g = static_cast<unsigned char>((iter *2) % 256);
unsigned char b = static_cast<unsigned char>((iter *5) % 256);
ofs << r << g << b;
}
ofs.close();
for (int i = 0; i < X * Y; ++i) is a for loop that iterates over every pixel in the image. The image has X * Y pixels, where X is the width and Y is the height. i is the loop counter, running from 0 to X * Y - 1 (inclusive). The choice of X * Y - 1 ensures that the loop correctly iterates through all pixel indices in a zero-based indexing system.
int iter = iterations[i];: Here, iter is the number of iterations (from the Mandelbrot computation) for the pixel at position i. iterations is a vector that stores the iteration count for every pixel, so iterations[i] gives the number of iterations required for the pixel at position i to either converge or diverge. Note that we have given the same name iter. While we have used this name before in computeMandelbrot(), they exist in different contexts. The one in computeMandelbrot() counts the iterations during the computation of the Mandelbrot set, while the one in save_ppm() retrieves the precomputed iteration count to create an image.
This line of code calculates the red (r) component of a color based on the iteration count. iter % 256 takes the iteration count iter and applies the modulo operator. It ensures that the resulting value is within the range of 0 to 255. This is important because RGB color channels can only represent values within this range. The result of iter % 256 is then converted to an unsigned char. An unsigned char is an 8-bit integer type that can store values from 0 to 255.
unsigned char r = static_cast<unsigned char>(iter % 256);
This line calculates the green (g) component of the color by first multiplying iter by 2. The result is then taken modulo 256, ensuring that the value remains within the range of 0 to 255. This is important because the green color component must fit within this range to be valid for RGB representation in image files.
unsigned char g = static_cast<unsigned char>((iter *2) % 256);
This line calculates the blue (b) component of the color by multiplying iter by 5 and then taking the result modulo 256. By using different multipliers (1 for red, 2 for green, and 5 for blue), the red, green and blue components are assigned different patterns of intensity. This creates a gradient effect in the final image.
unsigned char b = static_cast<unsigned char>((iter *5) % 256);
ofs << r << g << b;: ofs is the output file stream (an std::ofstream object) that was opened to write binary data to the PPM image file. This line writes the red (r), green (g), and blue (b) color values for the current pixel to the file. Each pixel in the image is represented by three consecutive bytes: one for red, one for green, and one for blue. This line outputs those bytes in binary format.
Once the loop finishes writing all the pixel data, the file stream is closed with ofs.close();. This ensures that all data is properly written to the file and the file is saved correctly. If this is not done, some of this data might not be written, leading to a corrupted or incomplete file, and the file might not be readable by other programs.
The caller function
The caller function in C++ serves as the entry point for any program. It is where the execution starts and where the tasks are managed. The main function is the designated entry point for any C++ program.
int main() {
std::cout << "Width of the image:" << X << std::endl;
std::cout << "Height of the image: " << Y << std::endl;
auto start_compute = std::chrono::high_resolution_clock::now();
std::vector<int> iterations = computeMandelbrot();
auto end_compute = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_compute = end_compute - start_compute;
std::cout << "Total time taken to compute the Mandelbrot set (single-threaded version): " << elapsed_compute.count() << " seconds" << std::endl;
int num_cpus = std::thread::hardware_concurrency();
std::cout << "Number of CPUs used: " << num_cpus << std::endl;
auto start_save = std::chrono::high_resolution_clock::now();
saveToPPM(iterations, "mandelbrot_gradient.ppm");
auto end_save = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_save = end_save - start_save;
std::cout << "Time it takes to generate image: " << elapsed_save.count() << " seconds" << std::endl;
std::cout << "Mandelbrot set with colormap: mandelbrot_gradient.ppm" << std::endl;
return 0;
}
In C++, the name main cannot be changed. The return type int indicates that this function returns an integer value, which is 0 for successful execution.
int main() {
// List of execution orders
return 0;
}
Calling computeMandelbrot():
This line calls the function computeMandelbrot() and stores the returned vector of integers in the iterations variable.
std::vector<int> iterations = computeMandelbrot();
Saving the results:
Once computeMandelbrot() is executed, save_ppm(iterations, "mandelbrot_gradient.ppm"); calls the save_ppm function, which takes the computed iterations and saves them in a PPM file format.
save_ppm(iterations, "mandelbrot_gradient.ppm");
Display dimensions, number of CPUs, output/confirmation messages and exit:
Display messages are important because the user of the code will have different requirements, and when the code is run, it is useful to read in the console the case that you are running. In this code, the dimensions of the image or grid are displayed as follows:
std::cout << "Width of the image:" << X << std::endl;
std::cout << "Height of the image: " << Y << std::endl;
Y, which represents the width and height of the image, is printed along with descriptive text. std::endl adds a newline and ensures the output is shown immediately.
The following line informs the user how many CPU cores are detected.
int num_cpus = std::thread::hardware_concurrency();
std::cout << "Number of CPUs used: " << num_cpus << std::endl;
std::thread::hardware_concurrency() returns the number of threads the hardware supports. We will use std::thread extensively in the following section on Multithreading and Parallelism.
It is always good practice to output a message indicating that the code has run correctly. You will know that your code has no runtime issues up to this point if the message is displayed.
std::cout << "Mandelbrot set with colormap: mandelbrot_gradient.ppm" << std::endl;
Timing the computeMandelbrot() and the saving of results
We measure in this function too the execution time here and obtain output in the console. This first and second group of lines measures the time taken to compute and save the computed Mandelbrot set to a file, respectiveley.
auto start_compute = std::chrono::high_resolution_clock::now();
std::vector<int> iterations = computeMandelbrot();
auto end_compute = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_compute = end_compute - start_compute;
std::cout << "Total time taken to compute the Mandelbrot set (single-threaded version): " << elapsed_compute.count() << " seconds" << std::endl;
auto start_save = std::chrono::high_resolution_clock::now();
saveToPPM(iterations, "mandelbrot_gradient.ppm");
auto end_save = std::chrono::high_resolution_clock::now();
std::chrono::duration<double> elapsed_save = end_save - start_save;
std::cout << "Total time it takes to generate image: " << elapsed_save.count() << " seconds" << std::endl;
The output
We compile the code as follows.
g++ -std=c++11 -o mandelbrot mandelbrot_set_exploration_main_code_general_single_threaded.cpp -pthread
./mandelbrot
Here, we print-out the total time spent on scaling coordinates and performing iterations.
Width of the image:5000
Height of the image: 5000
Total scaling time: 0.007769 seconds
Total iteration time: 275.241 seconds
Total time taken to compute the Mandelbrot set (single-threaded version): 288.617 seconds
Number of CPUs used: 12
Total time it takes to generate image: 6.57477 seconds
Mandelbrot set with colormap: mandelbrot_gradient.ppm
The following image corresponds to the output file.
Figure: Mandelbrot set output.
Below is a zoomed-in section of the image using ParaView which we will cover in the following section.
Figure: Zommed-in section of the Mandelbrot set using ParaView.
