dummy_opus_interface

frog.hardware.plugins.spectrometer.dummy_opus_interface

Provides a dummy EM27 device for interfacing with.

Classes

DummyOPUSInterface(measure_duration=1.0)

Bases: OPUSInterfaceBase

A mock version of the OPUS API for testing purposes.

Create a new DummyOPUSInterface.

Parameters:

Name	Type	Description	Default
measure_duration	float	How long a single measurement takes (seconds)	1.0

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def __init__(self, measure_duration: float = 1.0) -> None:
    """Create a new DummyOPUSInterface.

    Args:
        measure_duration: How long a single measurement takes (seconds)
    """
    super().__init__()

    self.state_machine = OPUSStateMachine(measure_duration)
    """An object representing the internal state of the device."""

    # Monitor state changes
    self.state_machine.add_observer(self)

    # Broadcast initial status
    self.on_enter_state(self.state_machine.current_state)

Attributes

state_machine = OPUSStateMachine(measure_duration) instance-attribute

An object representing the internal state of the device.

Functions

close()

Close the device.

If a measurement is running, cancel it.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def close(self) -> None:
    """Close the device.

    If a measurement is running, cancel it.
    """
    self.state_machine.measure_timer.stop()
    super().close()

on_enter_state(target)

Broadcast state changes via pubsub.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def on_enter_state(self, target: State) -> None:
    """Broadcast state changes via pubsub."""
    self.send_status_message(target.value)

request_command(command)

Execute the specified command on the device.

Parameters:

Name	Type	Description	Default
command	str	The command to run	required

Raises: OPUSError: If the device is in the wrong state for this command

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def request_command(self, command: str) -> None:
    """Execute the specified command on the device.

    Args:
        command: The command to run
    Raises:
        OPUSError: If the device is in the wrong state for this command
    """
    if command not in self._COMMAND_ERRORS:
        OPUSErrorInfo.UNKNOWN_COMMAND.raise_exception()

    self._run_command(command)

OPUSErrorInfo

Bases: Enum

Represents an error code and description for OPUS errors.

The codes and descriptions are taken from the manual.

Functions

raise_exception()

Raise this error as an exception.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def raise_exception(self) -> None:
    """Raise this error as an exception."""
    raise OPUSError.from_response(*self.value)

OPUSStateMachine(measure_duration)

Bases: StateMachine

An FSM for keeping track of the internal state of the mock device.

Create a new OPUSStateMachine.

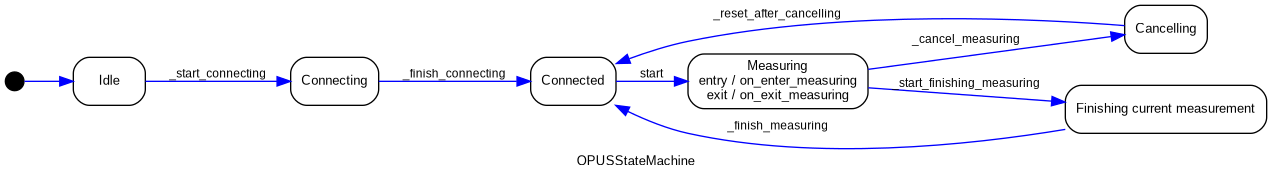

The state diagram looks like this:

Parameters:

Name	Type	Description	Default
measure_duration	float	How long a single measurement takes (seconds)	required

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def __init__(self, measure_duration: float) -> None:
    """Create a new OPUSStateMachine.

    The state diagram looks like this:

    ![](../../../../../OPUSStateMachine.png)

    Args:
        measure_duration: How long a single measurement takes (seconds)
    """
    self.measure_timer = QTimer()
    """Timer signalling the end of a measurement."""
    self.measure_timer.setInterval(round(measure_duration * 1000))
    self.measure_timer.setSingleShot(True)
    self.measure_timer.timeout.connect(self._on_measure_finished)

    super().__init__()

Attributes

measure_timer = QTimer() instance-attribute

Timer signalling the end of a measurement.

Functions

connect()

Connect to the device.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def connect(self) -> None:
    """Connect to the device."""
    self._start_connecting()
    self._finish_connecting()

on_enter_measuring()

Start the measurement timer.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def on_enter_measuring(self) -> None:
    """Start the measurement timer."""
    self.measure_timer.start()

on_exit_measuring()

Stop the measurement timer.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def on_exit_measuring(self) -> None:
    """Stop the measurement timer."""
    self.measure_timer.stop()

stop()

Stop the current measurement.

Source code in frog/hardware/plugins/spectrometer/dummy_opus_interface.py

def stop(self) -> None:
    """Stop the current measurement."""
    self._cancel_measuring()
    self._reset_after_cancelling()
    logging.info("Cancelling current measurement")
